Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

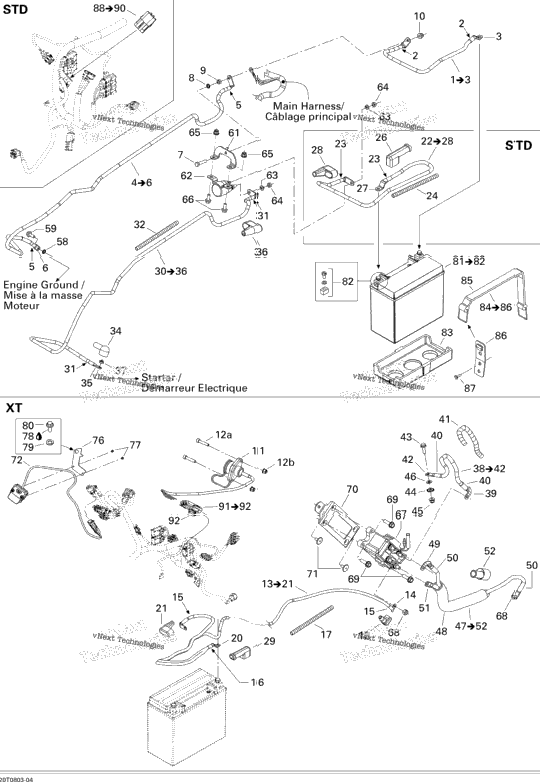

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710000830 | Battery/Frame Ground Cable Ass'y Includes 1 to 3 | 1 |
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 1 | 710000518 | Open Barrel | 1 |
| 1 | 710000844 | GROUND CABLE Includes 4 to 6 | 1 |
| 710000530 | Open Barrel | ||
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232061414 | Hex. Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 710001023 | Winch Connector | 1 |
| 2 | 205052588 | Socket Head Screw M5 X 25 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 1 | 710000843 | Positive Cable Includes 13 to 21 | 1 |
| 710000476 | OPEN BARREL, 6.6 MM | ||
| 275500578 | Shrink Tubing | ||
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 710000522 | PROTECTOR CAP | ||
| 1 | 710000519 | Open Barrel | 1 |
| 1 | 710000902 | Protector Cap | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 710000516 | Protector Cap | 1 |
| 1 | 710000903 | Positive Cable, Starter Relay/starter Includes 30 to 36 | 1 |
| 1 | 710000526 | Protector Cap | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 710000455 | NEGATIVE CABLE ASS'Y Includes 38 to 42 | ||
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 224061121 | Flat Washer | 1 |
| 1 | 710001251 | WINCH CABLE ASS'Y Includes 47 to 52 | 1 |
| 1 | 219704398 | Was 409901600 Tubing 19mm | 1 |
| 1 | 515175919 | Protector Cap | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 705201325 | Starter Relay Support | 1 |
| 1 | 515176011 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 2 | 233061414 | Hex. Flange Nut M6 | 2 |
| 2 | 207661244 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 710001000 | Winch Solenoid | 1 |
| 6 | 232561414 | Elastic Stop Nut M6 | 6 |
| 4 | 210262080 | Hex. Forming Screw M6 X 20 | 4 |
| 1 | 710001261 | Relay Support | 1 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 710001001 | WINCH INTERRUPTER | ||
| 1 | 710000755 | WINCH INTERRUPTER SUPPORT | 1 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 234101601 | Helicoidal Lock Washer M10 | 1 |
| 1 | 250000029 | HEX. SCREW M10 X 16 | 1 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 81 to 82 | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 710000279 | INSULATOR PAD | 1 |
| 710001033 | Strap Ass'y Includes 84 to 86 | ||
| 1 | 293850097 | Retainer Strap | 1 |
| 1 | 293850030 | Strap Clip | 1 |
| 1 | 710001059 | Connector Ass'y Includes 91 to 92 | 1 |
| 1 | 710000992 | Clip | 1 |
