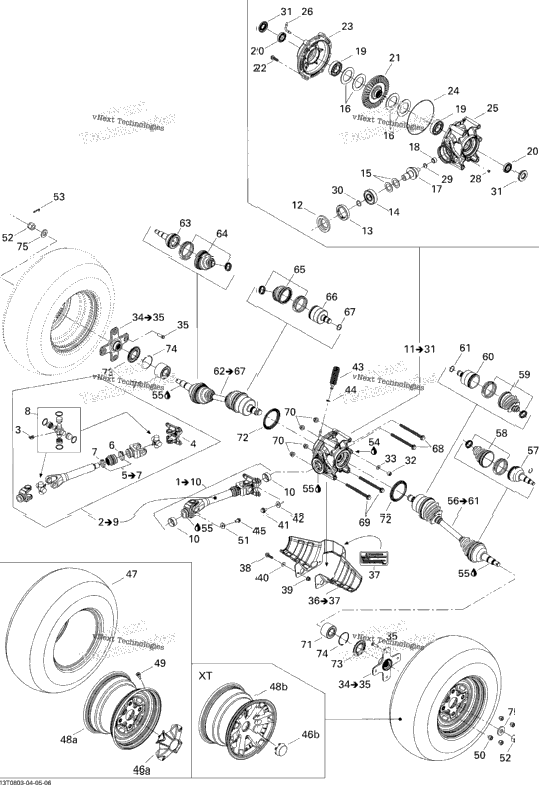

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703500707 | Rear Drive Shaft Ass'y Includes 1 to 10 | 1 |
| 1 | 703500707 | Rear Drive Shaft Ass'y Includes 2 to 9 | 1 |
| 715900067 | GREASE FITTING | ||
| 705500351 | DISC JOINT | ||
| 703500255 | Rubber Boot Kit Includes 5 to 7 | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 705400148 | Collar | ||
| 1 | 703000024 | Unit Pack Kit | 1 |
| 2 | 705400036 | Wear Ring | 2 |
| 705500891 | Differential Includes 11 to 31 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500905 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500548 | Differential Shim Kit | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500749 | Ball Bearing | 2 |
| 705500750 | BALL BEARING | ||
| 705500775 | GEAR, 36 TOOTH | ||
| 4 | 705500892 | SCREW | 4 |
| 1 | 705500697 | REAR DIFFERENTIAL COVER | 1 |
| 1 | 705500265 | Seal | 1 |
| 705500843 | Rear Cover | ||
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500751 | Oil Seal | 2 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 705500909 | WHEEL HUB ASS'Y Includes 34 to 35 | ||
| 4 | 250300034 | Wheel Stud | 4 |
| 1 | 703500289 | Protector Kit Includes 36 to 37 | 1 |
| 704900009 | WARNING DECAL, TRAILER | ||
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 391302000 | Flat Washer | 4 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 705400563 | Wheel Cap STD | 2 |
| 705500441 | Rear Tire STD | ||
| 1 | 705500934 | Rear Tire STD EUR | 1 |
| 1 | 705500875 | Rear Rim STD | 1 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 8 | 250100042 | Steel Wheel Nut STD | 8 |
| 1 | 211200041 | Washer | 1 |
| 2 | 232291413 | Hex. Flange Castellated Nut M18 | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 705500738 | LH CV Joint Includes 56 to 61 | ||
| 1 | 705500701 | CV JOINT | 1 |
| 705500469 | BOOT WHEEL KIT | ||
| 1 | 705500428 | Boot Kit | 1 |
| 1 | 705500784 | PLUNGING JOINT | 1 |
| 1 | 705500845 | CIRCLIP | 1 |
| 705500739 | RH CV Joint Includes 62 to 67 | ||
| 3 | 230603046 | Hex. Flange Screw, M10 X 130 | 3 |
| 1 | 230603546 | Hex. Flange Screw M10 X 135 | 1 |
| 4 | 233201416 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 705500901 | WEAR SLEEVE | 2 |
| 2 | 705500899 | Wear Sleeve | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200049 | Spring Washer | 2 |
