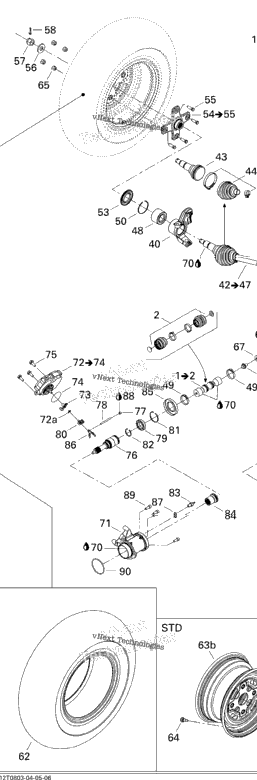

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400337 | Front Drive Axle Ass'y Include 1 to 2 | 1 |
| 703500255 | Rubber Boot Kit | ||
| 1 | 705400149 | Coupling Sleeve | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705400574 | Front Differential Ass'y Includes 8 to 31 | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500789 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400407 | Differential | 1 |
| 1 | 705400192 | GEAR, 36 TEETH | 1 |
| 8 | 705400101 | RING GEAR SCREW | 8 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705400297 | Front Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 705400299 | Front Cover, Pinion | ||
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400508 | RH CV Joint Includes 34 to 39 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705400511 | Wheel Boot Kit | 1 |
| 1 | 293650192 | OETIKER CLAMP 23MM | 1 |
| 1 | 293650194 | OETIKER CLAMP 70MM | 1 |
| 1 | 705400512 | Differential Boot Kit | 1 |
| 1 | 293650193 | OETIKER CLAMP 67MM | 1 |
| 705400513 | RH Plunging Joint | ||
| 1 | 705400042 | CIRCLIP | 1 |
| 1 | 705400341 | LH Knuckle | 1 |
| 1 | 705400345 | RH Knuckle | 1 |
| 1 | 705400510 | LH CV Joint Includes 42 to 47 | 1 |
| 705400514 | LH Plunging Joint | ||
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 705500899 | Wear Sleeve | 2 |
| 2 | 705400591 | Wheel Hub Ass'y Includes 54 to 55 | 2 |
| 4 | 250300034 | Wheel Stud | 4 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 705400563 | Wheel Cap STD | 2 |
| 705400213 | Front Tire STD | ||
| 1 | 705400607 | Front Tire STD Europe | 1 |
| 1 | 705400558 | Front Rim STD | 1 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 8 | 250100042 | Steel Wheel Nut STD | 8 |
| 2 | 705400578 | Wear Sleeve | 2 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 705400169 | HOUSING | ||
| 1 | 705400581 | Actuator Ass'y Includes 72 to 74 | 1 |
| 1 | 415129176 | Circlip | 1 |
| 1 | 705400274 | Fork | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 705400172 | Union Shaft | 1 |
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705400538 | Slider | 1 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 1 | 710000324 | SWITCH | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 1 | 293250138 | Oil Seal | 1 |
| 1 | 705400387 | Shifter Plate | 1 |
| 1 | 705600310 | Copper Washer | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 1 | 293300091 | O-Ring | 1 |
