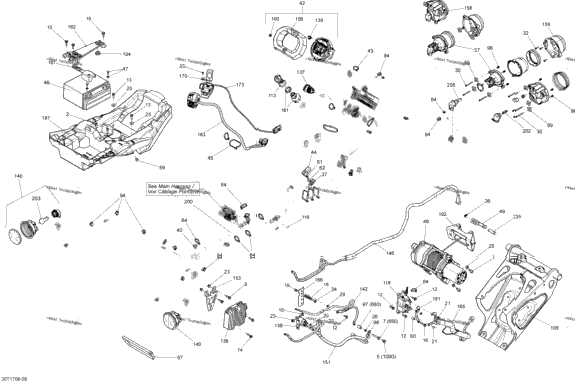

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 205082044 | Socket Head Screw M8 X 20 | 4 |
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 2 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 207663034 | Hex. Flange Screw M6 X 30 | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 210262040 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 210262080 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 2 |
| 1 | 210264040 | Hex. Flange Screw M6 X 40 | 1 |
| 4 | 224061121 | Flat Washer | 4 |
| 1 | 224061121 | Flat Washer | 1 |
| 1 | 232361493 | Domed Nut M6 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 6 | 232561434 | Elastic Stop Nut M6 | 6 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 4 | 234181401 | Lock Washer 8 mm | 4 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 12 | 250000718 | Hex. Screw K40 X 45 | 12 |
| 6 | 250000723 | Phillips Screw K40 X 16 | 6 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" | 2 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 250400021 | Clevis Pin | 1 |
| 1 | 250400022 | Cotter Pin | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 710003923 | Speedometer Ass'y | 1 |
| 1 | 415129320 | Lens | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 710003006 | Housing | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 410301203 | Battery YUASA YTX20L | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 705008546 | WINCH | ||
| 1 | 705002329 | Hook | 1 |
| 1 | 293750041 | Tie-rap 627 mm Model-North America | 1 |
| 3 | 293830005 | Rubber Bumper | 3 |
| 1 | 293900078 | Sleeve | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414227300 | Clip | 1 |
| 12 | 517168600 | Spring | 12 |
| 1 | 517203200 | Spacer Model-650 | 1 |
| 1 | 518321570 | Open Clamp | 1 |
| 12 | 572106600 | Handle | 12 |
| 1 | 704904615 | BRP Logo13 mm | 1 |
| 1 | 715000011 | Winch Roller | 1 |
| 1 | 705003666 | Rubber Grommet | 1 |
| 705004165 | Front Bumper Support | ||
| 1 | 710004964 | Grey Key RFID Except T3 | 1 |
| 1 | 710002183 | Grey, Electronic Key T3 | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710001000 | Winch Solenoid | 1 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 1 | 710001473 | Button | 1 |
| 2 | 710001645 | Tail Light Ass'y Model-OUTLANDER | 2 |
| 1 | 710004183 | Ground Cable | 1 |
| 1 | 710001748 | Battery Positive Cable | 1 |
| 1 | 710001750 | POSITIVE CABLE | 1 |
| 1 | 710001752 | Rectifier Support | 1 |
| 1 | 710002092 | Trim Ring | 1 |
| 2 | 710002191 | Low Beam | 2 |
| 1 | 710002291 | RH High Front Housing | 1 |
| 1 | 710002292 | LH High Front Housing | 1 |
| 1 | 710003847 | Ignition Switch Except T3 | 1 |
| 1 | 710004570 | Ignition Switch T3 | 1 |
| 1 | 710002404 | Fixation Plate | 1 |
| 1 | 710002560 | Winch Cables | 1 |
| 1 | 710004118 | Connector Bracket | 1 |
| 1 | 710002569 | Cap | 1 |
| 1 | 710002631 | Winch Switch Support | 1 |
| 1 | 710002724 | Winch Switch | 1 |
| 1 | 710003003 | CABLE_NEGATIVE | 1 |
| 1 | 710005070 | Multi-Function Handle Except T3 | 1 |
| 1 | 710004040 | Multi-Function Handle T3 | 1 |
| 1 | 710003990 | Battery Tray | 1 |
| 1 | 710005036 | Main Harness Except T3 | 1 |
| 1 | 710005005 | Main Harness T3 | 1 |
| 1 | 715900141 | Bulb 12V 55W | 1 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 415129249 | Halogen Bulb | 1 |
