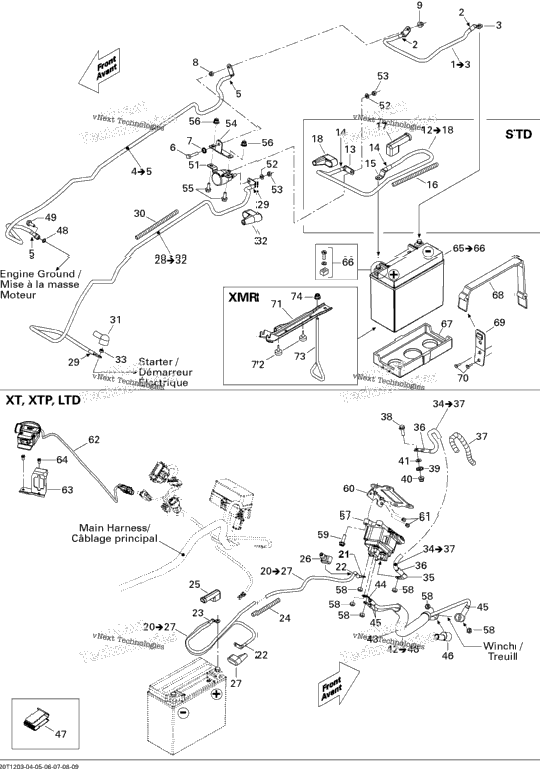

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710000830 | Battery/Frame Ground Cable Ass'y Includes 1 to 3 | 1 |
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 1 | 710000518 | Open Barrel | 1 |
| 1 | 710000831 | GROUND CABLE ASS'Y Includes 4 to 5 | 1 |
| XXX | Not Available As Spare Parts MAX, XMR, Includes 4 to 5 | ||
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232061414 | Hex. Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 710001822 | Positive Cable Ass'y STD, Includes 12 to 18 | 1 |
| XXXX | Not Available As Spare Part - Open Barrel | ||
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 1 | 710001829 | Protector Cap | 1 |
| 1 | 710001817 | Protector Cap | 1 |
| 1 | 710001823 | POSITIVE CABLE ASS'Y XT, Includes 20 to 27 | 1 |
| XXX | Not Available As Spare Parts MAX XT, XTP, XMR, , LTD, Includes 20 to 27 | ||
| 710000476 | OPEN BARREL, 6.6 MM | ||
| 275500578 | Shrink Tubing | ||
| 710001828 | PROTECTOR CAP | ||
| 1 | 710001818 | POSITIVE CABLE ASS'Y Includes 28 to 32 | 1 |
| XXX | Not Available As Spare Parts XMR, Includes 28 to 32 | ||
| 1 | 710000526 | Protector Cap | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 710000455 | NEGATIVE CABLE ASS'Y XT, XTP, XMR, LTD, Includes 34 to 37 | ||
| 1 | 207662044 | Hex. Flange Screw M6 X 20 XT, XTP, XMR, LTD, | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 XT, XTP, XMR, LTD, | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 XT, XTP, XMR, LTD, | 1 |
| 1 | 224061121 | Flat Washer XT, XTP, XMR, LTD, | 1 |
| 1 | 710001615 | WINCH CABLE ASS'Y XT, XTP, XMR, LTD, Includes 42 to 46 | 1 |
| 1 | 219704398 | Was 409901600 Tubing 19mm | 1 |
| 1 | 515175919 | Protector Cap | 1 |
| 1 | 710000992 | Clip XT, XTP, XMR, LTD, | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 710001260 | SOLENOID SUPPORT | 1 |
| 2 | 207661244 | Hex. Flange Screw M6 X 12 | 2 |
| 2 | 233061414 | Hex. Flange Nut M6 | 2 |
| 1 | 710001000 | Winch Solenoid XT, XTP, XMR, LTD, | 1 |
| 6 | 232561434 | Elastic Stop Nut M6 XT, XTP, XMR, LTD, | 6 |
| 4 | 210262080 | Hex. Forming Screw M6 X 20 XT, XTP, XMR, LTD, | 4 |
| 1 | 710001596 | BRACKET WINCH RELAY XT, XTP, XMR, LTD, | 1 |
| 2 | 390406500 | Pop Rivet 3/16" XT, XTP, XMR, LTD, | 2 |
| 1 | 710002724 | Winch Switch XT, XTP, XMR, LTD, | 1 |
| 1 | 710002631 | Winch Switch Support XT, XTP, XMR, LTD, | 1 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" XT, XTP, XMR, LTD, | 2 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 65 to 66 | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 710000279 | INSULATOR PAD | 1 |
| 1 | 293850097 | Retainer Strap | 1 |
| 1 | 293850030 | Strap Clip | 1 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| XXX | Not Available As Spare Parts XMR |
