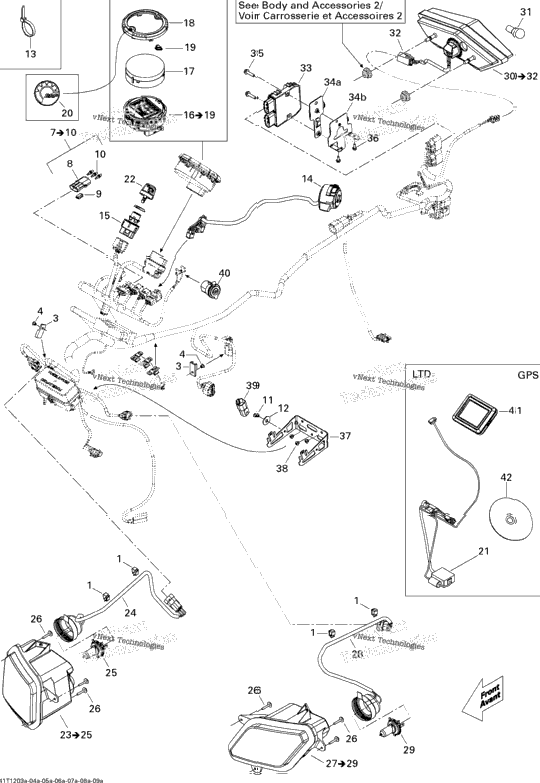

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 414227300 | Clip | 4 |
| 1 | 515175283 | Housing Support Europe | 1 |
| 3 | 515175283 | Housing Support | 3 |
| 2 | 270000141 | Clip | 2 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 2 | 710000917 | Connector Ass'y Includes 7 to 10 | 2 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 517124300 | Washer | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750041 | Tie-rap 627 mm | 1 |
| 1 | 710002884 | Multi-Fonction Handle STD | 1 |
| 1 | 710002883 | Multi-fonction Handle XT, XTP, XMR, LTD | 1 |
| 1 | 710002749 | Multi-Function Handle Europe | 1 |
| 1 | 710002324 | Ignition Switch | 1 |
| 1 | 710001978 | Speedometer Ass'y Includes 16 to 19 | 1 |
| 1 | 415129320 | Lens | 1 |
| 1 | 710001416 | Trim Ring | 1 |
| 1 | 710001473 | Button | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| XXX | Not Available As Spare Parts LTD | ||
| 1 | 710000817 | Black, Electronic Key | 1 |
| 2 | 710000817 | Black, Electronic Key Europe | 2 |
| 1 | 710001496 | RH Headlamp Ass'y Includes 23 to 25 | 1 |
| 1 | 710000861 | RH Headlamp Ass'y Europe, Includes 23 to 25 | 1 |
| 1 | 710000923 | Headlamp Harness | 1 |
| 1 | 710000871 | Bulb, 12V 35/35W | 1 |
| 6 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 6 |
| 1 | 710001497 | LH Headlamp Ass'y Includes 27 to 29 | 1 |
| 1 | 710000862 | LH Headlamp Ass'y Europe, Includes 27 to 29 | 1 |
| 1 | 710001203 | Tail Light Housing Ass'y Includes 30 to 32 | 1 |
| 1 | 710001204 | Tail Light Housing Ass'y Europe, Includes 30 to 32 | 1 |
| 1 | 410504100 | Bulb | 1 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 710001103 | Voltage Regulator STD | 1 |
| 1 | 710001191 | Voltage Regulator XT, XTP, XMR, LTD | 1 |
| 710001262 | RECTIFIER SUPPORT STD | ||
| 1 | 710001572 | RECTIFIER SUPPORT XT, XTP, XMR, LTD | 1 |
| 2 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 2 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 XT, XTP, XMR, LTD | 2 |
| 1 | 710002176 | FUSE SUPPORT | 1 |
| 3 | 390402400 | Pop Rivet 3/16" | 3 |
| 1 | 278002148 | Diagnostic Connector Cap | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| XXX | Not Available As Spare Parts LTD North America | ||
| XXX | Not Available As Spare Parts LTD, International & Europe | ||
| XXX | Not Available As Spare Parts LTD, Europe |
