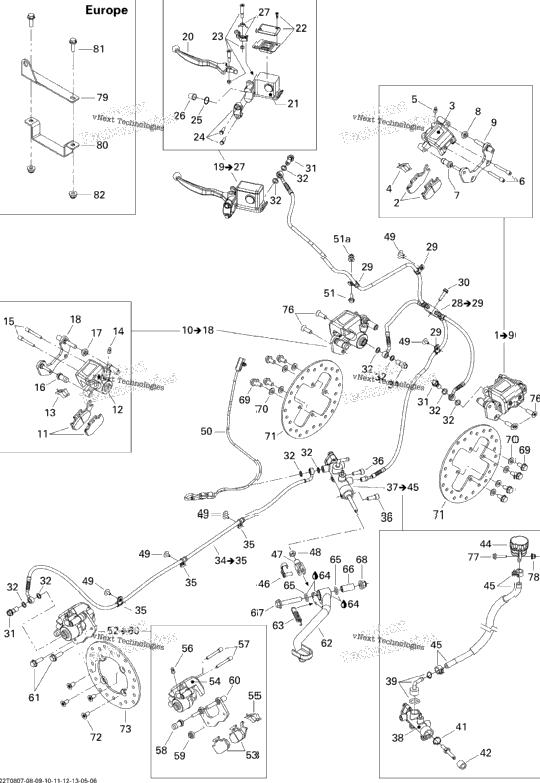

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600575 | RH Caliper Includes 1 to 9 | 1 |
| 1 | 705600350 | Brake Pad Kit | 1 |
| 1 | 705600078 | Piston Set | 1 |
| 1 | 705600079 | Spring | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705600082 | Compression Boot | 1 |
| 1 | 705600083 | Compression Boot | 1 |
| XXXX | Not Available As Spare Part - RH Caliper Support | ||
| 1 | 705600576 | LH Caliper Includes 10 to 18 | 1 |
| 1 | 705600349 | Brake Pad Kit | 1 |
| 705600297 | LH Caliper Support | ||
| 1 | 705600578 | Master Cylinder Includes 19 to 27 | 1 |
| 1 | 705600243 | Lever Arm | 1 |
| 705600244 | PISTON KIT | ||
| 1 | 705600084 | Cap Set | 1 |
| 1 | 705600246 | Brake Lever Bolt Kit | 1 |
| 705600087 | BRACKET KIT | ||
| 705600088 | CIRCLIP | ||
| 1 | 705600089 | COMPRESSION BOOT | 1 |
| 1 | 705600477 | PARKING KIT, BRAKE LEVER LOCK | 1 |
| 1 | 705600579 | Front Hose Includes 28 to 29 | 1 |
| 3 | 705600459 | Clamp | 3 |
| 1 | 210262080 | Hex. Forming Screw M6 X 20 | 1 |
| 4 | 705600396 | Banjo Bolt | 4 |
| 10 | 705600310 | Copper Washer | 10 |
| 1 | 705600580 | Rear Hose Includes 34 to 35 | 1 |
| 2 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 2 |
| 705600543 | MASTER CYLINDER Includes 37 to 45 | ||
| 1 | 705600255 | Piston Set | 1 |
| 1 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR | 1 |
| 705600068 | Circlip | ||
| 705600090 | Compression Boot | ||
| 1 | 705600182 | Oil Tank, Brake Fluid Reservoir | 1 |
| 1 | 705600262 | OIL HOUSING HOSE | 1 |
| 1 | 250400007 | Pin | 1 |
| 705600100 | Yoke | ||
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 5 | 390406500 | Pop Rivet 3/16" | 5 |
| 1 | 710000853 | Brake Switch | 1 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 705600577 | Rear Caliper Includes 52 to 60 | 1 |
| 1 | 705600398 | LH Brake Pad Kit | 1 |
| 705600399 | Piston Set | ||
| 705600298 | LH CALIPER SUPPORT | ||
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 705600555 | Brake Pedal, Black | 1 |
| 1 | 705600098 | BREAK PEDAL SPRING | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 293300053 | O-RING | 2 |
| 1 | 705600283 | SPACER | 1 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 8 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 8 |
| 8 | 234281474 | Conical Spring Washer M8 | 8 |
| 2 | 705600279 | Front Brake Disc | 2 |
| 4 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 4 |
| 1 | 705600271 | Brake Disc | 1 |
| 4 | 250000143 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 705201540 | Support Europe | ||
| 1 | 705000416 | BRACKET Europe | 1 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 Europe | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 Europe | 2 |
