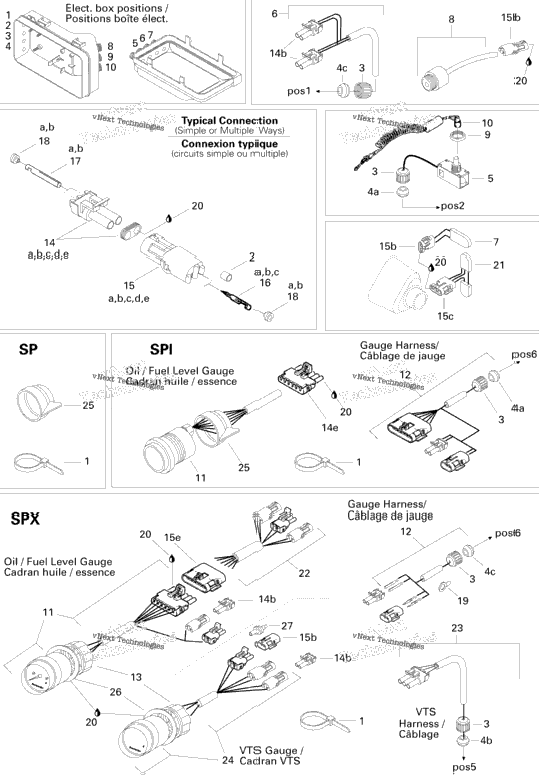

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 278000231 | Insulation Sheath | 1 |
| 278000100 | Electric Wire Cap | ||
| 293720025 | GROMMET, 2 CIRCUIT, GRAY | ||
| 278000193 | GROMMET, 3 CIRCUIT, BLACK | ||
| 570026800 | Grommet, 4 Circuit, Red | ||
| 1 | 278000555 | Safety Switch (Incl. 3,4a) | 1 |
| 278000420 | Buzzer-On/Off Switch Harness Includes 2,3,4c,14b,16c,17b,18a | ||
| 1 | 278000427 | SWITCH-IGNIT. Includes 16b,18a | 1 |
| 278000881 | BUZZER ASS?Y | ||
| 278000099 | Safety Switch Nut | ||
| 1 | 295500341 | Safety Landyard | 1 |
| 278000502 | Oil / Fuel Level Gauge Includes 14b,14e,15b,16b,17b,18b | ||
| 278000749 | Harness Gauge (Oil /Fuel) Includes 2,3,4c,16b,16c,17b,18a,19 | ||
| 278000085 | Gauge Nut | ||
| 278000219 | MALE HOUSING, 1 CIRCUIT | ||
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 278000156 | FEMALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 409007300 | Female Terminal | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 278000585 | Wire Seal (20 Gauge) (Purple) (Packard) | 1 |
| 278000300 | Ring Terminal | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278000447 | VTS Switch Ass'y Includes 16b,18a | ||
| 278000589 | 6 Ways Harness (Gauge) Includes 14b,15b,16b,17b,18a | ||
| 278000779 | Harness VTS Includes 2,3,4b,14c,16c,17b,18a | ||
| 278000451 | VTS Gauge Includes 14b,15b,16b,17b,18a | ||
| XXX | Not Available As Spare Parts | ||
| 278000259 | Gasket | ||
| 1 | 278000216 | Wire Seal | 1 |
