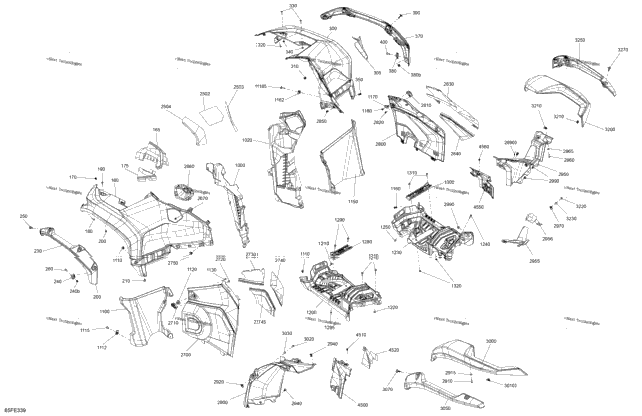

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705019212 | LH Front Heat Shield | 1 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 705019312 | Heat Shield | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 250001257 | Screw Torx M6 X 20 | 2 |
| 2 | 233161414 | Hex. Flange Nut M6 | 2 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 705014662 | Deep Black, LH Front Fender Trim | 1 |
| 1 | 705015097 | Trim Support Ass'y Includes 240 to 240b | 1 |
| 1 | 250100199 | Insert Half Hex Body M6 x 1.0 | 1 |
| 4 | 250000907 | Torx Screw Truss Head PT.K50 X 25 | 4 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 715010470 | Wildland Camo, RH Front Fender Kit | 1 |
| 1 | 705019385 | RH Front Heat Shield | 1 |
| 3 | 517302785 | Edge Clip | 3 |
| 1 | 705014663 | Deep Black, RH Front Fender Trim | 1 |
| 1 | 705015097 | Trim Support Ass'y Includes 380 to 380b | 1 |
| 1 | 705018011 | LH Front Wheel Arch Protector | 1 |
| 1 | 705017606 | RH Front Wheel Arch Protector | 1 |
| 1 | 705017657 | LH Upper Footstep | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 517305985 | Rear Stud | 1 |
| 1 | 250000725 | Screw M4 X 16 | 1 |
| 1 | 705017659 | RH Upper Footstep | 1 |
| 1 | 705014262 | LH Footboard | 1 |
| 5 | 250000841 | Hex Flange Screw M6 X 25 | 5 |
| 5 | 234062670 | Stainless Steel Flat Washer | 5 |
| 1 | 705014263 | RH Footboard | 1 |
| 1 | 705013651 | Footrest | 1 |
| 2 | 250000841 | Hex Flange Screw M6 X 25 | 2 |
| 1 | 705019323 | Central Heat Shield | 1 |
| 1 | 705019370 | Rear Central Heat Shield | 1 |
| 1 | 705019324 | LH Central Heat Shield | 1 |
| 1 | 705014661 | Switch Support | 1 |
| 1 | 250100163 | Pressure Nut | 1 |
| 1 | 715010425 | Wildland Camo, LH Front Fender Kit | 1 |
| 1 | 705015792 | LH Central Panel | 1 |
| 1 | 517305774 | LH Rear Latch | 1 |
| 1 | 705018927 | LH Front Heat Shield | 1 |
| 1 | 705019071 | LH Rear Heat Shield | 1 |
| 1 | 705019156 | LH Lower Heat Shield | 1 |
| 1 | 517306478 | Clip | 1 |
| 1 | 705015793 | RH Central Panel | 1 |
| 1 | 517305773 | RH Rear Latch | 1 |
| 1 | 705018928 | RH Upper Heat Shield | 1 |
| 1 | 705019072 | RH Lower Heat Shield | 1 |
| 1 | 715010496 | LH Rear Fender Support Kit | 1 |
| 1 | 250001000 | Torx-Truss M/S M6 X 25 | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 1 | 705014734 | RH Rear Fender Support | 1 |
| 1 | 705018605 | Heat Shield | 1 |
| 1 | 705018563 | Heat Shield | 1 |
| 1 | 705017163 | Wildland Camo, LH Rear Fender | 1 |
| 4 | 250100198 | Panel Nut M6 X 1.0 | 4 |
| 1 | 250001257 | Screw Torx M6 X 20 | 1 |
| 1 | 705014664 | Deep Black, LH Rear Fender Trim | 1 |
| 3 | 250000907 | Torx Screw Truss Head PT.K50 X 25 | 3 |
| 1 | 705017164 | Wildland Camo, RH Rear Fender | 1 |
| 1 | 705014665 | Deep Black, RH Rear Fender Trim | 1 |
| 1 | 705013653 | LH Extension Panel | 1 |
| 1 | 705019157 | LH Ext Heat Shield | 1 |
| 1 | 705013654 | RH Extension Panel | 1 |
