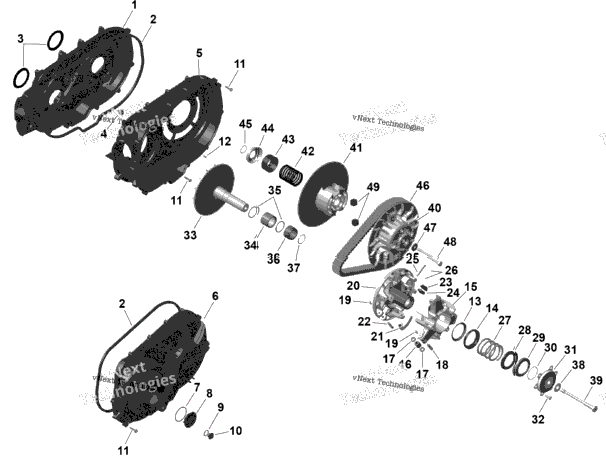

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420212701 | CVT Air Guide | 1 |
| 2 | 420250614 | Gasket Included in engine gasket set | 2 |
| 2 | 420250615 | Gasket Included in engine gasket set | 2 |
| 8 | 420440497 | Distance Screw M6 | 8 |
| 1 | 420212735 | Variator Air Cover | 1 |
| 1 | 420212714 | Variator Cover Ass'y Includes no. 6-10 | 1 |
| 1 | 420250054 | O-Ring Included in engine gasket set | 1 |
| 1 | 420441826 | Bayonet Cap | 1 |
| 1 | 420250062 | O-Ring Included in engine gasket set | 1 |
| 1 | 420441821 | Bayonet Cap Ass'y | 1 |
| 25 | 420441575 | Torx Screw 6X30 | 25 |
| 1 | 420640086 | Torx Screw M5 X 12 | 1 |
| 420427352 | Stopper Spring | ||
| 1 | 420427801 | Spring Support | 1 |
| 1 | 420686903 | P-Drive Pulley Ass'y | 1 |
| 1 | 420280761 | Governor Cup Ass'y | 1 |
| 1 | 417224204 | Axle - 10mm Includes no. 16-19 | 1 |
| 3 | 420629239 | Pulley Roller Ass'y | 3 |
| 6 | 420626233 | Thrust Washer | 6 |
| 420233902 | Bearing Sleeve 10x41 | ||
| 420841081 | Torx Flange Screw M5 X 14 T25 | ||
| 1 | 420280836 | Outer Half Ass'y Includes 20 and 22-26 | 1 |
| 3 | 420248738 | Roller Lever Ass'y | 3 |
| 420233904 | Pin Ramp | ||
| 1 | 420629224 | Roller Set Includes 23-26 | 1 |
| 3 | 420629222 | Ext Roller Pulley | 3 |
| 420233899 | Pin | ||
| 250700074 | Dowel 2.6x20.5 | ||
| 1 | 420638133 | Compression Spring, Drive Pulley | 1 |
| 1 | 420427809 | Spring Support | 1 |
| 1 | 420427354 | Seat Spring | 1 |
| 1 | 293370116 | Circlip | 1 |
| 1 | 420280275 | Governor Cup Torque Flange | 1 |
| 6 | 420841085 | Hex Screw M8 X 2 | 6 |
| 1 | 420280809 | Inner Half Ass'y | 1 |
| 1 | 420832351 | Needle Roller Bearing With Sleeves | 1 |
| 2 | 420427220 | Washer | 2 |
| 1 | 420660284 | Stop Sleeve | 1 |
| 1 | 420845741 | Retaining Ring 35 x 1.5 | 1 |
| 1 | 420245690 | Washer | 1 |
| 1 | 420841161 | Hexagonal Screw M14X 165 | 1 |
| 1 | 420280794 | Outer Half Pulley Ass'y Includes no. 40 and 49 | 1 |
| 1 | 420280784 | Sliding Pulley Ass'y | 1 |
| 1 | 420238186 | Compression Spring | 1 |
| 1 | 420427323 | Spring Support | 1 |
| 1 | 420427332 | Holding Strip | 1 |
| 1 | 420245945 | Retaining Ring 32.8 | 1 |
| 1 | 420280225 | V-Belt | 1 |
| 1 | 420627695 | Thrust Washer | 1 |
| 1 | 420441485 | Hex. Screw M10 X 110 | 1 |
| 2 | 420229582 | Roller Thrust | 2 |
