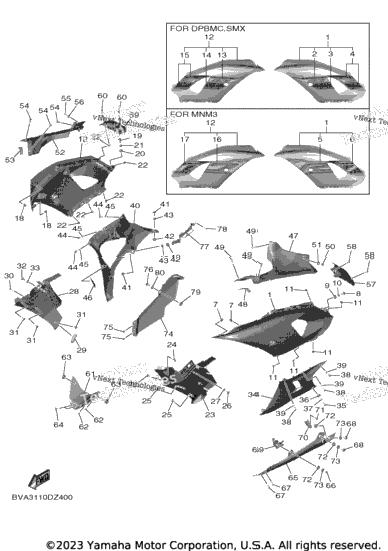

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | BEB-W283U-40-P0 | Panel Assy 1 UR FOR DPBMC | 1 |
| 0 | BEB-W283U-50-P2 | Panel Assy 1 UR FOR SMX | 0 |
| 0 | BEB-W283U-60-P3 | Panel Assy 1 UR FOR MNM3 | 0 |
| 1 | BVA-28391-00-00 | . . Graphic 1 UR FOR DPBMC | 1 |
| 0 | BVA-28391-10-00 | . . Graphic 1 UR FOR SMX | 0 |
| 1 | BVA-28393-00-00 | . . Graphic 3 UR FOR DPBMC | 1 |
| 0 | BVA-28393-10-00 | . . Graphic 3 UR FOR SMX | 0 |
| 1 | BVA-28398-00-00 | . . Graphic 5 UR FOR DPBMC | 1 |
| 0 | BVA-28398-10-00 | . . Graphic 5 UR FOR SMX | 0 |
| 0 | BVA-28391-20-00 | . . Graphic 1 FOR MNM3 | 0 |
| 0 | BVA-28393-20-00 | . . Graphic 3 FOR MNM3 | 0 |
| 2 | 90464-07018-00 | Clamp | 2 |
| 1 | 90111-06040-00 | Bolt, Hexagon Socket Button | 1 |
| 1 | 90480-14003-00 | Grommet | 1 |
| 1 | 90387-06260-00 | Collar | 1 |
| 5 | 90183-05042-00 | Nut, Spring | 5 |
| 1 | BEB-W283V-40-P0 | Panel Assy 2 UR FOR DPBMC | 1 |
| 0 | BEB-W283V-50-P2 | Panel Assy 2 UR FOR SMX | 0 |
| 0 | BEB-W283V-60-P3 | Panel Assy 2 UR FOR MNM3 | 0 |
| 1 | BVA-28392-00-00 | . . Graphic 2 UR FOR DPBMC | 1 |
| 0 | BVA-28392-10-00 | . . Graphic 2 UR FOR SMX | 0 |
| 1 | BVA-28394-00-00 | . . Graphic 4 UR FOR DPBMC | 1 |
| 0 | BVA-28394-10-00 | . . Graphic 4 UR FOR SMX | 0 |
| 1 | BVA-28399-00-00 | . . Graphic 6 UR FOR DPBMC | 1 |
| 0 | BVA-28399-10-00 | . . Graphic 6 UR FOR SMX | 0 |
| 0 | BVA-28392-20-00 | . . Graphic 2 FOR MNM3 | 0 |
| 0 | BVA-28394-20-00 | . . Graphic 4 FOR MNM3 | 0 |
| 1 | BEB-2836K-00-00 | Panel, Inner 1 | 1 |
| 1 | 90269-06008-00 | Rivet | 1 |
| 3 | 90269-06021-00 | Rivet | 3 |
| 2 | 90111-06116-00 | Bolt, Hexagon Socket Button | 2 |
| 2 | 90387-06130-00 | Collar | 2 |
| 1 | BEB-2836L-00-00 | Panel, Inner 2 | 1 |
| 1 | BEB-28227-00-00 | Damper 2 | 1 |
| 1 | BEB-2172G-00-P0 | Panel 3 UR FOR DPBMC | 1 |
| 0 | BEB-2172G-00-P2 | Panel 3 UR FOR SMX | 0 |
| 0 | BEB-2172G-00-P3 | Panel 3 UR FOR MNM3 | 0 |
| 3 | 90167-05076-00 | Screw, Tapping | 3 |
| 3 | 90202-05088-00 | Washer, Plate | 3 |
| 1 | BEB-2172H-00-P0 | Panel 4 UR FOR DPBMC | 1 |
| 0 | BEB-2172H-00-P2 | Panel 4 UR FOR SMX | 0 |
| 0 | BEB-2172H-00-P3 | Panel 4 UR FOR MNM3 | 0 |
| 2 | 90111-06040-00 | Bolt, Hexagon Socket Button | 2 |
| 2 | 90480-14003-00 | Grommet | 2 |
| 2 | 90387-06260-00 | Collar | 2 |
| 1 | BEB-2838G-00-00 | Seat 1 | 1 |
| 1 | BEB-2837L-00-P0 | Panel, Console 1 UR FOR DPBMC | 1 |
| 0 | BEB-2837L-00-P4 | Panel, Console 1 UR FOR SMX,MNM3 | 0 |
| 1 | 7NJ-14757-00-00 | Damper, Muffler 2 | 1 |
| 3 | 90269-06001-00 | Rivet | 3 |
| 1 | 90167-05076-00 | Screw, Tapping | 1 |
| 1 | 90202-05088-00 | Washer, Plate | 1 |
| 1 | BEB-2837M-00-P0 | Panel, Console 2 UR FOR DPBMC | 1 |
| 0 | BEB-2837M-00-P4 | Panel, Console 2 UR FOR SMX,MNM3 | 0 |
| 1 | BEB-28219-00-00 | Cover 1 | 1 |
| 2 | 90167-05080-00 | Screw, Tapping | 2 |
| 1 | BEB-28229-00-00 | Cover 2 | 1 |
| 1 | BEB-2836M-00-00 | Panel, Inner 3 | 1 |
| 4 | 90183-05042-00 | Nut, Spring | 4 |
| 2 | 90480-01559-00 | Grommet | 2 |
| 2 | 90269-06021-00 | Rivet | 2 |
| 1 | BEB-2834V-10-P3 | Protector 1 UR FOR DPBMC | 1 |
| 0 | BEB-2834V-10-P4 | Protector 1 UR FOR SMX | 0 |
| 0 | BEB-2834V-10-P5 | Protector 1 UR FOR MNM3 | 0 |
| 1 | 95707-06500-00 | Nut, Flange | 1 |
| 2 | 97707-50016-00 | .Screw, Truss Head Tapping | 2 |
| 1 | BEB-2836A-00-00 | Bracket 1 | 1 |
| 1 | BEB-2836E-00-00 | Bracket 2 | 1 |
| 1 | 95027-06016-00 | Bolt, Flange | 1 |
| 3 | 90480-14477-00 | Grommet | 3 |
| 3 | 90387-06323-00 | Collar | 3 |
| 1 | BEB-2834W-10-P3 | Protector 2 UR FOR DPBMC | 1 |
| 0 | BEB-2834W-10-P4 | Protector 2 UR FOR SMX | 0 |
| 0 | BEB-2834W-10-P5 | Protector 2 UR FOR MNM3 | 0 |
| 1 | BEB-2836F-00-00 | Bracket 3 | 1 |
| 1 | 90464-36005-00 | Clamp | 1 |
| 1 | 90480-14477-00 | Grommet | 1 |
| 1 | 90387-06323-00 | Collar | 1 |
