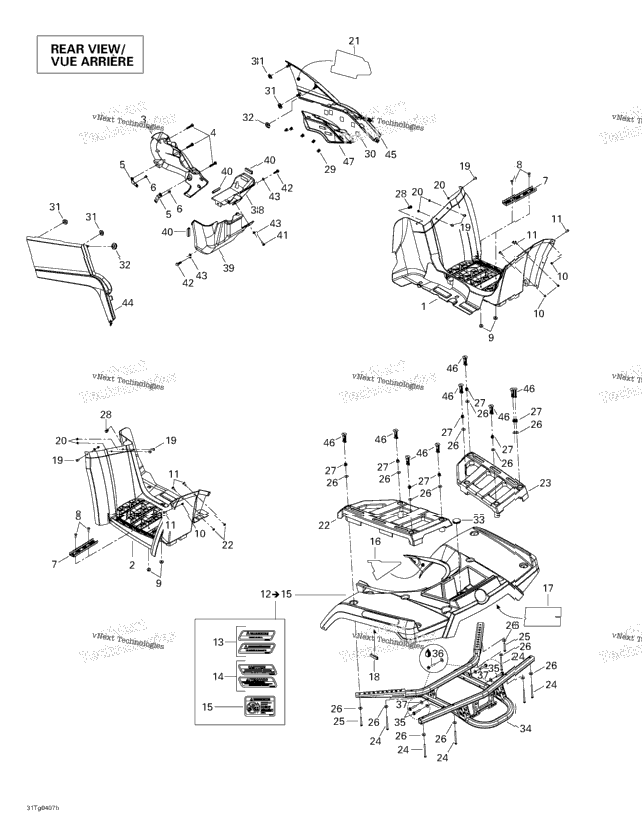

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705000738 | RH footboard GREEN - SANDSTONE XT 4 x 4 | ||
| 705000860 | RH footboard GREEN, RED, YELLOW, CAMO STD 4 x 4, XT 4 x 4 | ||
| 705000739 | LH footboard GREEN - SANDSTONE XT 4 x 4 | ||
| 705000862 | LH Footboard GREEN, RED, YELLOW, CAMO STD 4 x 4, XT 4 x 4 | ||
| 705000514 | Engine Cover | ||
| 3 | 210261280 | Hex. Flange Screw M6 X 12 | 3 |
| 2 | 705000657 | Engine Cover Support | 2 |
| 2 | 210261080 | Hex. Flange Screw M6 X 10 | 2 |
| 2 | 705000428 | Footrest | 2 |
| 4 | 207662584 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 6 |
| 211000121 | TRUSS PHILLIPS SCREW M6 X 16 | ||
| 703500272 | Rear Fender Kit, Red - Call Your Local BRP Dealership Includes 12 - 15. RED | ||
| 703500273 | Rear Fender Kit, Green GREEN / GREEN - SANDSTONE | ||
| 703500328 | Rear Fender Kit, Yellow YELLOW | ||
| 703500329 | Rear Fender Kit, Camo CAMO STD 4 x 4, XT 4 x 4 | ||
| 704900483 | Warning Decal,, Do Not Sit | ||
| 1 | 704900432 | Caution Decal, Rear Load | 1 |
| 1 | 704900005 | WARNING DECAL, PASSENGER | 1 |
| 704900006 | Warning Decal, Passenger, French | ||
| 705000714 | Reflective Sheet | ||
| 705000715 | Reflective Sheet | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 705000750 | REFLECTIVE SHEET | 1 |
| 1 | 705000434 | LH REAR LUGGAGE RACK | 1 |
| 1 | 705000435 | RH REAR LUGGAGE RACK | 1 |
| 207168044 | Hex. Screw M6 X 80 | ||
| 207165044 | HEX. SCREW M6 X 50 | ||
| 16 | 224061201 | Flat Washer | 16 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 5 | 517302785 | Edge Clip | 5 |
| 5 | 705000809 | Reflective Sheet | 5 |
| 4 | 705005156 | Oval Washer | 4 |
| 2 | 293720053 | Grommet | 2 |
| 570041600 | Rubber Cover | ||
| 705000890 | Rear Support COLOR | ||
| 705001129 | Rear Support CAMO STD 4 x 4, XT 4 x 4 | ||
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 705000554 | RH TANK PROTECTOR | ||
| 705000555 | LH Tank Protector | ||
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 3 | 391302000 | Flat Washer | 3 |
| 1 | 705000438 | LH Side Panel RED | 1 |
| 1 | 705000751 | LH Side Panel GREEN / GREEN - SANDSTONE | 1 |
| 1 | 705000863 | LH Side Panel YELLOW | 1 |
| 705000864 | LH Side Panel CAMO STD 4 x 4, XT 4 x 4 | ||
| 1 | 705000439 | RH Side Panel RED | 1 |
| 1 | 705000752 | RH Side Panel GREEN / GREEN - SANDSTONE | 1 |
| 1 | 705000865 | RH Side Panel YELLOW | 1 |
| 705000866 | RH Side Panel CAMO STD 4 x 4, XT 4 x 4 | ||
| 705000656 | Protection Plug | ||
| 705000689 | Muffler Cover |
