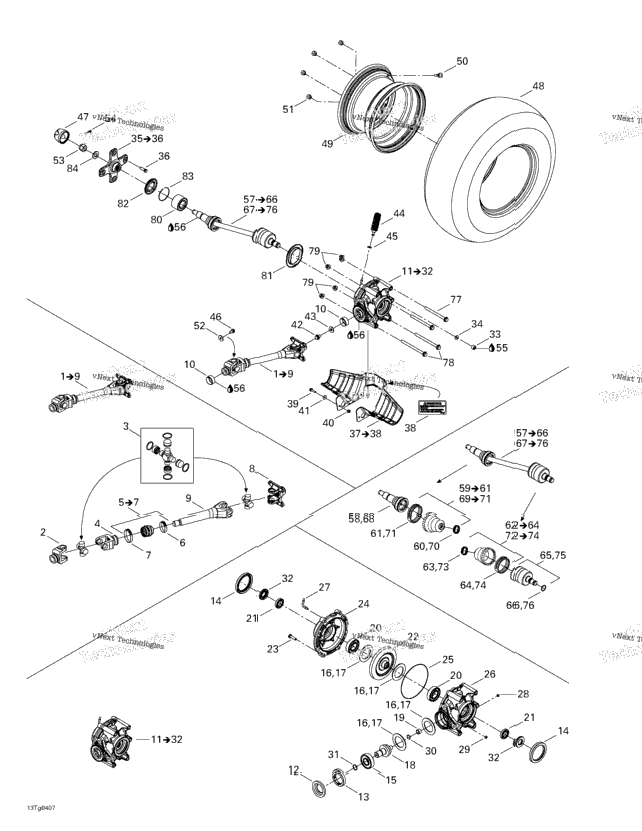

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705500353 | Drive Axle Ass'y Includes 1 - 9 | 1 |
| 1 | 705500348 | Fix Joint | 1 |
| 2 | 703500002 | Unit Pack Kit | 2 |
| XXXX | Not Available As Spare Part - Slip Joint | ||
| 703500255 | Rubber Boot Kit Includes 5 - 7. | ||
| 705400148 | Collar | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 705500351 | DISC JOINT | ||
| XXXX | Not Available As Spare Part - Axle | ||
| 2 | 705400036 | Wear Ring | 2 |
| 705500503 | Rear Differential Ass'y Includes 11 - 32. | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500266 | Nut | 1 |
| 2 | 293250139 | Oil Seal | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705500416 | GEAR, 36 TEETH | 1 |
| 4 | 705500264 | Screw | 4 |
| 705500326 | REAR COVER | ||
| 1 | 705500265 | Seal | 1 |
| 1 | 705500507 | PINION REAR COVER | 1 |
| 1 | 705500262 | Vent Valve | 1 |
| 705500516 | PROTECTION PLUG | ||
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 705500596 | WHEEL HUB ASS'Y Includes 35 - 36. | ||
| 8 | 250300020 | Wheel Stud | 8 |
| 1 | 703500289 | Protector Kit Includes 37 - 38. | 1 |
| 704900009 | WARNING DECAL, TRAILER | ||
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 391302000 | Flat Washer | 4 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 705400066 | Rubber Bellow | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 705400012 | WHEEL CAP | ||
| 705500441 | Rear Tire | ||
| 705500475 | Rear Rim CHROME OUTLANDER STD 4 x 4. OUTLANDER XT 4 x 4. | ||
| 2 | 705500495 | REAR RIM, BLACK BLACK OUTLANDER STD 4 x 4. OUTLANDER XT 4 x 4. | 2 |
| 2 | 705500366 | REAR RIM GREY | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 8 | 250100042 | Steel Wheel Nut | 8 |
| 1 | 211200041 | Washer | 1 |
| 2 | 232291413 | Hex. Flange Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 705500446 | LH Drive Axle Includes 57 - 66. | ||
| 1 | 705500468 | CV JOINT | 1 |
| 705500469 | BOOT WHEEL KIT Includes 59 - 61. | ||
| 1 | 705400064 | CLAMP | 1 |
| 705400180 | Clamp | ||
| 1 | 705500428 | Boot Kit Includes 62 - 64. | 1 |
| 1 | 705400408 | CLAMP | 1 |
| 705500427 | PLUNGING JOINT | ||
| 1 | 705400042 | CIRCLIP | 1 |
| 705500447 | RH Drive Axle Includes 67 - 76. | ||
| 705500469 | BOOT WHEEL KIT Includes 69 - 71. | ||
| 1 | 705500428 | Boot Kit Includes 72 - 74. | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 230603546 | Hex. Flange Screw M10 X 135 | 2 |
| 4 | 233201416 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 293350048 | Cone Bearing | 2 |
| 2 | 705500382 | Wear Sleeve | 2 |
| 2 | 705500372 | Wear Sleeve | 2 |
| 2 | 293370034 | CIRCLIP | 2 |
| 2 | 250200019 | WASHER | 2 |
