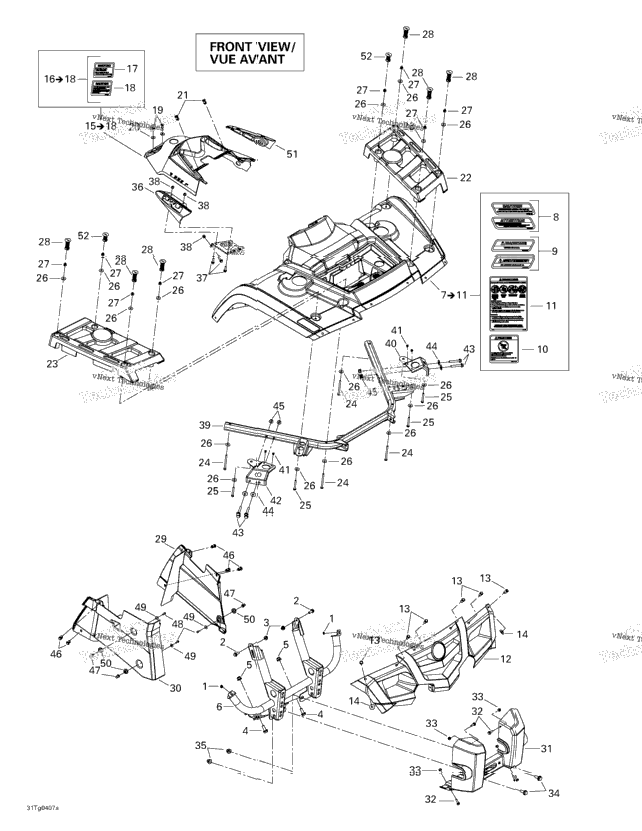

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 732610072 | Push Nut | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 STD 2 x 4, STD 4 x 4 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 705001130 | Front Bumper CAMO STD 4 x 4, XT 4 x 4 | 1 |
| 1 | 705001175 | Front Bumper COLOR | 1 |
| 1 | 703500270 | Front Fender Includes 7 - 11. RED | 1 |
| 703500271 | Front Fender GREEN | ||
| 1 | 703500325 | Front Fender YELLOW | 1 |
| 703500327 | Front Fender CAMO | ||
| 703500326 | Front Fender GREEN - SANDSTONE XT 4 x 4 | ||
| 704900483 | Warning Decal,, Do Not Sit | ||
| 1 | 704900433 | Caution Decal, Front Load | 1 |
| 1 | 704900011 | Warning Decal, Under 16 Years Old RED. GREEN | 1 |
| 1 | 704900113 | Warning Decal, Under 16 Years Old YELLOW. CAMO STD 4 x 4, GREEN - SANDSTONE XT 4 x 4 | 1 |
| 704900001 | Warning Decal, Death And Injuries RED. GREEN | ||
| 704900112 | WARNING DECAL, DEATH AND INJURIES YELLOW. CAMO STD 4 x 4, GREEN - SANDSTONE XT 4 x 4 | ||
| 705000432 | Front Fascia, Viper Red RED | ||
| 705000734 | FRONT FASCIA, LAURENTIAN GREEN GREEN | ||
| 705000851 | Front Fascia, Yellow YELLOW | ||
| 705000853 | Front Fascia, Camo CAMO STD 4 x 4, XT 4 x 4 | ||
| 705001171 | Front Fascia GREEN - SANDSTONE XT 4 x 4 | ||
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 703500266 | Console, Viper Red Includes 15 - 18. RED | ||
| 703500267 | Console, Laurentian Green GREEN | ||
| 703500330 | Console, Yellow YELLOW | ||
| 703500332 | Dash-board, Camo CAMO STD 4 x 4, XT 4 x 4 | ||
| 703500331 | Dash-Board GREEN - SANDSTONE XT 4 x 4 | ||
| 1 | 704900434 | Caution Decal, Lever And 4wd Switch Includes 16 - 18. | 1 |
| 1 | 704900475 | Caution Decal, Shifting Lever | 1 |
| 704900476 | CAUTION DECAL, 4WD SWITCH | ||
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 391302000 | Flat Washer | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 705000436 | LH FRONT LUGGAGE RACK | 1 |
| 705000437 | RH FRONT LUGGAGE RACK | ||
| 207168044 | Hex. Screw M6 X 80 | ||
| 207165044 | HEX. SCREW M6 X 50 | ||
| 16 | 224061201 | Flat Washer | 16 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 705000656 | Protection Plug | ||
| 1 | 705000652 | LH Inner Fender | 1 |
| 705000653 | SIDE PANEL | ||
| 1 | 705000440 | Front Protection Plate | 1 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 STD 2 x 4, STD 4 x 4 | 2 |
| 1 | 705000441 | Lever Indicator | 1 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 705000895 | front support | ||
| 1 | 705000692 | LH ANCHOR PLATE | 1 |
| 4 | 390402000 | Pop Rivet 3/16" | 4 |
| 1 | 705000693 | RH Anchor Plate | 1 |
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 5 | 293150089 | Tuflok Plastic Rivet | 5 |
| 3 | 517302719 | Knob | 3 |
| 3 | 207151244 | Hex. Screw M5 X 12 | 3 |
| 3 | 391301600 | Washer | 3 |
| 3 | 293720053 | Grommet | 3 |
| 705000654 | Valve Support | ||
| 2 | 705000655 | PROTECTION PLUG | 2 |
