Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

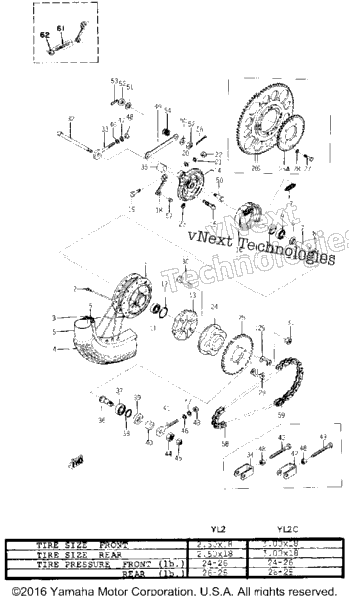

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 92990-10200-00 | Washer, Plain | 1 |
| 94580-52104-00 | 420 M Did 104L | ||
| 95303-10700-00 | Nut | ||
| 1 | 97023-06020-00 | Bolt (3Xf) | 1 |
| 1 | 94230-18084-00 | Tube | 1 |
| 1 | 122-25355-00-00 | Lever, Camshaft | 1 |
| 1 | 94325-18043-00 | Band, Rim | 1 |
| 102-25311-00-38 | Hub, Rear | ||
| 1 | 5A7-25435-00-00 | Sprocket, Driven (35T) | 1 |
| 1 | 90387-18144-00 | Collar | 1 |
| 94416-18018-00 | Rim 1.60X18 | ||
| 4 | 304-25364-01-00 | Damper FOR 132-25311-00-38 | 4 |
| 58K-25366-00-00 | Clutch, Hub | ||
| 1 | 167-25387-00-00 | Axle, Sprocket | 1 |
| 94130-18041-00 | 300X18 Yoko Y610 | ||
| 195-25311-00-38 | Hub, Rear | ||
| 167-25437-10-33 | Sprocket, Drivn 37T | ||
| 167-25381-00-00 | Axle, Wheel ISO | ||
| 90170-12063-00 | Nut, Hexagon ISO | ||
| 1 | 91401-25020-00 | Pin, Cotter | 1 |
| 12N-25439-20-33 | Sprocket Drivn39t | ||
| 94504-28018-00 | Chain | ||
| 94504-20018-00 | Chain 18L | ||
| 205-25387-00-00 | Axle, Sprocket | ||
| 205-25440-10-00 | Sprocket, Drivn 40T | ||
| 167-25440-10-33 | Sprocket, Drivn 40T | ||
| 1 | 296-25366-01-98 | Clutch, Hub ISO. FOR 132-25311-00-38 | 1 |
| 164-25304-00-00 | Spoke Set, Rear | ||
| 132-25311-00-38 | Hub, Rear | ||
| 1 | 90387-20165-00 | Collar | 1 |
| 183-25304-01-00 | Spoke Set, Rear | ||
| 94504-28108-00 | 428 Std 108L | ||
| 1 | 94414-18007-00 | Rim 1.40 X 18 | 1 |
| 94125-18351-00 | Tire Rear (164) | ||
| 1 | 94225-18194-00 | Tube (2.50-18) | 1 |
| 1 | 90560-12145-00 | Spacer | 1 |
| 90560-12108-00 | Spacer | ||
| 2 | 109-25315-00-00 | Flange, Spacer | 2 |
| 1 | 109-25315-00-00 | Flange, Spacer | 1 |
| 1 | 93306-30101-00 | Bearing | 1 |
| 1 | 93104-21016-00 | Oil Seal, Sd-Type | 1 |
| 93104-18006-00 | Oil Seal, So-Type | ||
| 1 | 93306-30103-00 | Bearing | 1 |
| 1 | 93210-41041-00 | O-Ring | 1 |
| 1 | 93210-42101-00 | O-Ring | 1 |
| 102-25364-00-00 | Damper FOR 102-25311-00-38 | ||
| 339-25320-10-00 | Brake Shoe Plt Assembly | ||
| 195-25321-00-38 | Plate, Brake Shoe | ||
| 1 | 122-25351-02-00 | Camshaft | 1 |
| 183-25351-00-00 | Camshaft | ||
| 2 | 296-W2536-00-00 | Brakeshoe Set-2Pcs | 2 |
| 183-W2536-00-00 | Brake Shoe Set-2Pcs | ||
| 2 | 90506-17328-00 | Spring, Tension | 2 |
| 2 | 90506-16150-00 | Spring,Tension | 2 |
| 1 | 97021-06030-00 | Bolt | 1 |
| 1 | 92990-06200-00 | ..Washer, Plain | 1 |
| 1 | 92995-06100-00 | Washer, Spring | 1 |
| 1 | 95380-06600-00 | Nut, Hexagon | 1 |
| 1 | 93700-06M03-00 | Nipple, Grease | 1 |
| 102-25366-00-00 | Clutch, Hub FOR 102-25311-00-38 | ||
| 1 | 122-25437-10-33 | Sprocket, Drivn 37T | 1 |
| 167-25470-10-00 | Sprocket, Drivn 70T | ||
| 205-25470-10-00 | Sprocket, Drivn 70T | ||
| 4 | 97313-08030-00 | Bolt | 4 |
| 4 | 92990-08100-00 | Washer, Spring | 4 |
| 2 | 102-25412-00-00 | Washer, Lock | 2 |
| 4 | 90101-08672-00 | Bolt ISO | 4 |
| 4 | 95333-08600-00 | Nut | 4 |
| 357-25381-00-00 | Axle, Wheel | ||
| 1 | 102-25389-00-00 | Puller, Chain 2 | 1 |
| 130-25389-00-00 | Puller, Chain 2 | ||
| 1 | 90387-12412-00 | Collar | 1 |
| 1 | 90387-12102-00 | Collar | 1 |
| 102-25387-02-00 | Axle, Sprocket | ||
| 1 | 93306-00406-00 | Bearing | 1 |
| 1 | 99009-42500-00 | Circlip | 1 |
| 1 | 93106-30004-00 | Oil Seal | 1 |
| 93106-26005-00 | Oil Seal | ||
| 90387-18143-00 | Collar | ||
| 1 | 1NX-25388-00-00 | Puller, Chain 1 | 1 |
| 130-25388-09-00 | Puller, Chain 1 | ||
| 2 | 97013-06035-00 | Bolt | 2 |
| 2 | 90101-06016-00 | Bolt | 2 |
| 1 | 90170-18165-00 | Nut | 1 |
| 90179-10106-00 | Nut, Spec''l Shape | ||
| 2 | 92990-06200-00 | ..Washer, Plain | 2 |
| 2 | 92995-06100-00 | Washer, Spring | 2 |
| 2 | 95380-06600-00 | Nut, Hexagon | 2 |
| 102-25371-00-00 | Bar, Tension | ||
| 195-25371-00-00 | Bar, Tension | ||
| 1 | 90109-08183-00 | Bolt | 1 |
| 1 | 90109-08063-00 | Bolt | 1 |
| 1 | 92990-08100-00 | Washer, Spring | 1 |
| 1 | 95303-08700-00 | Nut | 1 |
| 2 | 95303-08700-00 | Nut | 2 |
| 1 | 90468-10050-00 | Clip | 1 |
| 90501-20129-00 | Spring, Compression | ||
| 92990-08200-00 | Washer, Plain | ||
| 1 | 91490-20020-00 | Pin, Cotter | 1 |
| 1 | 90249-12008-00 | Pin | 1 |
| 94504-20100-00 | 420 100L | ||
| 2 | 94680-24001-00 | . Chain Joint | 2 |
| 1 | 94680-52001-00 | . Joint, Chain (Did 420M) | 1 |
| 2 | 94680-52001-00 | . Joint, Chain (Did 420M) | 2 |
| 1 | 90501-10245-00 | Spring, Compression | 1 |
| 1 | 90179-06411-00 | Nut | 1 |
