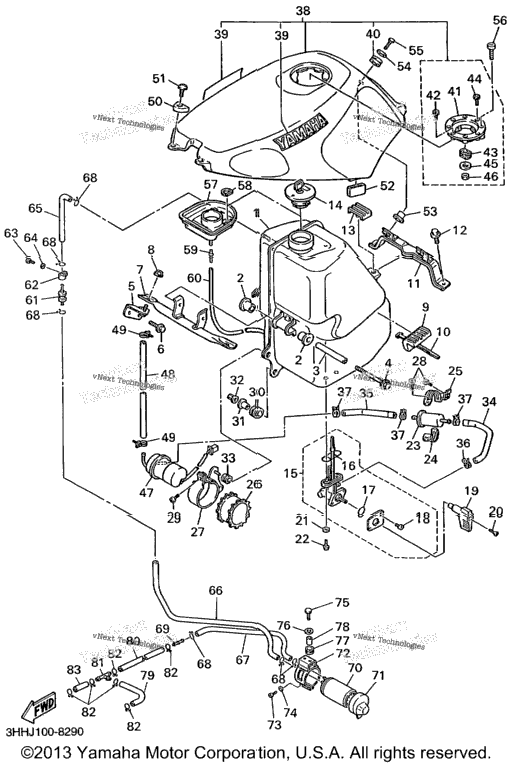

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3HE-24110-00-00 | Fuel Tank Comp | ||
| 3HE-24110-10-00 | Fuel Tank Comp | ||
| 1HX-24181-00-00 | Damper, Locating 1 | ||
| 90387-06380-00 | Collar | ||
| 1 | 95807-06080-00 | Bolt, Flange | 1 |
| 3EN-21346-00-00 | Bracket, Tank Fitting | ||
| 4 | 95807-06016-00 | Bolt, Flange | 4 |
| 1WG-21345-00-00 | Bracket, Tank Fitting | ||
| 2 | 90179-08410-00 | Nut | 2 |
| 1HX-24182-00-00 | Damper, Locating 2 | ||
| 2 | 90465-13152-00 | Clamp | 2 |
| 1WG-21348-00-00 | Bracket, Tank Fitting | ||
| 2 | 95807-06016-00 | Bolt, Flange | 2 |
| 1WG-24185-00-00 | Damper, Locating 5 | ||
| 3FH-24602-00-00 | Cap Assembly | ||
| 1WG-24602-00-00 | Cap Assembly | ||
| 1 | 3HE-24500-00-00 | Fuel Cock Assembly 1 | 1 |
| 1 | 4X8-24512-00-00 | . O-Ring | 1 |
| 1 | 3AJ-24534-00-00 | . Seal, Cock | 1 |
| 2 | 98503-03008-00 | . Screw, Pan Head | 2 |
| 1 | 3HE-24524-00-00 | Lever, Cock | 1 |
| 1 | 98707-04018-00 | Screw, Flat Head | 1 |
| 2 | 90202-05193-00 | Washer, Plate | 2 |
| 2 | 90149-06011-00 | Screw | 2 |
| 1 | 1FK-24560-00-00 | Filter Assy | 1 |
| 26H-24568-00-00 | Band, Filter | ||
| 1WG-24566-00-00 | Bracket, Filter | ||
| 1WG-24398-01-00 | Band 1 | ||
| 3HE-24491-00-00 | Bracket, Fuel Pump | ||
| 2 | 98907-05014-00 | Screw, Bind | 2 |
| 1 | 98907-05010-00 | Screw, Bind | 1 |
| 1 | 90480-14229-00 | Grommet | 1 |
| 1 | 90387-07391-00 | Collar | 1 |
| 1 | 95707-06500-00 | Nut, Flange | 1 |
| 1 | 90480-11454-00 | Grommet | 1 |
| 1WG-24311-00-00 | Pipe, Fuel 1 | ||
| 90445-137F4-00 | Hose | ||
| 1 | 90467-10135-00 | Clip | 1 |
| 3 | 90467-12053-00 | Clip | 3 |
| 3HE-Y217F-80-33 | Cover, Top (Fuel Tank) YB | ||
| 2 | 99221-00180-00 | . Emblem, Yamaha | 2 |
| 2 | 90480-18418-00 | . Grommet | 2 |
| 3HE-24614-00-00 | . Plate, Cap | ||
| 3 | 90110-06134-00 | . .Bolt, Hexagon Socket Head | 3 |
| 1WG-24665-00-00 | . Damper | ||
| 90110-06133-00 | . Bolt, Hexagon Socket Head | ||
| 3 | 90201-06380-00 | . Washer Plain | 3 |
| 3 | 95307-06600-00 | . Nut | 3 |
| 3EN-13907-00-00 | Fuel Pump Comp | ||
| 90445-146F9-00 | Hose | ||
| 2 | 90467-13071-00 | Clip | 2 |
| 2 | 1WG-24183-00-00 | Damper, Locating 3 | 2 |
| 90154-06040-00 | Screw, Binding | ||
| 4X7-21719-00-00 | Grommet | ||
| 90387-112R6-00 | Collar | ||
| 2 | 90201-06071-00 | Washer, Plate | 2 |
| 2 | 98507-06025-00 | Screw, Pan Head | 2 |
| 90110-06170-00 | Bolt, Hexagon Socket Head | ||
| 1WG-2414A-00-00 | Cover, Filler | ||
| 1WG-24622-00-00 | Washer, Ring | ||
| 90560-03220-00 | Spacer | ||
| 1 | 90445-070F1-00 | Hose (L950) | 1 |
| 25H-24180-00-00 | Roll Over Valve Assy | ||
| 1 | 90461-15100-00 | Clamp | 1 |
| 1 | 98507-05010-00 | Screw, Pan Head | 1 |
| 1 | 92907-05600-00 | Washer, Plate | 1 |
| 1 | 3FH-24313-00-00 | Pipe 3 | 1 |
| 90445-11706-00 | Hose (L500) | ||
| 1 | 90445-11501-00 | Hose (L205) | 1 |
| 6 | 90467-10008-00 | Clip | 6 |
| 42H-24119-00-00 | Tube, Connecting | ||
| 3FH-24170-00-00 | Canister Assembly | ||
| 1 | 2JU-2419E-00-00 | Cover, Canister | 1 |
| 3FH-24190-00-00 | Canister Holder | ||
| 2 | 98507-05016-00 | Screw, Pan Head | 2 |
| 2 | 92907-05600-00 | Washer, Plate | 2 |
| 2 | 97007-06020-00 | Bolt | 2 |
| 2 | 90201-06380-00 | Washer Plain | 2 |
| 2 | 90480-15058-00 | Grommet | 2 |
| 2 | 90387-060A7-00 | Collar | 2 |
| 3HW-24312-00-00 | Pipe 2 | ||
| 90445-11611-00 | Hose | ||
| 1 | 3H3-24376-00-00 | Pipe, Joint 1 | 1 |
| 1 | 90445-11732-00 | Hose (L30) | 1 |
