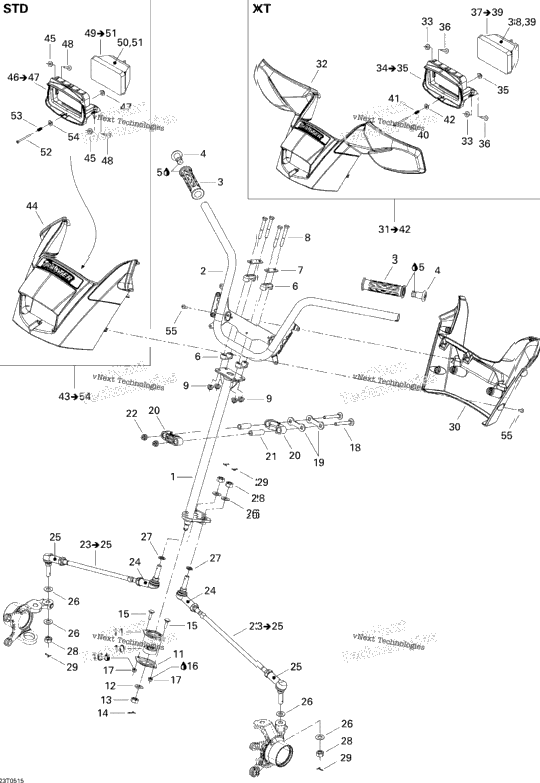

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 709400305 | Main Tube, Black | ||
| 1 | 709400300 | HANDLE BAR | 1 |
| 2 | 709400157 | Grip, Black | 2 |
| 2 | 709400189 | END-PIECE | 2 |
| 1 | 293800100 | Loctite 406, 7 Oz | 1 |
| 4 | 506151622 | Steering Support | 4 |
| 2 | 506151196 | Reinforcement | 2 |
| 4 | 207086046 | Hex. Screw M8 X 60 | 4 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 1 | 709400224 | Thrust Bearing | 1 |
| 709400152 | FLANGE, BEARING | ||
| 1 | 234021410 | Flat Washer 12 mm | 1 |
| 1 | 250100045 | Nut M12 | 1 |
| 1 | 211400017 | Cotter Pin | 1 |
| 2 | 207762544 | Carriage Bolt M6 X 25 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 207787044 | Carriage Bolt M8 X 70 | 2 |
| 2 | 506150600 | Stopper Plate | 2 |
| 2 | 709400034 | HALF-HOUSING | 2 |
| 2 | 506150500 | Housing Bushing | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 709400240 | TIE ROD ASS'Y Includes 23 to 25 | ||
| 1 | 709400241 | RH Ball Joint | 1 |
| 1 | 709400242 | LH Ball Joint | 1 |
| 6 | 706200281 | Hardened Washer | 6 |
| 2 | 503189276 | Washer | 2 |
| 4 | 250100045 | Nut M12 | 4 |
| 4 | 211400013 | Cotter Pin | 4 |
| 709400252 | REAR STEERING COVER | ||
| 709400333 | FRONT STEERING COVER ASS'Y Includes 31 to 42, XT | ||
| 703500499 | Front Steering Cover, Full Moon XT | ||
| 2 | 250200025 | Washer M5 XT | 2 |
| 709400296 | Light Stand Ass'y Includes 34 to 35, XT | ||
| 1 | 250100030 | T-NUT, M4 XT | 1 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 XT | 2 |
| 710000712 | CENTRAL HEADLAMP ASS'Y Includes 37 to 39, XT | ||
| 1 | 705000284 | LAMP HOUSING XT | 1 |
| 710000762 | BULB XT | ||
| XXXX | Not Available As Spare Part - Phillips Screw M4 x 50 XT | ||
| 1 | 517168600 | Spring XT | 1 |
| 1 | 250200025 | Washer M5 XT | 1 |
| 1 | 709400334 | FRONT STEERING COVER ASS'Y Includes 43 to 54, STD | 1 |
| XXXX | Not Available As Spare Part - Front Steering Cover, Full Moon STD | ||
| 2 | 250200025 | Washer M5 STD | 2 |
| 709400296 | Light Stand Ass'y Includes 46 to 47, STD | ||
| 1 | 250100030 | T-NUT, M4 STD | 1 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 STD | 2 |
| 710000712 | CENTRAL HEADLAMP ASS'Y Includes 49 to 51, STD | ||
| 1 | 705000284 | LAMP HOUSING STD | 1 |
| 710000762 | BULB STD | ||
| XXXX | Not Available As Spare Part - Phillips Screw M4 x 50 STD | ||
| 1 | 517168600 | Spring STD | 1 |
| 1 | 250200025 | Washer M5 STD | 1 |
| 6 | 250000146 | Truss Head Torx Screw K50 X 16 | 6 |
