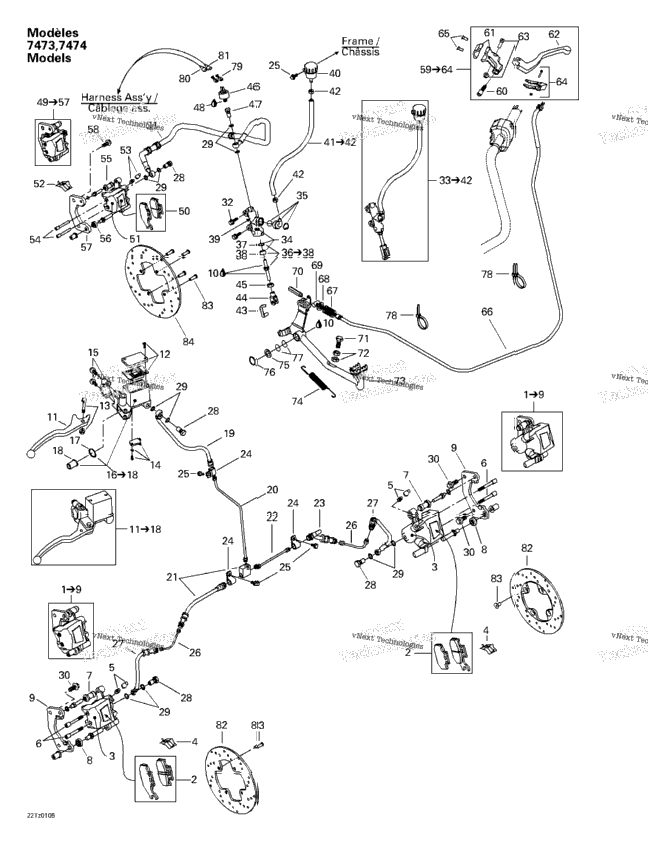

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705600118 | RH Caliper Includes 1 - 9. | ||
| 705600119 | LH Caliper | ||
| 1 | 705600004 | Brake Pad Kit | 1 |
| 1 | 705600014 | Brake Pad Kit | 1 |
| 2 | 705600078 | Piston Set | 2 |
| 2 | 705600079 | Spring | 2 |
| 2 | 705600080 | Bleeding Screw | 2 |
| 2 | 705600081 | Pin Set (2) | 2 |
| 2 | 705600082 | Compression Boot | 2 |
| 2 | 705600083 | Compression Boot | 2 |
| 705600149 | Lining Support | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 705600120 | FRONT MASTER CYLINDER Includes 11 - 18. | ||
| 705600164 | LEVER ARM | ||
| 1 | 705600084 | Cap Set | 1 |
| 1 | 705600085 | BOLT KIT | 1 |
| 1 | 705600148 | SWITCH KIT | 1 |
| 705600087 | BRACKET KIT | ||
| 1 | 705600152 | PISTON KIT Includes 16 - 18. | 1 |
| 705600088 | CIRCLIP | ||
| 1 | 705600089 | COMPRESSION BOOT | 1 |
| 705600165 | HANDLE BRAKE HOSE | ||
| 705600036 | Vertical tube | ||
| 705600174 | RH flexible hose | ||
| 705600038 | Horizontal tube | ||
| 705600175 | LH flexible hose | ||
| 3 | 705600232 | Hose Retainer 13 mm | 3 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 705600176 | Rigid tube | ||
| 2 | 705600177 | Brake flexible hose | 2 |
| 4 | 705600056 | Banjo Bolt | 4 |
| 10 | 414920600 | Washer | 10 |
| 4 | 250000057 | Hex. Screw M10 X 20, Scotch Grip | 4 |
| 1 | 705600163 | Rear brake flexible hose | 1 |
| 2 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 2 |
| XXXX | Not Available As Spare Part - Master Cylinder Ass'y Includes 33 - 42. | ||
| 705600063 | Piston Set | ||
| 1 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR | 1 |
| 705600155 | Rod Ass'y Includes 36 - 38. | ||
| 705600068 | Circlip | ||
| 705600090 | Compression Boot | ||
| 705600117 | Master Cylinder | ||
| 1 | 705600067 | Oil Tank | 1 |
| 1 | 705600169 | OIL HOUSING HOSE Includes 41 - 42. | 1 |
| XXXX | Not Available As Spare Part - Hose Clamp | ||
| 1 | 250400007 | Pin | 1 |
| 705600100 | Yoke | ||
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 710000099 | BRAKE SWITCH | ||
| 705600092 | BANJO BOLT | ||
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 705600122 | REAR CALIPER Includes 49 - 57. | ||
| 1 | 705600150 | Brake Pad Kit | 1 |
| 1 | 705600078 | Piston Set | 1 |
| 1 | 705600079 | Spring | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705600082 | Compression Boot | 1 |
| 1 | 705600083 | Compression Boot | 1 |
| 2 | 250000058 | Hex. screw M10 x 15 | 2 |
| 705600011 | Brake Handle Includes 59 - 64. | ||
| 250000030 | Cable Screw | ||
| 1 | 705600184 | CLAMP KIT | 1 |
| 1 | 705600186 | LEVER | 1 |
| 705600187 | Pivot Kit | ||
| 705600188 | Lever Lock Kit | ||
| 205351646 | SOCKET HEAD SCREW M5 X 16 | ||
| 705600099 | REAR BRAKE CABLE | ||
| 1 | 705600144 | SPRING | 1 |
| 1 | 705600145 | FLAT WASHER | 1 |
| 1 | 705600146 | CABLE BARREL | 1 |
| 1 | 705600147 | NUT | 1 |
| 1 | 207102544 | Hex. Screw M10 X 25 | 1 |
| 2 | 232006414 | Hex. Nut M10 X 1.5 | 2 |
| 1 | 705600125 | BRAKE PEDAL, BLACK | 1 |
| 1 | 705600107 | BRAKE PEDAL SPRING | 1 |
| 1 | 503107800 | WASHER | 1 |
| 1 | 293370012 | CIRCLIP | 1 |
| 2 | 293300053 | O-RING | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 278001009 | Female Terminal | 2 |
| 278000007 | Insulating Sheath | ||
| 1 | 278000770 | Insulated Sheath | 1 |
| 705600171 | Brake Disk 205 mm | ||
| 8 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 8 |
| 705600170 | Brake Disk 220 mm (Rear) |
