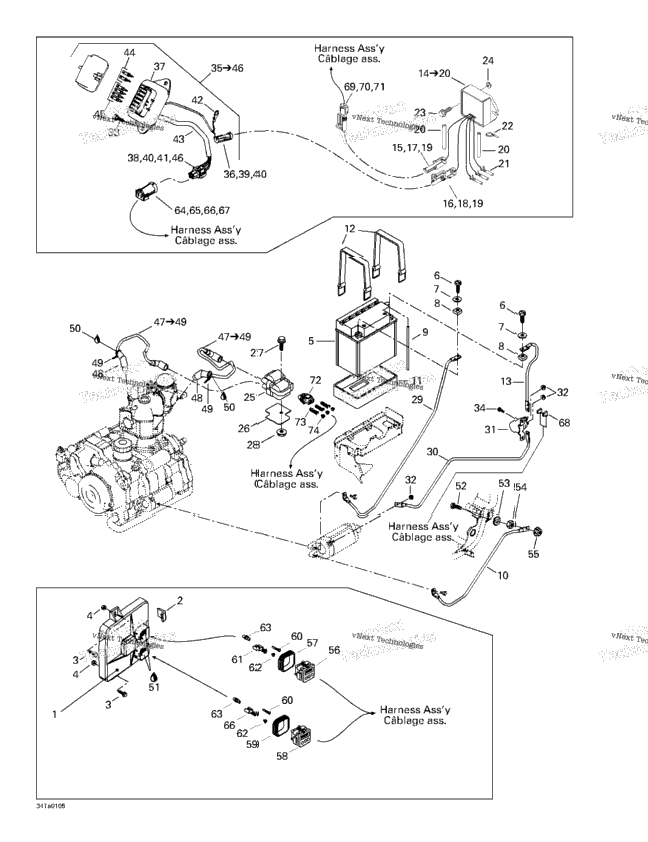

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 710000164 | Electronic Module | ||
| 278001166 | MODULE PROTECTOR | ||
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 278000712 | Battery YUASA YB16CL-B | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 211200018 | FLAT WASHER 6 MM | ||
| 2 | 211100022 | Battery Nut M6 | 2 |
| 1 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm | 1 |
| 710000022 | Battery Ground Cable | ||
| 278001234 | Battery Lower Pad | ||
| 2 | 293850021 | Rubber Strap | 2 |
| 710000011 | Positive Cable | ||
| 710000100 | VOLT REGULATOR ASS'Y Includes 14 - 20. | ||
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 278000219 | CONNECTOR_MALE 1 CAVITY | ||
| 2 | 278000218 | Wire Seal | 2 |
| 409901300 | LOW TEMPERATURE VINYL TUBING | ||
| 710000034 | FEMALE TERMINAL | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 278001546 | Ignition Coil | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 710000023 | Ground Cable | ||
| 710000211 | Engine Ground Cable | ||
| 1 | 710000136 | STARTER POSITIVE CABLE | 1 |
| 1 | 710000111 | Starter Relay | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 210661940 | Screw Hex. M6.3 x 19 | ||
| 710000092 | Fuse Holder Includes 35 - 46. | ||
| 1 | 409004300 | Male Terminal | 1 |
| 710000029 | Fuse Box | ||
| 5 | 409007300 | Female Terminal | 5 |
| 4 | 278000218 | Wire Seal | 4 |
| 1 | 710000048 | Wire Seal | 1 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 278001143 | Fuse, 20 amperes | 1 |
| 4 | 278000343 | Fuse, 15 Amperes | 4 |
| 710000106 | Female Housing, 5 Circuit | ||
| 2 | 710000039 | Spark Wire Ass'y Includes 47 - 49. | 2 |
| 2 | 710000041 | Spark Plug Cap, Black | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 207162044 | Hex. Screw M6 X 20 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232061414 | Hex. Nut M6 | 1 |
| 278001062 | Male Terminal Housing, 26 Circuits Includes 56 - 57. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 1 | 278001063 | MALE TERMINAL HOUSING, 26 CIRCUITS Includes 58 - 59. | 1 |
| 278000995 | FEMALE TERMINAL | ||
| 1 | 278000994 | FEMALE TERMINAL | 1 |
| 278000996 | WIRE SEAL | ||
| 1 | 293000070 | SEALING CAP | 1 |
| 1 | 710000107 | MALE HOUSING, 5 CIRCUITS | 1 |
| 5 | 409004300 | Male Terminal | 5 |
| 2 | 409010300 | Female Terminal | 2 |
| 1 | 409007300 | Female Terminal | 1 |
| 1 | 278000997 | Male Housing, 3 Circuits | 1 |
| 3 | 278000998 | Female Terminal | 3 |
| 3 | 278000999 | Wire Seal | 3 |
