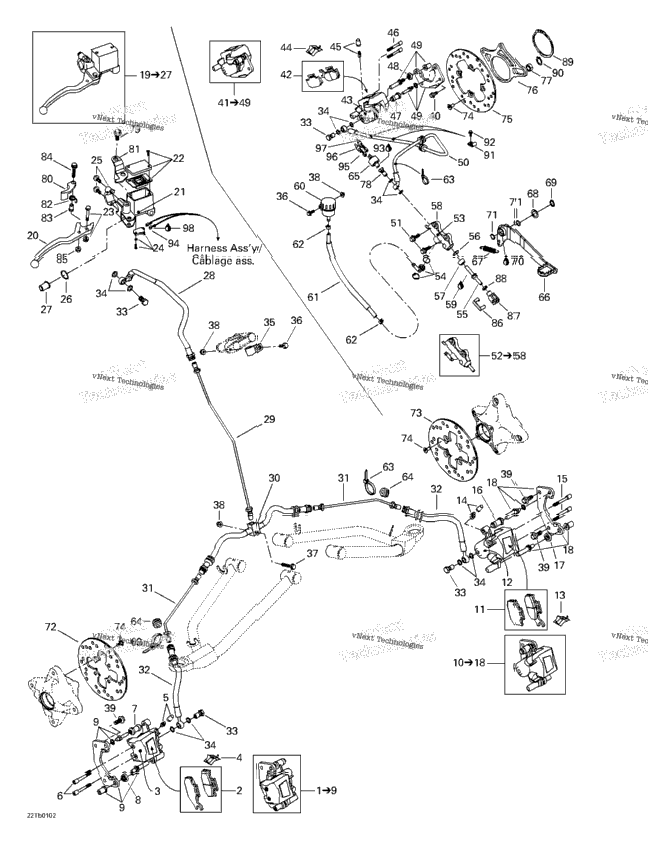

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600043 | RH CALIPER Includes 1 - 9. | 1 |
| 1 | 705600004 | Brake Pad Kit | 1 |
| 1 | 705600078 | Piston Set | 1 |
| 1 | 705600079 | Spring | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705600082 | Compression Boot | 1 |
| 1 | 705600083 | Compression Boot | 1 |
| 1 | 705600062 | RH BRAKE SUPPORT | 1 |
| 705600044 | LH CALIPER Includes 10 - 18. | ||
| 1 | 705600014 | Brake Pad Kit | 1 |
| 1 | 705600061 | LH BRAKE SUPPORT | 1 |
| 705600045 | MASTER CYLINDER Includes 19 - 27. | ||
| 705600057 | ARM LEVER | ||
| 705600058 | Piston Kit | ||
| 1 | 705600084 | Cap Set | 1 |
| 1 | 705600085 | BOLT KIT | 1 |
| 1 | 705600086 | SWITCH KIT | 1 |
| 705600087 | BRACKET KIT | ||
| 705600088 | CIRCLIP | ||
| 1 | 705600089 | COMPRESSION BOOT | 1 |
| 705600007 | Brake Handle Hose | ||
| 705600047 | Vertical Hose | ||
| 705600048 | Flexible Hose | ||
| 705600070 | Horizontal Tube | ||
| 705600071 | Brake Hose | ||
| 4 | 705600056 | Banjo Bolt | 4 |
| 10 | 414920600 | Washer | 10 |
| 1 | 705600040 | Open Clamp | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 2 |
| 705600049 | REAR CALIPER Includes 41 - 49. | ||
| 705600017 | BRAKE SUPPORT ASS'Y | ||
| 1 | 705600052 | Rear Flexible Hose | 1 |
| 2 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 2 |
| 705600050 | Master Cylinder Ass'y Includes 52 - 58. | ||
| 705600063 | Piston Set | ||
| 1 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR | 1 |
| 705600065 | Rod Ass'y | ||
| 705600068 | Circlip | ||
| 705600090 | Compression Boot | ||
| 705600117 | Master Cylinder | ||
| XXXX | Not Available As Spare Part - Grease | ||
| 1 | 705600067 | Oil Tank | 1 |
| 705600108 | Hose | ||
| 2 | 414415200 | Spring Clamp | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 293720046 | Grommet | ||
| 710000099 | BRAKE SWITCH | ||
| 705600094 | Brake Pedal | ||
| 1 | 705600098 | BREAK PEDAL SPRING | 1 |
| 1 | 503107800 | WASHER | 1 |
| 1 | 293370012 | CIRCLIP | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 293300053 | O-RING | 2 |
| 1 | 705600042 | RH BRAKE DISC | 1 |
| 1 | 705600093 | LH BRAKE DISC | 1 |
| 12 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 12 |
| 705500059 | Brake Disc | ||
| 705500066 | Caliper Support | ||
| 705500068 | Caliper Guide | ||
| 705600092 | BANJO BOLT | ||
| 1 | 250000029 | HEX. SCREW M10 X 16 | 1 |
| 1 | 705600095 | LEVER ARM | 1 |
| 705600096 | Lever Stopper | ||
| 1 | 705600055 | SPRING | 1 |
| 1 | 705600097 | SNAP RING | 1 |
| 1 | 210264080 | HEX. SCREW M6 X 40 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 250400007 | Pin | 1 |
| 705600100 | Yoke | ||
| 1 | 232180600 | Hex. Jam Nut M8 | 1 |
| 1 | 293370014 | CIRCLIP | 1 |
| 1 | 293370015 | CIRCLIP | 1 |
| 2 | 414351600 | CLIP | 2 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 710000082 | Female Terminal | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
