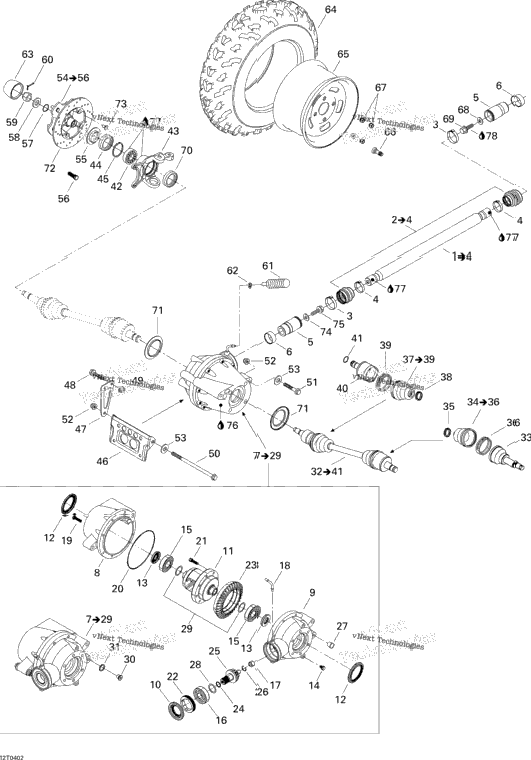

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705400195 | Drive Axle INCLUDES ITEMS 1 TO 4 | ||
| 703500255 | Rubber Boot Kit INCLUDES ITEMS 2 TO 4 | ||
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 705400148 | Collar | ||
| 2 | 705400149 | Coupling Sleeve | 2 |
| 2 | 705400036 | Wear Ring | 2 |
| 705400264 | Front Differential Ass'y INCLUDES ITEMS 7 TO 29 | ||
| 705400099 | Front Cover | ||
| 1 | 705500515 | PINION REAR COVER | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 705400004 | DIFFERENTIAL | ||
| 705400019 | OIL SEAL | ||
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 705500245 | Drain Plug | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500262 | Vent Valve | 1 |
| 8 | 705500264 | Screw | 8 |
| 1 | 705500265 | Seal | 1 |
| 8 | 705400101 | RING GEAR SCREW | 8 |
| 1 | 705500266 | Nut | 1 |
| 705400103 | Crown Gear | ||
| 1 | 705500267 | O-Ring | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500269 | RETAINING RING | 1 |
| 705500516 | PROTECTION PLUG | ||
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 705500079 | Differential Shim .022" | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400125 | RH CV JOINT INCLUDES ITEMS 32 TO 41 | 1 |
| 705400124 | LH CV JOINT INCLUDES ITEMS 32 TO 41 | ||
| 2 | 705400093 | CV JOINT | 2 |
| 2 | 705400127 | Boot Wheel Kit INCLUDES ITEMS 34 TO 36 | 2 |
| 2 | 705400064 | CLAMP | 2 |
| 705400180 | Clamp | ||
| 2 | 705400126 | Boot Differential Kit INCLUDES ITEMS 37 TO 39 | 2 |
| 705400181 | Clamp | ||
| 705400128 | RH Plunging Joint | ||
| 705400129 | LH Plunging Joint | ||
| 2 | 705400042 | CIRCLIP | 2 |
| 2 | 705400088 | Angle Bearing | 2 |
| 709400095 | RH Knuckle | ||
| 1 | 709400097 | LH KNUCKLE | 1 |
| 2 | 705500099 | OIL SEAL | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 705400255 | DIFFENTIAL FRONT BRACKET | 1 |
| 705400069 | RH Diffential Front Bracket | ||
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 250000024 | Flange Screw M10 X 200, Scotch Grip | ||
| 1 | 207506044 | HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP | 1 |
| 2 | 233101414 | Hex. Flange Nut M10 | 2 |
| 250200003 | Flat Washer | ||
| 705500254 | Wheel Hub Ass'y INCLUDES ITEMS 54 TO 56 | ||
| 705500100 | WEAR RING | ||
| 8 | 250300020 | Wheel Stud | 8 |
| 705500271 | O-RING | ||
| 2 | 250200019 | WASHER | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 705400066 | Rubber Bellow | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 705400012 | WHEEL CAP | ||
| 2 | 705400009 | Front Tire | 2 |
| 705400072 | Front Rim CHROME | ||
| 705400010 | Front Rim GREY | ||
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 705400013 | HEX. NUT | ||
| 1 | 211200041 | Washer | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 2 | 293250090 | Oil Seal | 2 |
| 705400016 | Wear Ring | ||
| 705600342 | Disc Brake 205 mm | ||
| 8 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 8 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
