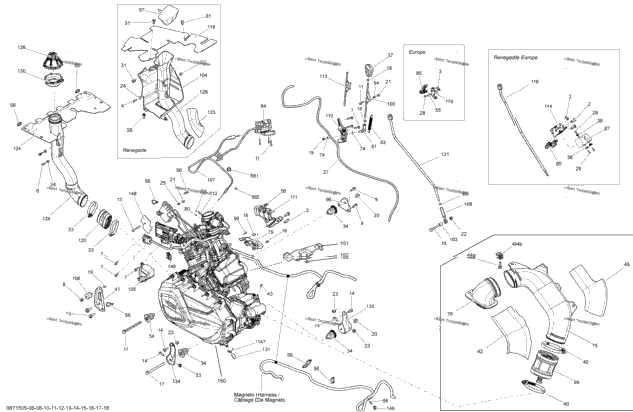

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 205052588 | Socket Head Screw M5 X 25 | 3 |
| 2 | 205402596 | SOCKET HEAD SCREW M10 X 25 | 2 |
| 2 | 205951046 | Socket Head Screw M5 X 10 | 2 |
| 1 | 207162044 | Hex. Screw M6 X 20 | 1 |
| 2 | 207562044 | Flange Screw M6 X 20, Scotch Grip | 2 |
| 7 | 207562544 | Hex. Flange Screw M6 X 25 | 7 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 4 | 207682046 | Hex. Flange Screw M8 X 20 | 4 |
| 1 | 207785044 | Carriage Bolt M8 X 50 | 1 |
| 2 | 210261280 | Hex. Flange Screw M6 X 12 | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 3 | 232180600 | Hex. Jam Nut M8 | 3 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| XXX | Not Available As Spare Parts | ||
| 3 | 250000242 | Truss Torx Screw M4 X 16 | 3 |
| 250000332 | TORX SCREW M4 X 8 | ||
| 3 | 293150089 | Tuflok Plastic Rivet | 3 |
| 2 | 293650091 | Norma Clamp | 2 |
| 4 | 707001169 | Vibration Damper | 4 |
| 1 | 250100144 | Hex. Nut M8, LH Threads | 1 |
| 3 | 250100143 | Extruded Panel Nut M4 X 0.7 | 3 |
| 1 | 707000965 | Lever Button | 1 |
| 2 | 293650118 | Norma Gear Clamp | 2 |
| 1 | 707001256 | Upper Engine Bracket | 1 |
| 1 | 707001206 | Heat Shield | 1 |
| 1 | 293650195 | Clamp, Oetiker | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 707001205 | Heat Shield | 1 |
| 1 | 293900019 | Bushing | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 706600019 | Air Outlet | 1 |
| 1 | 706600024 | Air Outlet | 1 |
| 1 | 707000410 | Cover OPS | 1 |
| 1 | 707000434 | Cable Guide | 1 |
| 1 | 707000546 | RH Ball Joint | 1 |
| 1 | 707000577 | Spring | 1 |
| 1 | 707000595 | Throttle Handle | 1 |
| 1 | 707000667 | Cover Lock | 1 |
| 1 | 707000761 | RH Front Engine Bracket | 1 |
| 1 | 707001168 | CVT Air Outlet Adaptor | 1 |
| 1 | 707000840 | Shift Arm | 1 |
| 1 | 293900106 | Bushing | 1 |
| 1 | 707000928 | Water Deflector | 1 |
| 1 | 707000945 | Cover | 1 |
| 1 | 707000949 | Rubber Isolator | 1 |
| 1 | 707000955 | Throttle Cable | 1 |
| 1 | 707000966 | Ball Joint Ass'y | 1 |
| 1 | 707000971 | Shift Arm Base | 1 |
| 1 | 707001637 | Upper Cable Support | 1 |
| 1 | 707000994 | SPEED LIMITER | 1 |
| 1 | 707001354 | FIXING PLATE | 1 |
| 1 | 707001015 | Shifter Rod | 1 |
| 1 | 707001041 | Upper Water Deflector | 1 |
| 1 | 707001043 | Flexible Adaptor | 1 |
| 1 | 707001654 | Heat Shield | 1 |
| 1 | 707001399 | CVT Air Inlet | 1 |
| 1 | 707001185 | Plug | 1 |
| 1 | 707001193 | LH Rear Engine Bracket | 1 |
| 1 | 707001194 | RH Rear Engine Bracket | 1 |
| 1 | 707800506 | Retainer Clip | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 710002896 | Tie-Rap Clip | 1 |
| 1 | 420101010 | Long Block, 1000 | 1 |
| 1 | 707001262 | Air Outlet Support | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
