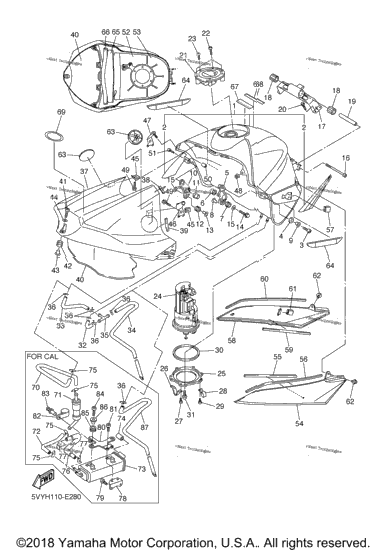

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 5VY-YK241-30-P2 | Fuel Tank Comp UR SMX | ||
| 5VY-Y2410-30-03 | Fuel Tank Comp UR DPBMC | ||
| 5VY-YK241-30-P3 | Fuel Tank Comp UR RYC1 | ||
| 5VY-24240-10-00 | . .Graphic Set FOR DPBMC | ||
| 2 | 91317-06016-00 | Bolt, Hex. Socket Head | 2 |
| 2 | 5VY-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 5VY-24191-00-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 5VY-24181-00-00 | Damper, Locating 1 | 1 |
| 1 | 90480-10542-00 | Grommet | 1 |
| 1 | 90387-066Y6-00 | Collar | 1 |
| 2 | 90387-061U9-00 | Collar | 2 |
| 1 | 5VY-24192-00-00 | Bracket, Fuel Tank 2 | 1 |
| 2 | 95027-06030-00 | Bolt, Flange | 2 |
| 2 | 90201-06063-00 | Washer, Plate | 2 |
| 1 | 91317-06090-00 | Bolt | 1 |
| 1 | 5VY-2413Y-00-00 | Bracket, Tank Fitting | 1 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 4 | 95027-06020-00 | Bolt, Flange | 4 |
| 1 | 5JJ-24602-00-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91317-05010-00 | Bolt, Hex. Socket Head | 1 |
| 1 | 5PW-13907-01-00 | Fuel Pump Comp | 1 |
| 5VY-24491-00-00 | Bracket, Fuel Pump | ||
| 5PW-24192-00-00 | Bracket, Fuel Tank 2 | ||
| 2 | 98907-05008-00 | .Screw, Bind | 2 |
| 1 | 90461-10010-00 | Clamp | 1 |
| 1 | 90154-05012-00 | Screw, Binding | 1 |
| 1 | 5JW-24486-00-00 | O-Ring | 1 |
| 6 | 90110-05014-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 5VY-24315-00-00 | Pipe 5 | 1 |
| 5VY-24316-00-00 | Pipe 6 | ||
| 5VY-24317-00-00 | Pipe 7 | ||
| 1 | 90413-07007-00 | Way 3 | 1 |
| 5 | 90467-09006-00 | Clip | 5 |
| 5VY-2171A-01-P1 | Cover, Top UR DPBMC | ||
| 5VY-2171A-01-P4 | Cover, Top UR MBL2 FOR SMX | ||
| 5VY-2171A-01-P5 | Cover, Top UR RYC1 | ||
| 5VY-2414J-00-00 | Damper, Plate 2 | ||
| 2 | 4XV-2834E-00-00 | .Damper 3 | 2 |
| 5VY-24145-00-00 | Damper, Side Cover | ||
| 1 | 91314-06025-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 90480-12314-00 | Grommet | 1 |
| 1 | 90387-065J6-00 | .Collar | 1 |
| 1 | 90201-06M30-00 | Washer, Plate | 1 |
| 4 | 90183-05074-00 | Nut, Spring | 4 |
| 5VY-24117-00-00 | Stay, Fuel Tank 3 | ||
| 1 | 5VY-24118-00-00 | Stay, Fuel Tank 4 | 1 |
| 2 | 95707-05500-00 | Nut, Flange | 2 |
| 4 | 90105-05002-00 | Bolt, Flange | 4 |
| 2 | 90179-05523-00 | Nut | 2 |
| 2 | 98907-05014-00 | Screw, Bind | 2 |
| 1 | 5VY-2414N-00-00 | Damper, Plate 4 | 1 |
| 1 | 5VY-2414P-00-00 | Damper, Plate 5 | 1 |
| 1 | 5VY-24129-01-00 | Cover, Side 1 | 1 |
| 1 | 5PW-2414J-00-00 | Damper, Plate 2 | 1 |
| 1 | 5PW-2414H-00-00 | Damper, Plate 1 | 1 |
| 1 | 5PW-2411J-01-00 | Damper, Side Cover | 1 |
| 1 | 5VY-24139-01-00 | Cover, Side 2 | 1 |
| 2 | 90159-05015-00 | Screw, With Washer | 2 |
| 2 | 5PW-2413B-00-00 | Emblem | 2 |
| 5VY-2414K-00-00 | Damper, Plate 3 | ||
| 1 | 5VY-2414R-00-00 | Damper, Plate 6 | 1 |
| 5VY-2414H-00-00 | Damper, Plate 1 | ||
| 1 | 5GK-2118K-00-00 | Label, Caution ENGLISH | 1 |
| 1 | 5PW-2415E-11-00 | Label, Caution ENGLISH | 1 |
| 5XC-2164B-00-00 | Emblem, 3D | ||
| 1 | 5VY-24313-00-00 | Pipe 3 | 1 |
| 1 | 5RB-24180-00-00 | Roll Over Valve Assy | 1 |
| 5VY-24314-00-00 | Pipe 4 | ||
| 5VY-24170-00-00 | Canister Assy | ||
| 1 | 90445-11418-00 | Hose (L18) | 1 |
| 4 | 90467-09006-00 | Clip | 4 |
| 5VY-1443J-00-00 | Pipe | ||
| 2 | 90467-09006-00 | Clip | 2 |
| 5VY-2419F-00-00 | Bracket, Canistor | ||
| 2 | 92017-06016-00 | Bolt, Button Head | 2 |
| 5VY-24216-00-00 | Stay | ||
| 2 | 92017-06010-00 | Bolt, Button Head | 2 |
| 1 | 90461-15139-00 | Clamp | 1 |
| 1 | 90269-05001-00 | Rivet | 1 |
| 2 | 90480-13018-00 | Grommet | 2 |
| 2 | 90387-062L2-00 | Collar | 2 |
| 5VY-24312-00-00 | Pipe 2 |
