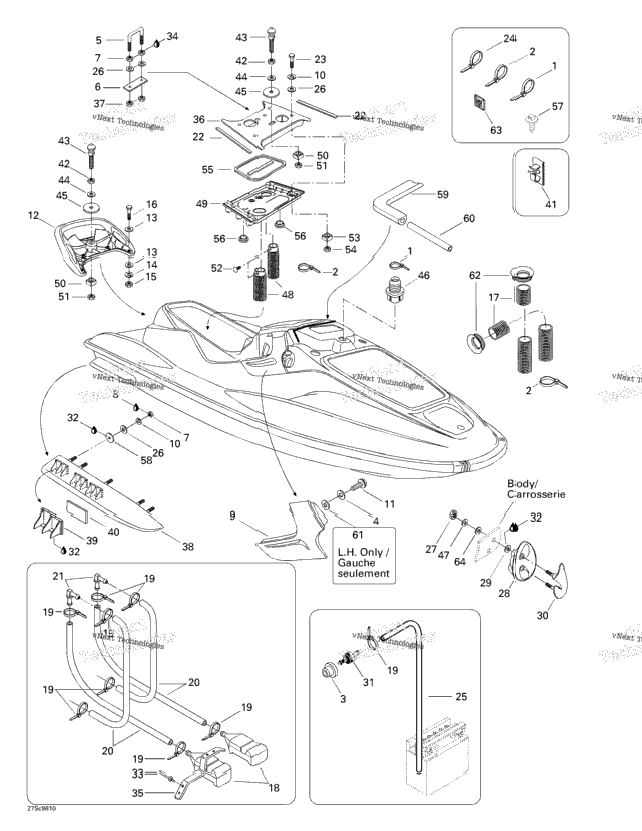

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17 | 294000606 | Tie Rap 180 mm | 17 |
| 8 | 293750008 | Tie Wrap 368 mm | 8 |
| 1 | 293720029 | Grommet | 1 |
| 6 | 217042600 | Flat Washer 4 mm | 6 |
| 1 | 291000468 | SEAT HOOK | 1 |
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 12 | 212100004 | Elastic Stop Nut M6 | 12 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 291000854 | RH Intake Grill (Black) | ||
| 291000853 | LH Intake Grill (Black) | ||
| 14 | 217361500 | Washer Lock 6 | 14 |
| 7 | 211000033 | Screw K40 x 16 | 7 |
| 295500369 | Grab Handle (Black) Includes 12 - 16. | ||
| 8 | 213200007 | Washer 6 mm | 8 |
| 4 | 217361500 | Washer Lock 6 | 4 |
| 4 | 212100004 | Elastic Stop Nut M6 | 4 |
| 4 | 215664060 | Hex. Screw M6 x 40 | 4 |
| 291000884 | Vent Hose | ||
| 292000079 | Screen Bailer | ||
| 9 | 293750001 | Tie Wrap 94 mm | 9 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 293250008 | GASKET PAC = 1.0m | ||
| 4 | 215667060 | Hex. Screw M6 x 70 | 4 |
| 9 | 293750002 | Tie Wrap 142 mm | 9 |
| 1 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm | 1 |
| 16 | 213200007 | Washer 6 mm | 16 |
| 2 | 212000002 | Elastic Stop Nut M8 | 2 |
| 292000482 | Shell (Aztec Red) | ||
| 2 | 213200002 | Flat Washer 8 mm | 2 |
| 292000481 | Bow Eye (Aztec Red) | ||
| 275500167 | CHECK VALVE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 291000851 | Bridge Upper | ||
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 292000393 | RH Sponson Ass'y Includes 38 - 40. | ||
| 292000394 | LH Sponson Ass'y | ||
| 293450149 | Insert | ||
| 6 | 292000414 | CUSHION | 6 |
| 8 | 293750005 | TIE CLAMP | 8 |
| 2 | 218300600 | Hex. Jam Nut M10 | 2 |
| 2 | 291000945 | SEAT STUD | 2 |
| 2 | 217002600 | Flat Washer | 2 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 1 | 293720042 | GROMMET | 1 |
| 2 | 213200011 | Flat Washer 8 mm | 2 |
| 237000007 | Hose | ||
| 291001231 | Bridge Lower | ||
| 271000598 | NUT HOUSING ASS'Y Includes 50 - 51. | ||
| 2 | 212000003 | Elastic Stop Nut M10 | 2 |
| 2 | 293730011 | Black, Dart | 2 |
| 4 | 269500252 | M6 Nut Housing Ass'y Includes 53 - 54. | 4 |
| 4 | 212000001 | Elastic Stop Nut M6 | 4 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 293000049 | Plug | ||
| 16 | 293730018 | Mount Dart | 16 |
| 10 | 293250026 | GASKET | 10 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 211200033 | FLAT WASHER | 1 |
| 291001100 | VENT ADAPTOR | ||
| 293750015 | TIE RAP MOUNT | ||
| 2 | 293830037 | Rubber Washer | 2 |
