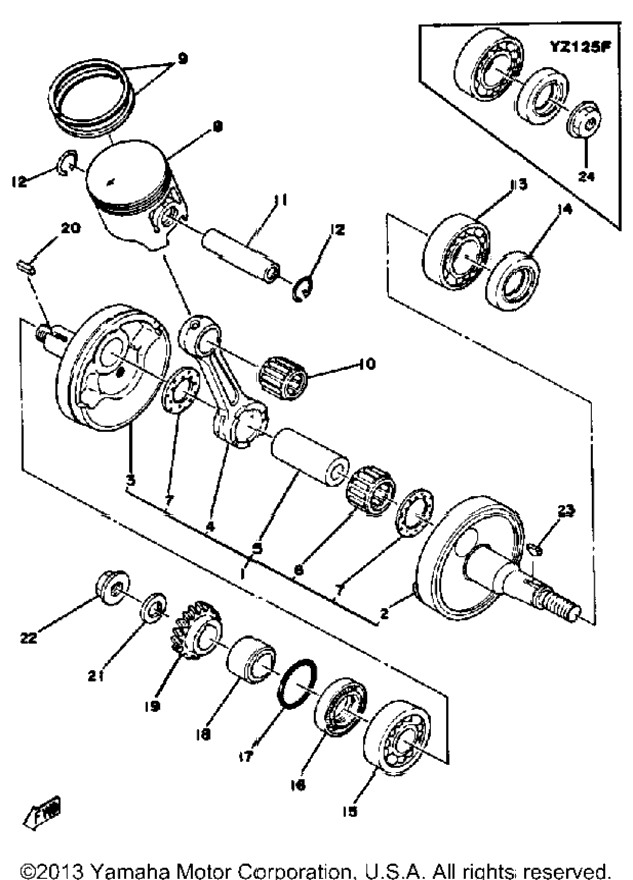

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2K5-11400-00-00 | Crankshaft Assembly (1W1-11400- | ||
| 2W5-11400-00-00 | Crankshaft Assembly | ||
| 1 | 1W1-11412-01-00 | . Crank 1 | 1 |
| 2W5-11412-00-00 | . Crank 1 | ||
| 1 | 1W1-11422-01-00 | . Crank 2 | 1 |
| 3R2-11651-01-00 | . Rod, Connecting | ||
| 1 | 3M5-11681-00-00 | . Pin, Crank 1 | 1 |
| 1 | 93310-422H0-00 | . Bearing, Cylinder.#10 | 1 |
| 2 | 90209-22248-00 | . Washer | 2 |
| 2K6-11631-00-97 | Piston Std (Std) | ||
| 2X3-11631-01-97 | Piston Std (55.97Mm Std) | ||
| 2K6-11635-00-00 | Piston 1 O/S 0.25 (56.25Mm 1St ALT. PART | ||
| 2K6-11631-00-97 | Piston Std (Std) ALT. PART | ||
| 2X3-11635-01-00 | Piston 1 O/S 0.25 (56.25Mm 1St | ||
| 3R3-11636-00-00 | Piston 2 O/S 0.50 (2Nd O/S 0.50 | ||
| 2K6-11637-00-00 | Piston 3 O/S 0.75 (3Rd O.S.) ALT. PART | ||
| 2K6-11638-00-00 | Piston 4 O/S 1.00 (57.00Mm 4Th ALT. PART | ||
| 3R3-11630-40-00 | Piston Kit 4Th (4Th O/S) ALT. PART | ||
| 2K6-11630-40-00 | Piston Kit 4Th (4Th O.S.) ALT. PART | ||
| 3R3-11630-30-00 | Piston Kit 3Rd (3Rd O/S) | ||
| 3R3-11630-20-00 | Piston Kit 2Nd (2Nd O/S) | ||
| 2K6-11630-20-00 | Piston Kit 2Nd ALT. PART | ||
| 2X3-11630-11-00 | Piston Kit 1St | ||
| 2K6-11630-10-00 | Piston Kit 1St ALT. PART | ||
| 2X3-11630-01-00 | Piston Kit Std (Std) | ||
| 3R3-11638-00-00 | Piston 4 O/S 1.00 (4Th O/S 1.00 | ||
| 3R3-11637-00-00 | Piston 3 O/S 0.75 (3Rd O/S 0.75 | ||
| 2K6-11636-00-00 | Piston 2 O/S 0.50 (56.50Mm 2Nd ALT. PART | ||
| 2K6-11611-00-00 | Ring, Piston Std (Std) | ||
| 3R3-11601-00-00 | Piston Ringset Std (Std) | ||
| 3R3-11601-10-00 | Piston Ringset 1St (1St O/S) | ||
| 3R3-11601-20-00 | Piston Ringset 2Nd (2Nd O/S) | ||
| 3R3-11601-30-00 | Piston Ringset 3Rd (3Rd O/S) | ||
| 3R3-11601-40-00 | Piston Ringset 4Th (4Th O/S) | ||
| 2K6-11611-40-00 | Ring, Piston 4Th (4Th O/S) ALT. PART | ||
| 2K6-11611-30-00 | Ring, Piston 3Rd (3Rd O/S) ALT. PART | ||
| 2K6-11611-20-00 | Ring, Piston 2Nd (2Nd O/S) ALT. PART | ||
| 2K6-11611-10-00 | Ring, Piston 1St (1St O/S) ALT. PART | ||
| 1 | 93310-216L2-00 | Bearing, Cylindrical | 1 |
| 1 | 137-11633-00-00 | Pin, Piston | 1 |
| 2 | 93450-17025-00 | Circlip | 2 |
| 1 | 93306-20529-00 | Bearing (B6205c4) | 1 |
| 1 | 93103-25125-00 | Oil Seal, Sw-Type | 1 |
| 1 | 93306-30421-00 | Bearing | 1 |
| 1 | 93103-28011-00 | Oil Seal, Sw-Type (93103-28100) | 1 |
| 1 | 93210-180A6-00 | O-Ring | 1 |
| 1 | 90387-20488-00 | Collar | 1 |
| 1W1-16111-00-00 | Gear, Pri Drive | ||
| 1 | 90282-05005-00 | Key, Straight | 1 |
| 1 | 90204-12007-00 | Washer, Spring | 1 |
| 1 | 90179-12244-00 | Nut, Specl Shape | 1 |
| 1 | 90280-03017-00 | Key, Woodruff | 1 |
| 90179-10257-00 | Nut, Specl Shape |
