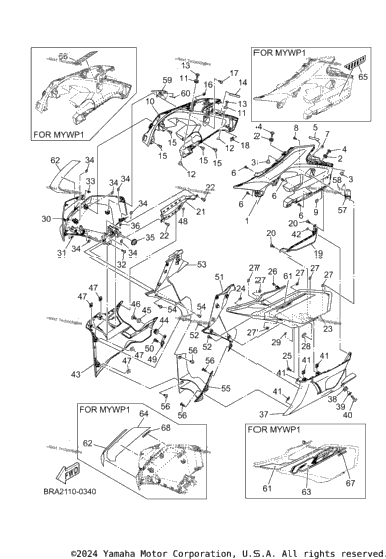

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | BRA-F172G-00-P0 | Panel 3 SM12 FOR DPBMC,MDNM8 | 1 |
| 0 | BRA-F172G-00-P1 | Panel 3 GBP1 FOR MYWP1 | 0 |
| 2 | 90480-12808-00 | Grommet | 2 |
| 2 | 90387-06899-00 | Collar | 2 |
| 2 | 90119-06810-00 | Bolt, With Washer | 2 |
| 1 | 90520-06013-00 | Damper, Plate | 1 |
| 4 | 97707-50016-00 | Screw, Truss Head Tapping | 4 |
| 1 | 90183-050A7-00 | Nut, Spring | 1 |
| 1 | 90160-05012-00 | Screw, Round Tapping | 1 |
| 1 | 90183-05807-00 | Nut, Spring | 1 |
| 1 | BRA-F172H-00-P0 | Panel 4 SM12 FOR DPBMC,MDNM8 | 1 |
| 0 | BRA-F172H-00-P1 | Panel 4 GBP1 FOR MYWP1 | 0 |
| 1 | BS7-F117V-00-00 | Cover 7 | 1 |
| 2 | 97707-50016-00 | Screw, Truss Head Tapping | 2 |
| 1 | BS7-F117W-00-00 | Cover 8 | 1 |
| 1 | BRA-F835U-01-P0 | Panel 1 UR FOR DPBMC | 1 |
| 0 | BRA-F835U-01-P1 | Panel 1 UR FOR MDNM8 | 0 |
| 0 | BRA-F835U-01-P2 | Panel 1 UR FOR MYWP1 | 0 |
| 1 | 44D-F8379-00-00 | Hook | 1 |
| 1 | 97707-50016-00 | Screw, Truss Head Tapping | 1 |
| 6 | 90183-05807-00 | Nut, Spring | 6 |
| 1 | 90480-01821-00 | Grommet | 1 |
| 1 | 90464-04004-00 | Clamp | 1 |
| 1 | BRA-F835V-01-P0 | Panel 2 UR FOR DPBMC | 1 |
| 0 | BRA-F835V-01-P1 | Panel 2 UR FOR MDNM8 | 0 |
| 0 | BRA-F835V-01-P2 | Panel 2 UR FOR MYWP1 | 0 |
| 0 | BS7-F8385-00-PB | Cover, Lower UR FOR MYWP1 | 0 |
| 1 | BS7-F8385-00-P3 | Cover, Under UR FOR DPBMC | 1 |
| 0 | BS7-F8385-00-P8 | Cover, Under UR FOR MDNM8 | 0 |
| 1 | 90480-12808-00 | Grommet | 1 |
| 1 | 90387-06899-00 | Collar | 1 |
| 1 | 90111-06117-00 | Bolt, Hexagon Socket Button | 1 |
| 4 | 90183-05807-00 | Nut, Spring | 4 |
| 1 | 90183-05M02-00 | Nut, Spring | 1 |
| 0 | B1X-F8395-00-P1 | Cover, Under 2 UR FOR MDNM8 | 0 |
| 1 | B1X-F8395-00-P0 | Cover, Under 2 UR FOR DPBMC | 1 |
| 0 | B1X-F8395-00-P7 | Cover, Under 2 UR FOR MYWP1 | 0 |
| 1 | BS7-F833E-00-00 | Bracket 8 | 1 |
| 1 | 95E32-06012-00 | Bolt, Flange Deep Recess | 1 |
| 1 | BS7-F836K-00-00 | Panel, Inner 1 | 1 |
| 1 | BS7-F836L-00-00 | Panel, Inner 2 | 1 |
| 1 | B1X-F836M-01-00 | Panel, Inner 3 | 1 |
| 1 | BRA-F8396-00-00 | Plate 1 | 1 |
| 1 | BRA-F8344-00-00 | Tape | 1 |
| 1 | BRA-F8397-00-00 | Plate 2 | 1 |
| 1 | BRA-F8393-00-00 | Graphic 3 UR FOR DPBMC | 1 |
| 0 | BRA-F8393-10-00 | Graphic 3 UR FOR MDNM8 | 0 |
| 0 | BRA-F8393-20-00 | Graphic 3 UR FOR MYWP1 | 0 |
| 1 | BRA-F8394-00-00 | Graphic 4 UR FOR DPBMC | 1 |
| 0 | BRA-F8394-10-00 | Graphic 4 UR FOR MDNM8 | 0 |
| 0 | BRA-F8394-20-00 | Graphic 4 UR FOR MYWP1 | 0 |
| 0 | BRA-F8398-00-00 | Graphic 5 FOR MYWP1 | 0 |
| 0 | BRA-F8399-00-00 | Graphic 6 FOR MYWP1 | 0 |
| 0 | BRA-F839A-00-00 | Graphic 7 FOR MYWP1 | 0 |
| 0 | BRA-F839E-00-00 | Graphic 8 FOR MYWP1 | 0 |
| 0 | BRA-F153E-00-00 | Emblem, Yamaha FOR MYWP1 | 0 |
