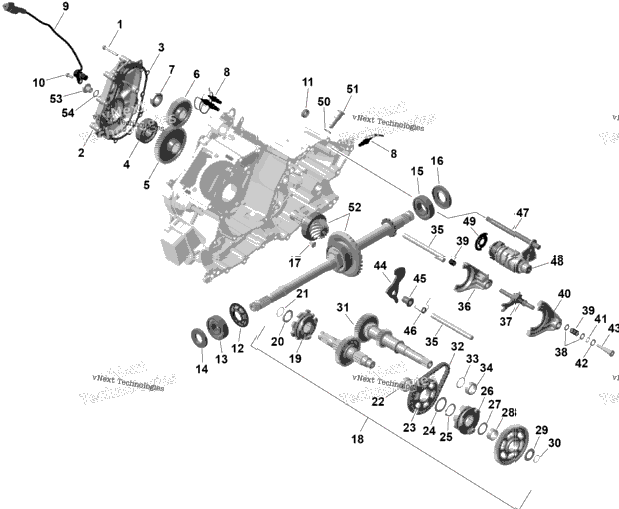

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 9 | 420440324 | Torx Flange Screw M6 X 45 | 9 |
| 1 | 420686891 | Gear Box Cover | 1 |
| 1 | 420651275 | Gasket Included in engine gasket set | 1 |
| 2 | 420932822 | Ball Bearing | 2 |
| 1 | 420235773 | Intermediate Gear 49 Teeth | 1 |
| 1 | 420235771 | Intermediate Gear 47 Teeth | 1 |
| 1 | 420842245 | Hex. Flange Nut M22X1 | 1 |
| 1 | 420640192 | Contact Screw M10 Ass'y With Cable | 1 |
| 1 | 420265723 | Speed Sensor | 1 |
| 1 | 420440164 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420250455 | Oil Seal | 1 |
| 1 | 420931940 | Oil Seal Included in engine gasket set | 1 |
| 1 | 420932822 | Ball Bearing | 1 |
| 1 | 420831178 | Oil Seal Included in engine gasket set | 1 |
| 1 | 420932580 | Ball Bearing | 1 |
| 1 | 420830753 | Oil Seal 32X60X7 Included in engine gasket set | 1 |
| 3 | 420240051 | Torx Screw M6X13 | 3 |
| 1 | 420820420 | Main Shaft Ass'y | 1 |
| 1 | 420257255 | Shifting Sleeve | 1 |
| 1 | 420227864 | Thrust Washer | 1 |
| 1 | 420931391 | O-Ring Included in engine gasket set | 1 |
| 2 | 420632359 | Needle Bearing | 2 |
| 1 | 420934190 | Pinion Gear 49 Teeth | 1 |
| 2 | 420626875 | Thrust Washer | 2 |
| 2 | 420945620 | Retaining Ring | 2 |
| 1 | 420257244 | Shifting Sleeve | 1 |
| 1 | 420427012 | Thrust Washer | 1 |
| 1 | 420632075 | Needle Bearing | 1 |
| 1 | 420627301 | Thrust Washer | 1 |
| 1 | 420230371 | O-Ring Included in engine gasket set | 1 |
| 420820416 | Countershaft | ||
| 1 | 420247591 | Distance Ring | 1 |
| 1 | 420631616 | O-Ring Included in engine gasket set | 1 |
| 2 | 420229242 | Dowel Pin 12X140 | 2 |
| 1 | 420657695 | Shift Fork | 1 |
| 1 | 420657707 | Shifting Block Ass'y | 1 |
| 3 | 420827590 | Thrust Washer | 3 |
| 2 | 420638151 | Spring | 2 |
| 1 | 420657685 | Gearshift Fork Ass'y | 1 |
| 1 | 420245330 | Snap Ring | 1 |
| 1 | 420250016 | Aluminum Sealing Ring | 1 |
| 1 | 420240921 | Bearing Screw M12X1.5 | 1 |
| 1 | 420657760 | Parking Lock Lever | 1 |
| 1 | 420647132 | Collar Sleeve | 1 |
| 1 | 420638185 | Helical Spring | 1 |
| 1 | 420820346 | Shift Shaft Ass'y | 1 |
| 1 | 420657666 | Shifting Drum Ass'y | 1 |
| 1 | 420637955 | Isolating Washer | 1 |
| 1 | 420430624 | Oil Pressure Regulator Gasket Ring Included in engine gasket set | 1 |
| 1 | 420441395 | Index Screw Ass'y M16X1.5 | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 420241662 | Plug Screw M14 X 1.5 | 1 |
| 1 | 420650352 | O-Ring Included in engine gasket set | 1 |
