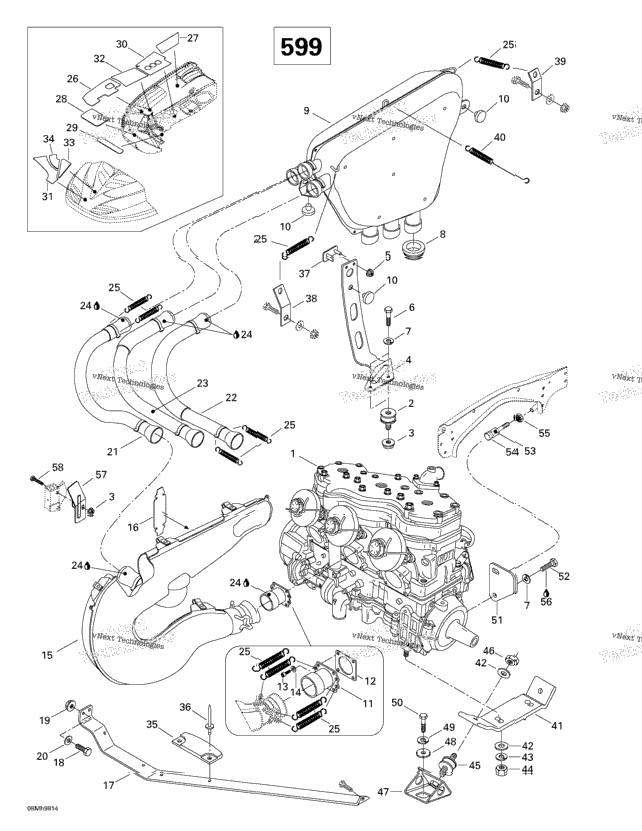

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 400508700 | Engine <<599>> Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 570016100 | Rubber Mount Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 3 | 228781045 | Elastic Flange Stop Nut M8 Formula III 600. Formula III 600 R. Formula III 600 LT. | 3 |
| 514046800 | Support (Muffler) Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 2 | 228761045 | Elastic Flange Nut M6 Formula III 600. Formula III 600 R. Formula III 600 LT. | 2 |
| 222081265 | Screw Hex. M8 x 12 Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 3 | 224781140 | Lock Washer 8 mm Formula III 600. Formula III 600 R. Formula III 600 LT. | 3 |
| 570066200 | Exhaust Grommet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 514052758 | Muffler Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 3 | 570048700 | Rubber Bumper Formula III 600. Formula III 600 R. Formula III 600 LT. | 3 |
| 420978816 | Exhaust Socket Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 3 | 420850552 | Gasket Formula III 600. Formula III 600 R. Formula III 600 LT. | 3 |
| 12 | 222962565 | Socket Head Screw M6 x 25 Formula III 600. Formula III 600 R. Formula III 600 LT. | 12 |
| 12 | 224761110 | Lock Washer 6 mm Formula III 600. Formula III 600 R. Formula III 600 LT. | 12 |
| 514052400 | Tuned Pipe Includes 15 - 16. Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 570068600 | Rubber Pad Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 514098900 | RH Tuned Pipe Support Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 514098902 | LH Tuned Pipe Support Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 2 | 222052065 | Screw Hex. M5 x 20 Formula III 600. Formula III 600 R. Formula III 600 LT. | 2 |
| 2 | 228751045 | Elastic Flange Nut M5 Formula III 600. Formula III 600 R. Formula III 600 LT. | 2 |
| 2 | 391301700 | Washer Formula III 600. Formula III 600 R. Formula III 600 LT. | 2 |
| 514052500 | Tail Pipe (MAG) Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 514052600 | Tail Pipe (Central) Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 514052700 | Tail Pipe (PTO) Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 26 | 415107100 | Spring Formula III 600. Formula III 600 R. Formula III 600 LT. | 26 |
| 514098000 | Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415083800 | RH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415083900 | Leaf Valve Ø16 X 0.114 (C36) Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415111900 | Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415115000 | Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415112300 | RH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415112400 | LH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415084000 | Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415112500 | RH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415112600 | LH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415114800 | RH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415114900 | LH Reflective Sheet Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 570044100 | Rubber Pad Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 8 | 390406500 | Pop Rivet 3/16" Formula III 600. Formula III 600 R. Formula III 600 LT. | 8 |
| 517294300 | Bracket Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 1 | 514049700 | SPRING BRACKET Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 514051000 | Spring Bracket Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 415100300 | Spring Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 512056400 | Engine Support Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 8 | 224001211 | Flat Washer 10 mm Formula III 600. Formula III 600 R. Formula III 600 LT. | 8 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 4 | 228001045 | Hex. Nut M10 Formula III 600. Formula III 600 R. Formula III 600 LT. | 4 |
| 570127700 | RUBBER MOUNT Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 4 | 228501045 | Elastic Stop Nut M10 Formula III 600. Formula III 600 R. Formula III 600 LT. | 4 |
| 512050900 | Engine Support Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 4 | 512056700 | Lock Washer Formula III 600. Formula III 600 R. Formula III 600 LT. | 4 |
| 4 | 222002565 | Hex. Screw M10 x 25 Formula III 600. Formula III 600 R. Formula III 600 LT. | 4 |
| 1 | 512056000 | STOPPER PLATE Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 1 | 222081665 | Hex. Screw M8 x 16 Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 512056900 | Stopper Screw Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 570049500 | Stopper Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 1 | 228020045 | Nut M12 Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 1 | 413707400 | Loctite 271, 10cc Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
| 514050800 | Support Formula III 600. Formula III 600 R. Formula III 600 LT. | ||
| 1 | 222085065 | Hex. Screw M8 x 50 Formula III 600. Formula III 600 R. Formula III 600 LT. | 1 |
