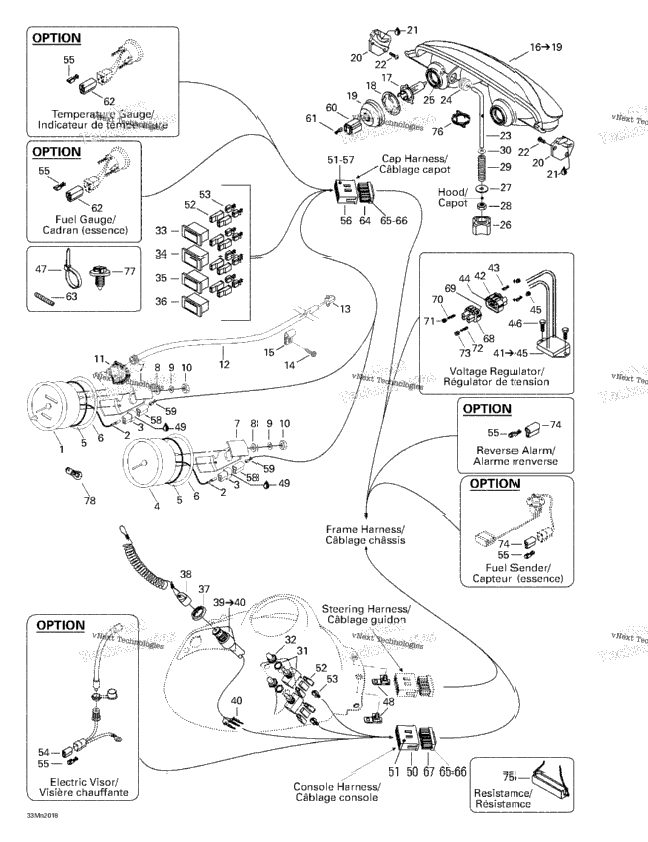

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515175335 | Speedometer, Kmh | ||
| 515175336 | Speedometer, Mph | ||
| 409210000 | MALE TERMINAL | ||
| 409204500 | MALE HOUSING | ||
| 515175340 | Tachometer | ||
| 414807100 | O-Ring | ||
| 517258500 | Washer | ||
| 414806500 | Case Holder | ||
| 4 | 414806800 | Flat Washer | 4 |
| 414806700 | Lock Washer | ||
| 414806900 | Nut | ||
| 515175400 | Drive Angle | ||
| 415101500 | Speedometer Cable | ||
| 1 | 572010100 | SPEEDO DRIVE INSERT | 1 |
| XXXX | Not Available As Spare Part - Hex. Tapping Screw | ||
| 3 | 414176000 | Open Clamp | 3 |
| 1 | 515175158 | Halogen Headlamp Includes 16 - 19. | 1 |
| 2 | 410504401 | Halogen Bulb | 2 |
| 2 | 410608300 | BULB HOLDER | 2 |
| 410607100 | PROTECTOR CAP | ||
| 517289300 | RH Support | ||
| 517289400 | LH Support | ||
| 413707500 | Grease Tube Lmz, 400 G | ||
| 732601315 | Headlamp Screw | ||
| 1 | 517295800 | ADJUSTER ROD | 1 |
| 1 | 415100800 | Grommet | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 572100800 | Handle | 1 |
| 1 | 224060251 | Washer | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 415100600 | SPRING | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 410107300 | Switch (Heating Grip) | 2 |
| 2 | 515175281 | Switch Cover | 2 |
| 410109500 | Pilot Lamp (Red) | ||
| 410109600 | Pilot Lamp (Blue) | ||
| 410109700 | Pilot Lamp, Engine Temperature | ||
| 410113300 | Pilot Lamp, Dess | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 515166900 | Dess Cap | 1 |
| 515175145 | DESS SWITCH Includes 39 - 40. | ||
| 3 | 515175232 | Male Terminal | 3 |
| 515175491 | Voltage Regulator Includes 41 - 45. | ||
| 409208000 | Female Terminal Housing (4 circuits) | ||
| 4 | 278000994 | FEMALE TERMINAL | 4 |
| 409013400 | Female Lock | ||
| 278000996 | WIRE SEAL | ||
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership | 1 |
| 2 | 515175283 | Housing Support | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 515175351 | MALE TERMINAL HOUSING, 15 CIRCUITS | 1 |
| 1 | 515175232 | Male Terminal | 1 |
| 14 | 409010400 | Female Terminal Housing, 1 Circuit | 14 |
| 1 | 409010100 | Female Terminal | 1 |
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 1 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS | 1 |
| 1 | 515175273 | MALE TERMINAL | 1 |
| 2 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 2 |
| 409202700 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | ||
| 515175320 | FEMALE TERMINAL | ||
| 409204300 | Female Housing | ||
| 409902100 | Tubing 6 mm | ||
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 515175350 | Female Terminal Housing, 13 Circuits | 1 |
| XXXX | Not Available As Spare Part - Female Terminal | ||
| 515175349 | FEMALE TERMINAL HOUSING, 13 CIRCUITS | ||
| 409207700 | Male Terminal Housing (4 circuits) | ||
| 409013100 | Male Lock | ||
| 409010900 | Male Terminal | ||
| 409208300 | Seal | ||
| 409013000 | Male Terminal | ||
| 1 | 515175241 | Resistance | 1 |
| 1 | 515175324 | SPRING MX Z 500. MX Z 700. | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 410504200 | INSTRUMENTATION BULB |
