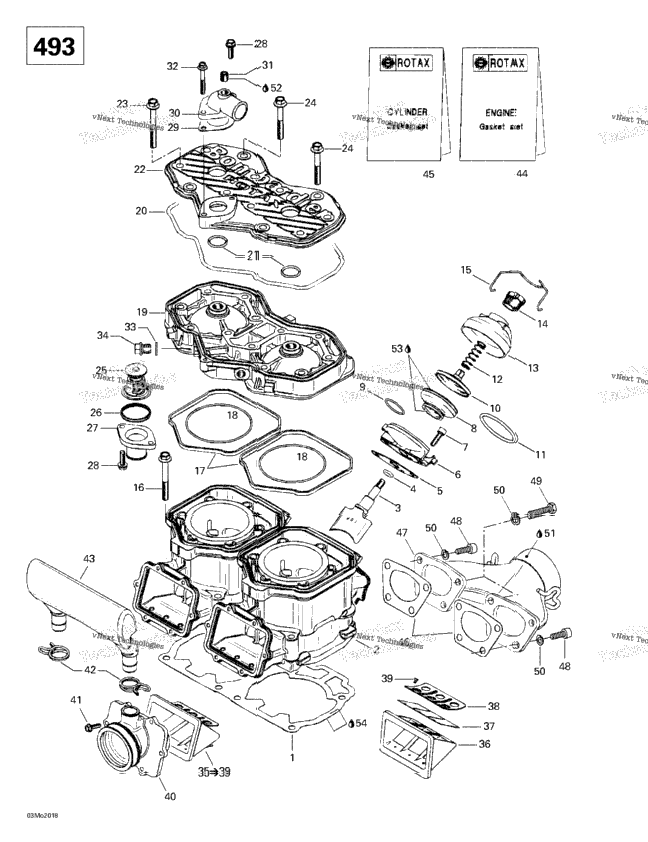

Каталог / Snowmobile / Ski-Doo / 2000 / MX Z 700 / Cylinder, Exhaust Manifold, Reed Valve

Список запчастей

№	Артикул	Название	Кол-во
1	420931589	DOUBLE GASKET 0.8 MM MX Z 500. MX Z 500 SB (Black).	1
1	420931960	DOUBLE GASKET 0.7 MM MX Z 500. MX Z 500 SB (Black).	1
1	420931587	DOUBLE GASKET 0.6 MM MX Z 500. MX Z 500 SB (Black).	1
1	420931588	DOUBLE GASKET 0.5 MM MX Z 500. MX Z 500 SB (Black).	1
	420931586	DOUBLE GASKET 0.4 MM MX Z 500. MX Z 500 SB (Black).
	420923855	Cylinder with Sleeve MX Z 500. MX Z 500 SB (Black).
	421000568	REBUILD-CYLINDER 493 2000
	420854490	EXHAUST VALVE MX Z 500. MX Z 500 SB (Black).
2	420430110	O-Ring MX Z 500. MX Z 500 SB (Black).	2
2	420250239	Gasket MX Z 500. MX Z 500 SB (Black).	2
	420854265	Valve Housing MX Z 500. MX Z 500 SB (Black).
4	205062044	Socket Head Screw M6 X 20 MX Z 500. MX Z 500 SB (Black).	4
2	290260723	Bellows MX Z 500. MX Z 500 SB (Black).	2
2	420838253	Spring Clamp MX Z 500. MX Z 500 SB (Black).	2
2	420854447	Exhaust Valve MX Z 500. MX Z 500 SB (Black).	2
2	290239048	Hose Spring MX Z 500. MX Z 500 SB (Black).	2
	420239948	SPRING MX Z 500. MX Z 500 SB (Black).
2	420911551	Valve Cover MX Z 500. MX Z 500 SB (Black).	2
2	420241220	Adjuster Screw MX Z 500. MX Z 500 SB (Black).	2
2	420838082	Spring Clip MX Z 500. MX Z 500 SB (Black).	2
8	420841999	Hex. Screw M8 x 68.5 MX Z 500. MX Z 500 SB (Black).	8
2	420931590	Rubber Ring MX Z 500. MX Z 500 SB (Black).	2
2	420831792	O-Ring MX Z 500. MX Z 500 SB (Black).	2
	420923880	Cylinder Head (Silver) MX Z 500. MX Z 500 SB (Black).
1	290950320	O-Ring MX Z 500. MX Z 500 SB (Black).	1
2	420430782	O-Ring MX Z 500. MX Z 500 SB (Black).	2
1	420923460	Cylinder Head Cover, Silver MX Z 500. MX Z 500 SB (Black).	1
10	420841306	Hex. Collar Screw M8 X 65 MX Z 500. MX Z 500 SB (Black).	10
2	420941621	Hex. Collar Screw M8 X 56.5 MX Z 500. MX Z 500 SB (Black).	2
1	414834100	Thermostat 42 Deg MX Z 500. MX Z 500 SB (Black).	1
1	420931270	SEALING RING MX Z 500. MX Z 500 SB (Black).	1
1	420922025	BENT OUTLET SOCKET MX Z 500. MX Z 500 SB (Black).	1
3	420941250	Hex. Tapping Screw M6 X 20 MX Z 500. MX Z 500 SB (Black).	3
1	420850338	Gasket MX Z 500. MX Z 500 SB (Black).	1
1	420922062	BENT OUTLET SOCKET MX Z 500. MX Z 500 SB (Black).	1
	420240480	PLUG SCREW MX Z 500. MX Z 500 SB (Black).
	420941451	HEX. COLLAR SCREW M6 X 40 MX Z 500. MX Z 500 SB (Black).
	XXXX	Not Available As Spare Part - Gasket Ring MX Z 500. MX Z 500 SB (Black).
	XXXX	Not Available As Spare Part - Plug Screw M12 x 1.5 MX Z 500. MX Z 500 SB (Black).
2	420924519	Reed Valve Ass'y Includes 35 - 39. MX Z 500. MX Z 500 SB (Black).	2
	XXXX	Not Available As Spare Part - Reed Valve Housing MX Z 500. MX Z 500 SB (Black).
4	420924532	Reed Pedal MX Z 500. MX Z 500 SB (Black).	4
4	420924539	Reed Pedal Stop MX Z 500. MX Z 500 SB (Black).	4
12	420941215	Phillips Screw M3 X 5 MX Z 500. MX Z 500 SB (Black).	12
	420867860	CARBURETOR SOCKET MX Z 500. MX Z 500 SB (Black).
12	420941925	Tapping Screw M5 X 16 MX Z 500. MX Z 500 SB (Black).	12
2	420851440	CLAMP MX Z 500. MX Z 500 SB (Black).	2
	420867815	Intake Resonator MX Z 500. MX Z 500 SB (Black).
	420888720	Engine Gasket Set MX Z 500. MX Z 500 SB (Black).
	420888725	Cylinder Gasket Set MX Z 500. MX Z 500 SB (Black).
	420931615	GASKET MX Z 500. MX Z 500 SB (Black).
	420973650	Exhaust Manifold MX Z 500. MX Z 500 SB (Black).
6	205082544	Socket Head Screw M8 X 25 MX Z 500. MX Z 500 SB (Black).	6
2	207182044	Hex. Screw M8 X 20 MX Z 500. MX Z 500 SB (Black).	2
8	234181401	Lock Washer 8 mm MX Z 500. MX Z 500 SB (Black).	8
1	413710300	Loctite 17914, Sealant, 80 ml MX Z 500. MX Z 500 SB (Black).	1
1	293800060	Loctite 243, 10 ml MX Z 500. MX Z 500 SB (Black).	1
1	413707000	Dow Corning 111, 150 g MX Z 500. MX Z 500 SB (Black).	1
1	219704456	Était/Was 293800038 Loctite 518, 50 ml MX Z 500. MX Z 500 SB (Black).	1
