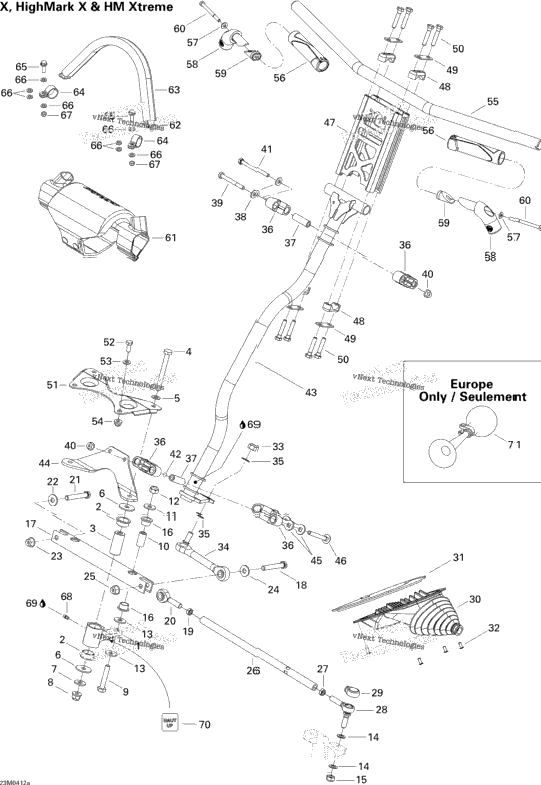

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 506151627 | RH Swivel Arm X, Highmark X & HM Xtreme | ||
| 506151628 | LH Swivel Arm X, Highmark X & HM Xtreme | ||
| 4 | 415041100 | CUSHION | 4 |
| 2 | 506151272 | SWIVEL PIVOT | 2 |
| 2 | 207009086 | HEX. SCREW M10 X 90 | 2 |
| 2 | 503183800 | Washer | 2 |
| 4 | 506150000 | Washer 10 mm | 4 |
| 2 | 506151251 | Washer | 2 |
| 2 | 732610084 | Flange Nut M10 | 2 |
| 2 | 207005544 | Hex. Screw M10 X 55 | 2 |
| 2 | 506151273 | Pivot Bar | 2 |
| 224002251 | FLAT WASHER | ||
| 2 | 233601416 | Elastic Locking Nut M10 X 1.5 | 2 |
| 4 | 250200032 | Washer X, Highmark X & HM Xtreme | 4 |
| 4 | 503175800 | Washer | 4 |
| 2 | 232501416 | Elastic Flange Nut M10 | 2 |
| 4 | 506150200 | Bushing Swivel | 4 |
| 1 | 506151328 | SWIVEL BAR | 1 |
| 1 | 207006544 | Hex. Screw M10 X 1.5 X 65 | 1 |
| 2 | 250100016 | LH Threaded Hex. Jam Nut M10 | 2 |
| 506151810 | LH Ball Joint | ||
| XXXX | Not Available As Spare Part - Hex. Screw M10 X 45 | ||
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 1 | 506151375 | TIE-ROD | 1 |
| 2 | 732610010 | RH Threaded Hex. Jam Nut M10 | 2 |
| 506151811 | Ball Joint | ||
| 2 | 506151650 | PROTECTION CAP | 2 |
| 1 | 506151725 | RH Tie-Rod Cap | 1 |
| 1 | 506151726 | LH Tie-Rod Cap | 1 |
| 1 | 506151356 | RH RETAINER RING | 1 |
| 506151357 | LH RETAINER RING | ||
| 8 | 390402200 | Pop Rivet 3/16" | 8 |
| 1 | 232501416 | Elastic Flange Nut M10 | 1 |
| 1 | 506151621 | BALL JOINT, DOUBLE | 1 |
| 2 | 503175800 | Washer | 2 |
| 4 | 506150400 | Housing Half | 4 |
| 4 | 506150500 | Housing Bushing | 4 |
| 2 | 503189157 | Washer | 2 |
| 1 | 207087044 | Hex. Screw M8 X 70 | 1 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 207088044 | Hex. Screw M8 X 80 | 1 |
| 2 | 506151140 | O-RING | 2 |
| 506151772 | Main Tube X, Highmark X & HM Xtreme | ||
| 506151330 | STEERING SHAFT SUPPORT | ||
| 2 | 506150600 | Stopper Plate | 2 |
| 2 | 207787044 | Carriage Bolt M8 X 70 | 2 |
| 1 | 506151848 | Handlebar Extension X, Highmark X & HM Xtreme | 1 |
| 4 | 506151622 | Steering Support X, Highmark X & HM Xtreme | 4 |
| 4 | 506151196 | Reinforcement X, Highmark X & HM Xtreme | 4 |
| 8 | 250000074 | Hex. Screw With Nylon M8 X 40 X, Highmark X & HM Xtreme | 8 |
| 1 | 506151536 | PIVOT SUPPORT | 1 |
| 2 | 207182044 | Hex. Screw M8 X 20 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 506151782 | HANDLE BAR X, Highmark X & HM Xtreme | ||
| 506151637 | HANDLE GRIP X, Highmark X & HM Xtreme | ||
| 2 | 250200039 | Flat Washer | 2 |
| 506151837 | Short J-hook X, Highmark X & HM Xtreme | ||
| 506151839 | Wedge Lock X, Highmark X & HM Xtreme | ||
| 207067084 | HEX. SCREW M6 X 70 | ||
| 1 | 506151889 | STEERING PAD, YELLOW Highmark X | 1 |
| 1 | 415095500 | Tie-Down | 1 |
| 1 | 415090200 | Grip | 1 |
| 2 | 506151792 | Support Plate, Black | 2 |
| 2 | 207662084 | Hex. Flange Screw M6 X 20 | 2 |
| 8 | 234061410 | Flat Washer 6 mm | 8 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 2 | 408200700 | Grease Fitting | 2 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 516001750 | Upper Decal X, Highmark X & HM Xtreme | ||
| 1 | 415040700 | Horn | 1 |
