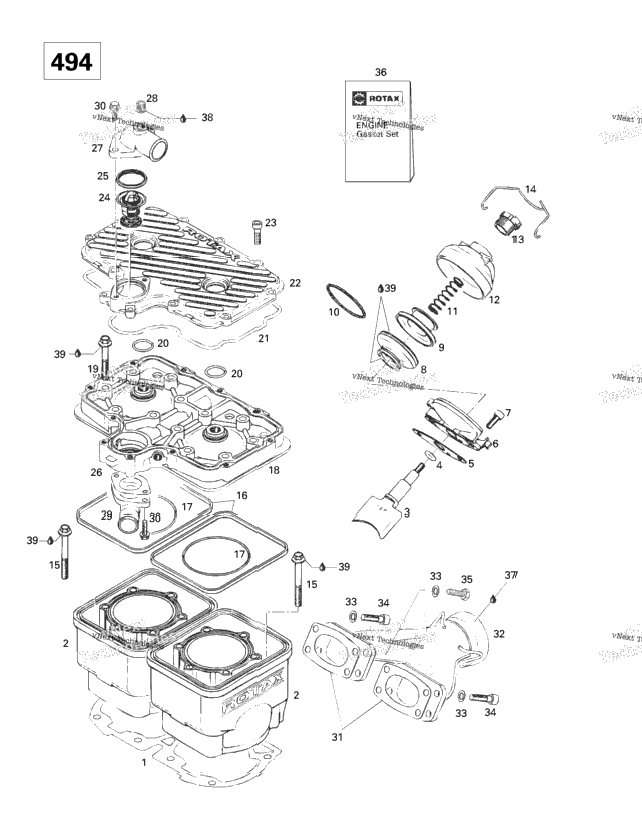

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420931361 | Gasket Double 0.4 mm Formula 500. Formula 500 Deluxe. | ||
| 420923617 | Cylinder With Sleeve Ass'y Formula 500. Formula 500 Deluxe. | ||
| 420854300 | EXHAUST VALVE Formula 500. Formula 500 Deluxe. | ||
| 2 | 420430110 | O-Ring Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420250234 | Gasket Formula 500. Formula 500 Deluxe. | 2 |
| 420854265 | Valve Housing Formula 500. Formula 500 Deluxe. | ||
| 4 | 420241236 | Socket Head Screw M6 X 16 Formula 500. Formula 500 Deluxe. | 4 |
| 2 | 420260728 | Bellows Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420253258 | Exhaust Valve Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420239043 | Spring Formula 500. Formula 500 Deluxe. | 2 |
| 420239946 | Spring Formula 500. Formula 500 Deluxe. | ||
| 2 | 420911551 | Valve Cover Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420241220 | Adjuster Screw Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420838082 | Spring Clip Formula 500. Formula 500 Deluxe. | 2 |
| 8 | 420841996 | Hex. Screw M8 x 68.5 Formula 500. Formula 500 Deluxe. | 8 |
| 2 | 420850040 | RUBBER RING Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 420831792 | O-Ring Formula 500. Formula 500 Deluxe. | 2 |
| 420923163 | Cylinder Head (Yellow) Formula 500. Formula 500 Deluxe. | ||
| 420240326 | Hex. Flange Screw M8 X 53.5 Formula 500. Formula 500 Deluxe. | ||
| 2 | 420430782 | O-Ring Formula 500. Formula 500 Deluxe. | 2 |
| 420931260 | O-Ring Formula 500. Formula 500 Deluxe. | ||
| 420923620 | Cylinder Head (Yellow) Formula 500. Formula 500 Deluxe. | ||
| 11 | 222962565 | Socket Head Screw M6 x 25 Formula 500. Formula 500 Deluxe. | 11 |
| 1 | 414834100 | Thermostat 42 Deg Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420931270 | SEALING RING Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420850336 | Gasket 1.0 mm Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420922062 | BENT OUTLET SOCKET Formula 500. Formula 500 Deluxe. | 1 |
| 420240480 | PLUG SCREW Formula 500. Formula 500 Deluxe. | ||
| 420922480 | Bent Outlet Socket Formula 500. Formula 500 Deluxe. | ||
| 4 | 420941250 | Hex. Tapping Screw M6 X 20 Formula 500. Formula 500 Deluxe. | 4 |
| 420850535 | Gasket Formula 500. Formula 500 Deluxe. | ||
| 420973228 | Exhaust Manifold Formula 500. Formula 500 Deluxe. | ||
| 8 | 224781140 | Lock Washer 8 mm Formula 500. Formula 500 Deluxe. | 8 |
| 6 | 222983065 | Socket Head Screw M8 x 30 Formula 500. Formula 500 Deluxe. | 6 |
| 2 | 222082565 | Hex. Screw M8 x 25 Formula 500. Formula 500 Deluxe. | 2 |
| 420994226 | Gasket Set Formula 500. Formula 500 Deluxe. | ||
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml Formula 500. Formula 500 Deluxe. | 1 |
| 413707100 | Sealant, 100 gr Formula 500. Formula 500 Deluxe. | ||
| 1 | 413707000 | Dow Corning 111, 150 g Formula 500. Formula 500 Deluxe. | 1 |
