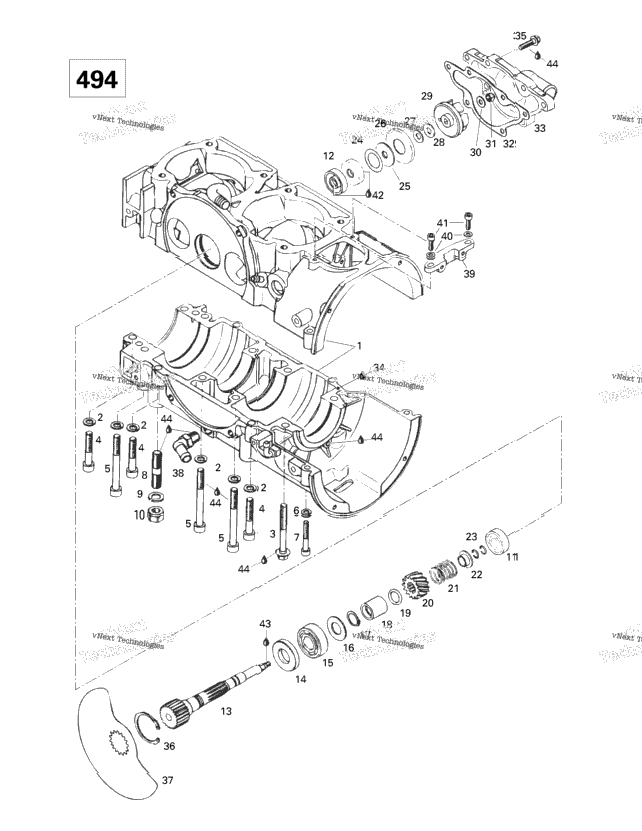

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420888011 | Crankcase Ass'y Includes 1 - 7. Formula 500. Formula 500 Deluxe. | ||
| 12 | 420945752 | Lock Washer 8 mm Formula 500. Formula 500 Deluxe. | 12 |
| 2 | 420841306 | Hex. Collar Screw M8 X 65 Formula 500. Formula 500 Deluxe. | 2 |
| 420841561 | Socket Head Screw M8 X 45 Formula 500. Formula 500 Deluxe. | ||
| 6 | 420841831 | ALLEN SCREW M8 X 75 Formula 500. Formula 500 Deluxe. | 6 |
| 420945751 | WASHER-LOCK DIN.128 Formula 500. Formula 500 Deluxe. | ||
| 420241816 | SOCKET HEAD SCREW M6 X 40 Formula 500. Formula 500 Deluxe. | ||
| 420940190 | Stud M10 X 29/20 Formula 500. Formula 500 Deluxe. | ||
| 420945753 | Lock Washer Formula 500. Formula 500 Deluxe. | ||
| 3 | 228001045 | Hex. Nut M10 Formula 500. Formula 500 Deluxe. | 3 |
| 1 | 420932797 | Ball Bearing Formula 500. Formula 500 Deluxe. | 1 |
| 420850710 | Oil Seal Formula 500. Formula 500 Deluxe. | ||
| 420837242 | Rotary Valve Shaft Formula 500. Formula 500 Deluxe. | ||
| 420930580 | OIL SEAL Formula 500. Formula 500 Deluxe. | ||
| 1 | 405406400 | Ball Bearing «6203» Formula 500. Formula 500 Deluxe. | 1 |
| 420227439 | SHIM Formula 500. Formula 500 Deluxe. | ||
| 1 | 420845450 | SNAP RING Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420847282 | SPACER BUSHING Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420831500 | O-Ring Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420935735 | Sprocket 14 Teeth Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420938810 | SPRING Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420827430 | SPRING SEAT Formula 500. Formula 500 Deluxe. | 1 |
| 2 | 420845160 | CIRCLIP Formula 500. Formula 500 Deluxe. | 2 |
| 1 | 420944462 | SHIM Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420850890 | Rubber Washer Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420827970 | Supporting Plate Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420227945 | Thrust Washer Formula 500. Formula 500 Deluxe. | 1 |
| 420227155 | Washer Formula 500. Formula 500 Deluxe. | ||
| 420922036 | WATER IMPELLER Formula 500. Formula 500 Deluxe. | ||
| 1 | 224061121 | Flat Washer Formula 500. Formula 500 Deluxe. | 1 |
| 420842042 | Locking Nut M6 Formula 500. Formula 500 Deluxe. | ||
| 420931355 | Gasket Formula 500. Formula 500 Deluxe. | ||
| 420922551 | Water Pump Housing Formula 500. Formula 500 Deluxe. | ||
| 413707100 | Sealant, 100 gr Formula 500. Formula 500 Deluxe. | ||
| 6 | 420240031 | Hex. Screw M6 X 25 Formula 500. Formula 500 Deluxe. | 6 |
| 1 | 420845260 | Snap Ring Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420924502 | ROTARY VALVE, 159 Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420922245 | Angular Tube Formula 500. Formula 500 Deluxe. | 1 |
| 420851280 | Fixation Formula 500. Formula 500 Deluxe. | ||
| 420827800 | WASHER Formula 500. Formula 500 Deluxe. | ||
| 2 | 420240181 | Socket Head Screw M5 X 20 Formula 500. Formula 500 Deluxe. | 2 |
| 1 | 413707000 | Dow Corning 111, 150 g Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 420899788 | Loctite 648, 10 ml Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 413703000 | Loctite 242, 10 cc Formula 500. Formula 500 Deluxe. | 1 |
