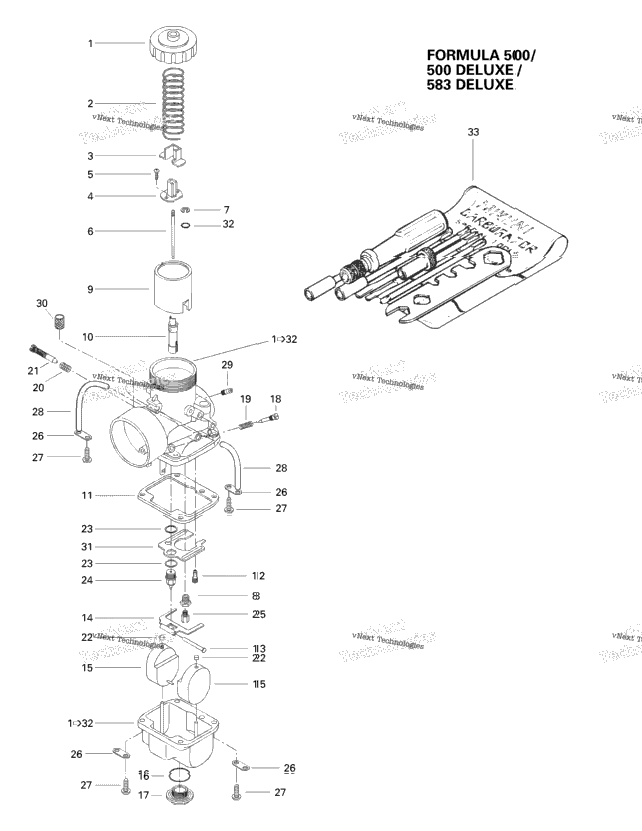

Список запчастей

№	Артикул	Название	Кол-во
	403134000	Carburetor VM 38-378 (PTO) Includes 1 - 32. Formula 500. Formula 500 Deluxe.
	403134100	Carburetor VM 38-379 (MAG) Formula 500. Formula 500 Deluxe.
	403135900	Carburetor VM 38-386 (PTO) Includes 1 - 32. Formula 583 Deluxe.
	403136000	Carburetor VM 38-387 (MAG) Formula 583 Deluxe.
	404105100	COVER Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404154800	Spring Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
2	404122100	Cover Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
2	404160800	CONNECTOR Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
4	404121300	Screw With Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	4
	404161500	Jet Needle J8-6DHY48 Formula 500. Formula 500 Deluxe.
	404159900	Jet Needle J8 6DEY4 Formula 583 Deluxe.
2	404152400	E-Ring Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
2	404105500	Guide Screw Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404131300	Piston Valve CA 2.5 Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
	404160900	Needle Jet NJ-480-Q3 Formula 500. Formula 500 Deluxe.
	404156900	Needle Jet NJ-480-P7 Formula 583 Deluxe.
	404104700	GASKET Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404109500	PILOT JET 50 Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
2	404103300	Lever Pin Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
2	404105000	FLOAT LEVER Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404105400	FLOAT Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404101500	O-RING Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404105600	DRAIN PLUG SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404149000	AIR SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404139800	SPRING Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404101700	Spring Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404102800	IDLE SPEED SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
4	404105800	Cap Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	4
4	404101600	Seat Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	4
2	404147400	Needle Valve 1.5 Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
1	404101400	Main Jet 330 Formula 500. Formula 500 Deluxe.	1
1	404100400	Main Jet MJ 270 Formula 583 Deluxe.	1
1	404101200	Main Jet MJ 300 (PTO) Formula 500. Formula 500 Deluxe.	1
1	404100600	Main Jet 260 Formula 583 Deluxe.	1
4	404103000	PLATE Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	4
8	404102000	Screw With Lock Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	8
	404109800	Hose Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404153400	Nipple Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404158900	Filter Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
	XXXX	Not Available As Spare Part - Baffle Plate Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
2	404117000	Packing Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.	2
	404112000	TOOL KIT Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
	861761800	High Altitude Kit, (Not Shown) Formula 500.
	861761700	High Altitude Kit, (Not Shown) Formula 500 Deluxe.
	861761600	High Altitude Kit (Not Shown) Formula 583 Deluxe.
