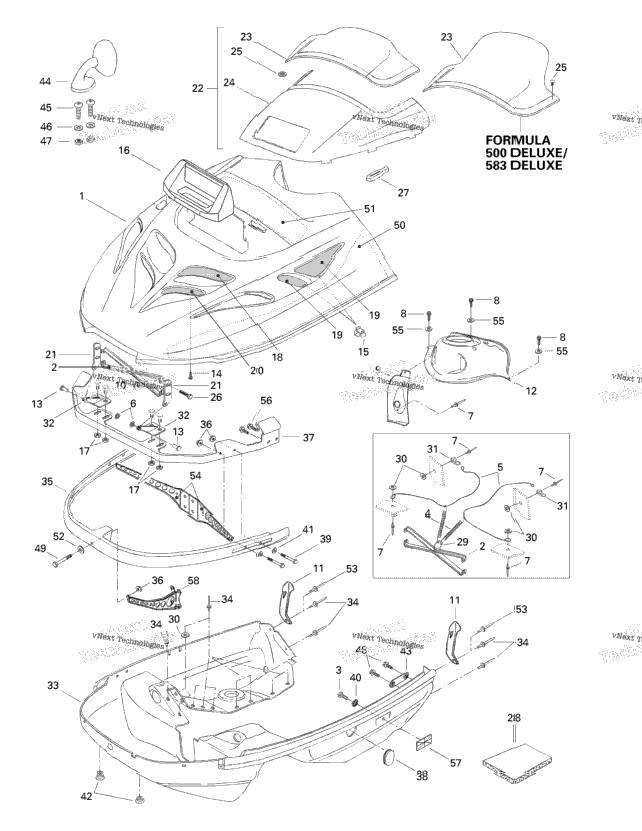

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 572077180 | Cab (Viper Red) Formula 500. Formula 500 Deluxe. | ||
| 572077181 | Cab (Royal Violet) Formula Z 583. Formula 583 Deluxe. | ||
| 517278100 | Hood Reinforcement | ||
| 2 | 222851065 | SCREW-PAN HD.PH.DIN.7985A | 2 |
| 414763300 | Spring | ||
| 2 | 415093900 | RETAINER CABLE | 2 |
| 2 | 389804300 | Push Nut | 2 |
| 5 | 390409600 | Pop Rivet 3/16" | 5 |
| 3 | 732600030 | Screw | 3 |
| 572052101 | Handle Dash Formula 500. Formula Z 583. | ||
| 572052100 | Dash-Handle Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 4 | 228751045 | Elastic Flange Nut M5 | 4 |
| 2 | 570027100 | Hood Latch | 2 |
| 572052702 | Dash-Switch | ||
| 390906200 | FLAT HEAD STEEL RIVET | ||
| 8 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 | 8 |
| 8 | 414227300 | Clip | 8 |
| 415044800 | Sealing Foam | ||
| 4 | 228761045 | Elastic Flange Nut M6 | 4 |
| 517298900 | RH Upper Grill | ||
| 517299000 | LH Upper Grill | ||
| 517280200 | Side Grill (Black) | ||
| 517299100 | RH Front Grill | ||
| 517299200 | LH Front Grill | ||
| 2 | 517261100 | UPPPER HINGE | 2 |
| 580661300 | Windshield Ass'y Includes 22 - 25. Formula 500. Formula Z 583. | ||
| 580659900 | Medium Windshield Ass'y Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 414795900 | WINDSHIELD LOW Formula 500. Formula Z 583. | ||
| 415050500 | Medium Windshield Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 572101800 | Windshield Support | ||
| 9 | 732610072 | Push Nut Formula 500. Formula Z 583. | 9 |
| 9 | 414939500 | Dart Formula 500 Deluxe. Formula 583 Deluxe. | 9 |
| 4 | 222051665 | Hex. Screw M5 x 16 | 4 |
| 6 | 570023800 | Windshield Latch | 6 |
| 414632400 | Acoustic Foam | ||
| 414631900 | Acoustic Foam | ||
| 415058300 | RING | ||
| 1 | 517124300 | Washer | 1 |
| 517262800 | Bracket | ||
| 517289900 | Welded Lower Hinge | ||
| 572076213 | Bottom Pan (Viper Red) Formula 500. Formula 500 Deluxe. | ||
| 572076214 | Bottom Pan (Royal Violet) Formula Z 583. Formula 583 Deluxe. | ||
| 24 | 390909800 | Rivet Formula 500. Formula 500 Deluxe. | 24 |
| 26 | 390906800 | Pop Rivet 3/16" Formula Z 583. Formula 583 Deluxe. | 26 |
| 517265400 | Front Bumper | ||
| 5 | 228761045 | Elastic Flange Nut M6 | 5 |
| 517296600 | Hinge Bracket | ||
| 570053701 | Pan Bottom Cap (Viper Red) Formula 500. Formula 500 Deluxe. | ||
| 570053703 | Pan Bottom Cap (Royal Violet) Formula Z 583. Formula 583 Deluxe. | ||
| 4 | 222063065 | Hex. Screw M6 x 30 | 4 |
| 224151101 | WASHER-LOCK SERRATED DIN.6798A | ||
| 4 | 224061121 | Flat Washer | 4 |
| 2 | 572072100 | CAP | 2 |
| 517267100 | Side Bracket | ||
| 1 | 414971910 | RH MIRROR Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 414972010 | LH MIRROR Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 222841665 | Machined Screw M4 x 16 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 4 | 517124300 | Washer Formula 500 Deluxe. Formula 583 Deluxe. | 4 |
| 4 | 228541045 | Elastic Stop Nut M4 Formula 500 Deluxe. Formula 583 Deluxe. | 4 |
| 4 | 732600002 | Hex. Screw M6 x 16 | 4 |
| 1 | 222064065 | Hex. Screw M6 x 40 | 1 |
| 414883500 | LH Lower Foam | ||
| 415014700 | RH Lower Foam Formula 500. Formula 500 Deluxe. | ||
| 415048700 | RH Lower Foam Formula Z 583. Formula 583 Deluxe. | ||
| 414985100 | Center Foam | ||
| 1 | 224061201 | Flat Washer | 1 |
| 2 | 390906800 | Pop Rivet 3/16" Formula 500. Formula 500 Deluxe. | 2 |
| 517295000 | LH Support | ||
| 517295100 | RH Support | ||
| 3 | 391301600 | Washer | 3 |
| 4 | 365901100 | HEX. SCREW 12 X 3/4 | 4 |
| 414510200 | REFLECTOR, AMBER | ||
| 517294500 | Front Support |
