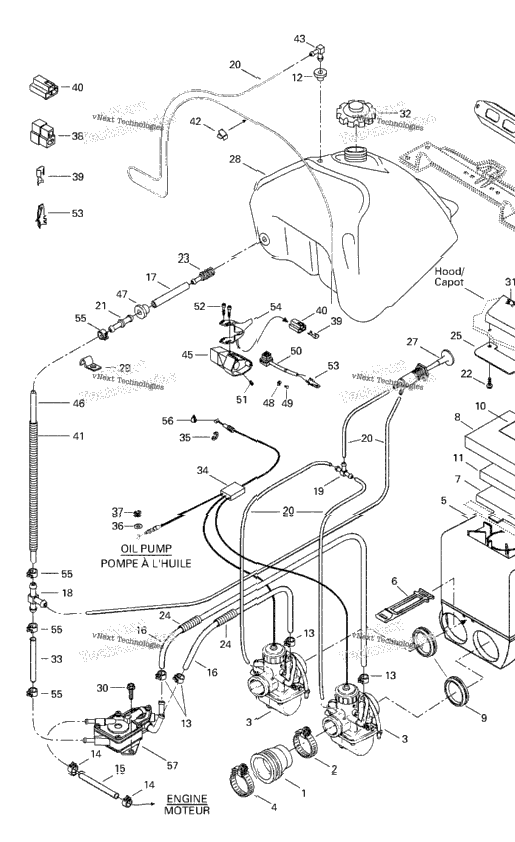

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 570048100 | Adaptor Caburetor (38 mm) | ||
| 415038400 | Clamp (50 mm) | ||
| 403134200 | Carburetor VM 38-382 (PTO) Grand Touring 500. | ||
| 403135900 | Carburetor VM 38-386 (PTO) Grand Touring 583. | ||
| 403134300 | Carburetor VM 38-383 (MAG) Grand Touring 500. | ||
| 403136000 | Carburetor VM 38-387 (MAG) Grand Touring 583. | ||
| 414532800 | Collar | ||
| 580667103 | Air Silencer Ass'y Includes 5 - 11. | ||
| 570048800 | Latch | ||
| 517283900 | Grill Intake | ||
| 415105900 | Exterior Foam | ||
| 570048900 | Intake Adaptor VM 38 | ||
| 414161500 | Warning Decal | ||
| 1 | 415014800 | Air Filter | 1 |
| 1 | 570135100 | Grommet | 1 |
| 4 | 414420700 | Spring Clamp | 4 |
| 2 | 414415200 | Spring Clamp | 2 |
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 415079200 | Hose | ||
| XXXX | Not Available As Spare Part - Fuel Line 4.76 mm Grand Touring 500. | ||
| 1 | 415005700 | Hose Grand Touring 583. | 1 |
| 1 | 414222500 | T-fitting Grand Touring 500. | 1 |
| 1 | 415119300 | T-Fitting Grand Touring 583. | 1 |
| 1 | 414222400 | T-Fitting | 1 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414518500 | Male Connector Grand Touring 500. | 1 |
| 1 | 414872700 | Male Connector Grand Touring 583. | 1 |
| 3 | 365901100 | HEX. SCREW 12 X 3/4 | 3 |
| 1 | 414865700 | Fuel Filter Grand Touring 500. | 1 |
| 1 | 414872100 | Fuel Filter Strainer Grand Touring 583. | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 517298800 | Deflector | ||
| 517249200 | Fuel Tank Bracket | ||
| 1 | 415060500 | Primer | 1 |
| 572101700 | Fuel Tank | ||
| 1 | 415018200 | CLIP | 1 |
| 732601120 | Hex. Screw M6 x 12 | ||
| 1 | 414972600 | Air Filter | 1 |
| 1 | 572039600 | Cap-Fuel Tank | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Grand Touring 500. | 1 |
| 415111400 | Formed Tube Grand Touring 583. | ||
| 414968801 | Throttle Cable and Housing (38 mm) | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 414753300 | Washer | 1 |
| 1 | 414753500 | Circlip | 1 |
| 409204500 | MALE HOUSING | ||
| 561503200 | Female Terminal PACKARD | ||
| 409008500 | Female Terminal Housing (3 circuits) | ||
| 1 | 219704407 | Tubing 10 MM 1000MM Long Grand Touring 500. | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long Grand Touring 583. | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 517182100 | SPRING | 2 |
| 572028600 | Throttle Handle Housing | ||
| 219704411 | FUEL LINE 10000MM LONG Grand Touring 583. | ||
| 1 | 570045500 | Grommet Grand Touring 500. | 1 |
| 1 | 570273900 | Grommet Grand Touring 583. | 1 |
| 391300700 | WASHER-FLAT | ||
| 1 | 414473200 | Screw | 1 |
| 1 | 414612700 | Kill Switch | 1 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 4 | 732601143 | Flange Screw | 4 |
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 1 | 572056900 | Heat Throttle Handle Ass'y (38 mm) | 1 |
| 4 | 414554800 | Spring Clamp Grand Touring 500. | 4 |
| 4 | 414655700 | Spring Clamp Grand Touring 583. | 4 |
| 413701700 | Dielectric Grease, 3 Oz | ||
| 403801100 | FUEL PUMP ASS'Y Grand Touring 500. | ||
| 403801200 | Fuel Pump Ass'y Grand Touring 583. | ||
| 572077900 | INTAKE COVER |
