Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

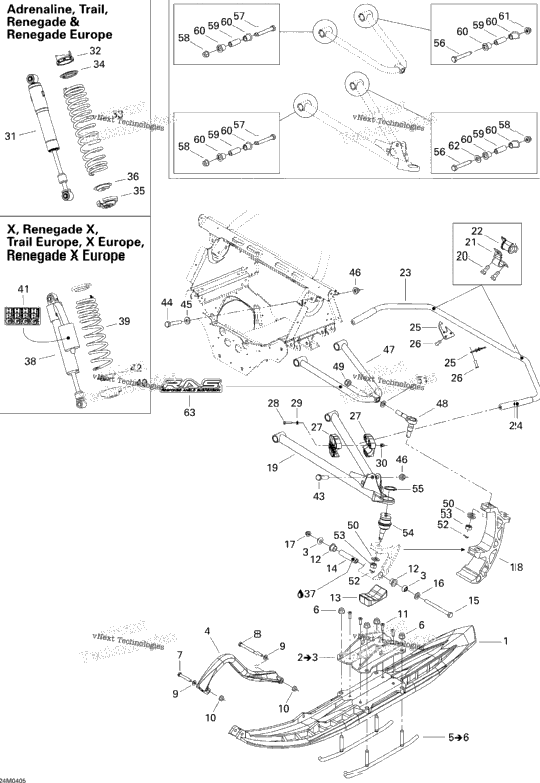

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 505070727 | Deep Black, Precision Ski Black (B-160) | ||
| 505070831 | Precision Ski, Yellow Yellow (B-190) | ||
| 505070764 | Bridge Ass'y Includes items 2 to 3 | ||
| 505070001 | BUSHING | ||
| 860506400 | Handle Kit, Yellow Yellow (B-190) | ||
| 2 | 505070963 | Black, Handle Black (B-160) | 2 |
| 4 | 860504900 | Carbide Runner Kit Includes items 5 to 6 | 4 |
| 8 | 233201414 | Hex. Flange Elastic Nut M10 | 8 |
| 2 | 207085044 | Hex. Screw M8 X 50 | 2 |
| 2 | 207089044 | Hex. Screw M8 X 90 | 2 |
| 4 | 234081410 | Flat Washer 8 mm | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 293150090 | RIVET_POP 1/4 | ||
| 4 | 505070954 | Cushion | 4 |
| 505070671 | Ski Stopper | ||
| 2 | 506133300 | Spacer | 2 |
| 2 | 250000001 | HEX. SCREW M10 X 110 | 2 |
| 2 | 732900049 | Washer | 2 |
| 2 | 732610084 | Flange Nut M10 | 2 |
| 2 | 505071232 | SKI LEG | 2 |
| 505071290 | RH Lower Arm | ||
| 505071293 | LH Lower Arm | ||
| 250000118 | Hex. Screw With Nylon | ||
| 2 | 506095800 | CLAMP | 2 |
| 505070664 | LH BUSHING | ||
| 1 | 505070912 | RH BUSHING | 1 |
| 1 | 505070948 | STABILISATOR | 1 |
| 2 | 505071039 | STABILISATOR BOOT | 2 |
| 505071253 | PLUG | ||
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 505071268 | RH SLIDER HALF | ||
| 2 | 505071269 | LH SLIDER HALF | 2 |
| 207152544 | HEX. SCREW M5 X 25 | ||
| 8 | 391301700 | Washer | 8 |
| 8 | 233251414 | Hex. Flange Elastic Nut M5 | 8 |
| 505071224 | Front Shock Adrenaline | ||
| 505071202 | Front Shock Trail | ||
| 505071224 | Front Shock Renegade | ||
| 505071435 | Front Shock Renegade Europe | ||
| 1 | 505070150 | Adjustment Cam Adrenaline | 1 |
| 1 | 503183700 | Cam 45° Trail | 1 |
| 1 | 505070150 | Adjustment Cam Renegade | 1 |
| 1 | 505070150 | Adjustment Cam Renegade Europe | 1 |
| 505071257 | Spring | ||
| 1 | 517184300 | Spring Guide Adrenaline | 1 |
| 1 | 503187500 | Spring Guide Trail | 1 |
| 1 | 517184300 | Spring Guide Renegade | 1 |
| 1 | 517184300 | Spring Guide Renegade Europe | 1 |
| 1 | 503140600 | Spring Stopper | 1 |
| 1 | 503141600 | Cap Adrenaline | 1 |
| 1 | 503141600 | Cap Renegade | 1 |
| 1 | 503141600 | Cap Renegade Europe | 1 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 1 | 505071301 | RH FRONT SHOCK X & Renegade X | 1 |
| 505071309 | RH Front Shock Trail Europe, X Europe & Renegade X Europe | ||
| 505071300 | LH Front Shock X & Renegade X | ||
| 505071308 | LH Front Shock Trail Europe, X Europe & Renegade X Europe | ||
| 505071388 | SPRING | ||
| 516000183 | Shock Decal | ||
| 1 | 503141600 | Cap | 1 |
| 2 | 207005544 | Hex. Screw M10 X 55 | 2 |
| 2 | 207006044 | HEX. SCREW M10 X 60 | 2 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 | 4 |
| 505071276 | Upper Arm | ||
| 2 | 505071483 | Ball Upper Joint | 2 |
| 2 | 250000047 | Hex. Flange Elastic Nut M12 | 2 |
| 4 | 234021410 | Flat Washer 12 mm | 4 |
| 2 | 503189276 | Washer | 2 |
| 4 | 211400017 | Cotter Pin | 4 |
| 4 | 232221414 | Hex. Castellated Nut M12 | 4 |
| 505071422 | BALL JOINT | ||
| 2 | 293370035 | Circlip | 2 |
| 250000114 | Cone Screw M10 X 75 | ||
| 4 | 207007044 | Hex. Screw M10 X 70 | 4 |
| 7 | 233201414 | Hex. Flange Elastic Nut M10 | 7 |
| 8 | 505070567 | Bushing | 8 |
| 16 | 505070566 | Arm Bushing | 16 |
| 1 | 233601416 | Elastic Locking Nut M10 X 1.5 | 1 |
| 2 | 503189564 | Washer | 2 |
| 516001704 | R.A.S. Suspension Decal |
