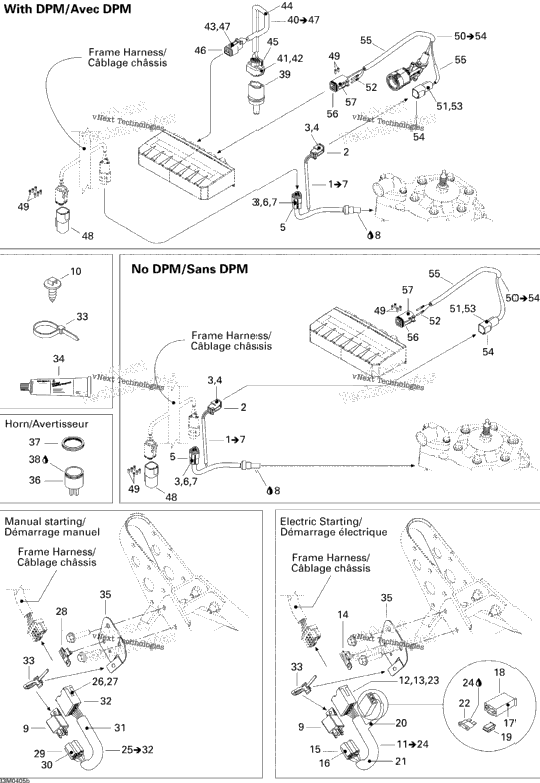

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515176041 | TEMPERATURE SENSOR Includes items 1 to 7 | ||
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 4 | 278000632 | Female Terminal | 4 |
| 1 | 515175675 | Female Lock, 2 Circuits | 1 |
| 1 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | 1 |
| 1 | 515175676 | Female Lock, 3 Circuits | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 410113200 | Relay | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 515175721 | Configuration Harness Ass'y Includes items 11 to 24 / Electric starting | 1 |
| 4 | 515175232 | Male Terminal | 4 |
| 3 | 515175273 | MALE TERMINAL | 3 |
| 1 | 515175283 | Housing Support | 1 |
| 1 | 409209900 | Female Housing, 5 Circuits | 1 |
| 4 | 561503100 | FEMALE TERMINAL | 4 |
| 2 | 409011600 | Female Terminal | 2 |
| 1 | 409004000 | Fuse Holder | 1 |
| 1 | 409014200 | CLIP | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 278000344 | Fuse, 5 Amperes | 1 |
| 1 | 515175720 | MALE TERMINAL HOUSING, 11 CIRCUITS | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 515175722 | Configuration Harness Includes items 25 to 32 / Manual starting | ||
| 1 | 515175232 | Male Terminal | 1 |
| 1 | 515175273 | MALE TERMINAL | 1 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 515176020 | HARNESS SUPPORT | 1 |
| 1 | 515176035 | HORN Reverse | 1 |
| 1 | 414805101 | PLASTIC NUT Reverse | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml Reverse | 1 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR With DPM | 1 |
| 515175703 | Temperature Harness Includes items 40 to 47 / With DPM | ||
| 1 | 278000998 | Female Terminal | 1 |
| 1 | 278000999 | Wire Seal | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS | 1 |
| 515175706 | Female Lock, 2 Circuits | ||
| 1 | 515175668 | Male Terminal Housing, 6 Circuits | 1 |
| 8 | 293000052 | Sealing Cap With DPM | 8 |
| 10 | 293000052 | Sealing Cap Without DPM | 10 |
| 515175822 | Sensor Harness Includes items 50 to 54 | ||
| 1 | 278000631 | Male Terminal | 1 |
| 1 | 409207500 | Male Lock, 2 Circuits | 1 |
| 1 | 515175665 | Male Terminal Housing, 2 Circuits | 1 |
| 409901300 | LOW TEMPERATURE VINYL TUBING | ||
| 1 | 515175673 | Male Housing, 6 Circuits | 1 |
| 1 | 515175678 | Male Wedge, 6 Circuits | 1 |
