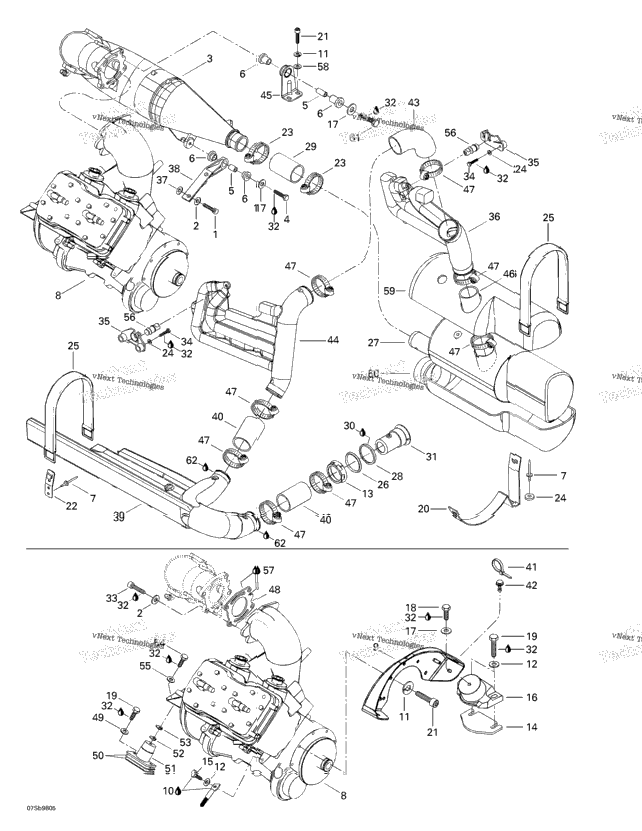

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 205504060 | SCREW-SOCKET DIN.912A2 S.GRIP | ||
| 6 | 213200003 | Washer 10 mm | 6 |
| 274000395 | Head Pipe Ass'y | ||
| 1 | 215684060 | Hexagonal Screw M8 x 40 | 1 |
| 2 | 274000254 | Bushing | 2 |
| 4 | 293830036 | Rubber Bushing | 4 |
| 6 | 293150037 | Avdel Rivet 3/16" | 6 |
| 270000293 | Rotax Engine 787 SDI (Silver) | ||
| 270000359 | Engine Support | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 7 | 213000001 | Lock-Washer 8 mm | 7 |
| 5 | 213200002 | Flat Washer 8 mm | 5 |
| 1 | 274000224 | Nut 72 mm | 1 |
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 1 | 211000174 | Hex. Screw M8 x 25 | 1 |
| 270000344 | Rubber Mount | ||
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 215681660 | Hex. Screw M8 x 16 | ||
| 6 | 215084060 | Hex. Screw M8 x 40 | 6 |
| 274000400 | Muffler Support | ||
| 7 | 211000178 | Allen Screw M8 x 25 | 7 |
| 1 | 293850030 | Strap Clip | 1 |
| 2 | 293650023 | Tridon Clamp | 2 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 2 | 293850021 | Rubber Strap | 2 |
| 274000225 | STABILIZING WASHER | ||
| 274000613 | Muffler | ||
| 1 | 293250041 | GASKET | 1 |
| 274000170 | Exhaust Hose | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 274000222 | EXHAUST OUTLET | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 215903560 | Socket Head Screw M10 x 35 | ||
| 215051660 | SCREW-HEX.CAP DIN.933A2 | ||
| 4 | 210000009 | Hex. Screw M5 x 20 | 4 |
| 291001204 | Pad Support | ||
| 274000604 | RH Resonator | ||
| 2 | 217002600 | Flat Washer | 2 |
| 274000457 | Pipe Support | ||
| 295500683 | Resonator | ||
| 274000616 | Exhaust Hose | ||
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 274000563 | EXHAUST HOSE | 1 |
| 274000655 | LH Resonator | ||
| 274000598 | Pipe Support | ||
| 274000530 | EXHAUST HOSE | ||
| 8 | 293650064 | Tridon Clamp | 8 |
| 290931500 | Gasket | ||
| 2 | 213200002 | Flat Washer 8 mm | 2 |
| 270000346 | Rubber Mount | ||
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 210000001 | SCREW-HEX.CAP DIN.933A2 | ||
| 1 | 213200011 | Flat Washer 8 mm | 1 |
| 2 | 293830062 | RUBBER PAD | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 274000609 | Cover Muffler - Upper | ||
| 274000608 | Cover Muffler - Lower | ||
| 1 | 207284060 | Hex. Screw M8 X 40, Scotch Grip | 1 |
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml | 1 |
