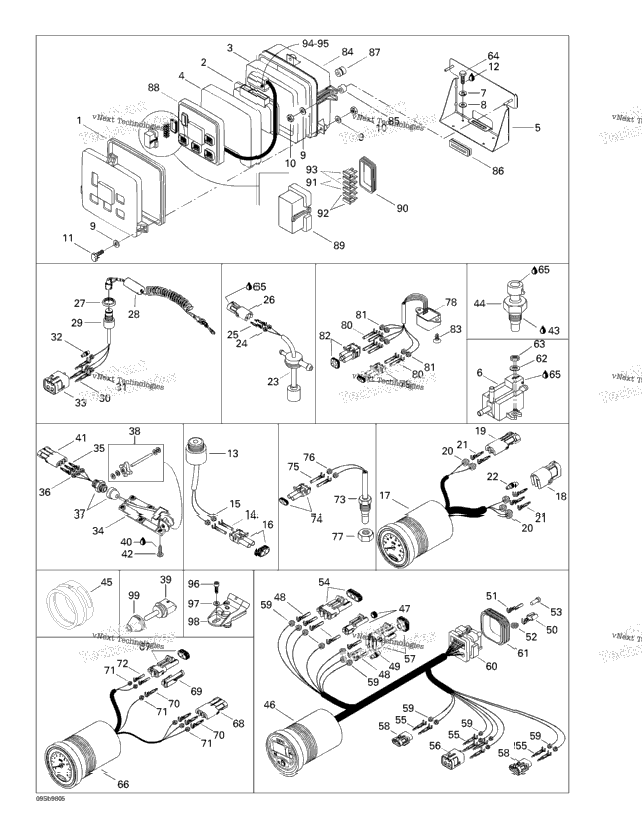

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 293250063 | Gasket | ||
| 278000940 | Electronic Module | ||
| 278000941 | Lower Foam | ||
| 278001100 | Top Foam | ||
| 278001139 | Box Support Ass'y | ||
| 1 | 270600005 | Solenoid Valve | 1 |
| 4 | 217351500 | Lock Washer 5 mm | 4 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 8 | 213200007 | Washer 6 mm | 8 |
| 5 | 212000001 | Elastic Stop Nut M6 | 5 |
| 3 | 210000006 | Hex. Screw M6 x 30 | 3 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278000978 | Buzzer Ass'y Includes 13 - 16. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 278001245 | Speedometer Includes 17 - 22. | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 204470106 | OIL LEVEL SENSOR ASS'Y Includes 23 - 26. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 295500444 | Safety Landyard Ass'y | 1 |
| 278000977 | Safety Switch Includes 29 - 33. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 278000849 | Speed Sensor Includes 34 - 38. | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 216351060 | SCREW-CTSK.OV.HD.PH.DIN.966A-A2 | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 293720047 | Gauge Support | ||
| 278001244 | LCD Info Gauge Includes 46 - 61. | ||
| 278000219 | MALE HOUSING, 1 CIRCUIT | ||
| 7 | 278000223 | Female Terminal | 7 |
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000995 | FEMALE TERMINAL | ||
| 278000996 | WIRE SEAL | ||
| 10 | 293000070 | SEALING CAP | 10 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 8 | 278000222 | Male Terminal | 8 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 15 | 278001065 | Wire Seal | 15 |
| 278000993 | Male Connector, 26 Circuits Includes 60 - 61. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 2 | 213200004 | Flat Washer 5 mm | 2 |
| 2 | 212000004 | Elastic Stop Nut M5 | 2 |
| 4 | 211000074 | Screw Plastite | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001246 | Tachometer Includes 66 - 72. | ||
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 4 | 278000222 | Male Terminal | 4 |
| 6 | 278001065 | Wire Seal | 6 |
| 278000851 | Temperature Sensor Includes 73 - 76. | ||
| 211100031 | Plastic Nut M10 | ||
| 278001243 | Compass Includes 78 - 82. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730016 | Dart, Black | 2 |
| 278000938 | Electronic Box Base | ||
| 2 | 272000074 | SPACER | 2 |
| 278001259 | Insulator | ||
| 2 | 278001260 | UPPER INSULATOR | 2 |
| 278000939 | Electronic Module Includes 88 - 95. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 3 | 278000998 | Female Terminal | 3 |
| 3 | 278000999 | Wire Seal | 3 |
| 1 | 211000177 | Allen Screw M6 x 12 | 1 |
| 1 | 213200001 | Flat Washer 6 mm | 1 |
| 270600001 | Pressure Sensor (5591/5592) | ||
| 1 | 278001054 | INSULATOR | 1 |
