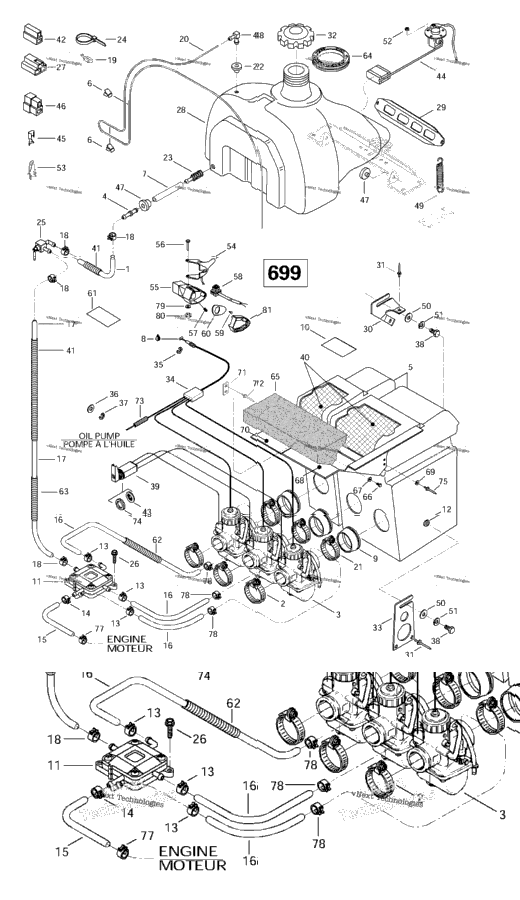

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 414933900 | Hose Mach 1. | ||
| 414830100 | Clamp Mach 1. | ||
| 403129200 | VM 38-356 Carburetor Mach 1. | ||
| 1 | 414872700 | Male Connector Mach 1. | 1 |
| 580647600 | Air Silencer Ass'y 2 Holes Mach 1. (Incl. 9, 10, 12, 40, 68, 69, 75) | ||
| 580647700 | Air Silencer Ass'y 1 Hole Mach 1. (Incl. 9, 10, 12, 40, 69, 70, 71, 72, 75) | ||
| 2 | 414227300 | Clip Mach 1. | 2 |
| 1 | 415005700 | Hose Mach 1. | 1 |
| 413701700 | Dielectric Grease, 3 Oz Mach 1. | ||
| 570047000 | Intake Adaptor Mach 1. | ||
| 414161500 | Warning Decal Mach 1. | ||
| 403901100 | Fuel Pump (70 Liters) Mach 1. | ||
| 2 | 732610057 | JACK NUT M6 Mach 1. | 2 |
| 3 | 414554800 | Spring Clamp Mach 1. | 3 |
| 1 | 414415200 | Spring Clamp Mach 1. | 1 |
| 415063100 | Impulse Hose 6.35 mm Mach 1. | ||
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Mach 1. | 1 |
| 219704411 | FUEL LINE 10000MM LONG Mach 1. | ||
| 4 | 414655700 | Spring Clamp Mach 1. | 4 |
| 561503200 | Female Terminal PACKARD Mach 1. | ||
| 414296900 | Fuel Line 3.18 mm Mach 1. | ||
| 1 | 570135100 | Grommet Mach 1. | 1 |
| 1 | 414872100 | Fuel Filter Strainer Mach 1. | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Mach 1. | 1 |
| 414872200 | Shut Off Valve Mach 1. | ||
| 2 | 732600005 | Hex. Screw Self Tapping M6 x 20 Mach 1. | 2 |
| 409008500 | Female Terminal Housing (3 circuits) Mach 1. | ||
| 572057100 | Fuel Tank Mach 1. | ||
| 517249200 | Fuel Tank Bracket Mach 1. | ||
| 518313900 | Internal Bracket Mach 1. | ||
| 8 | 390402200 | Pop Rivet 3/16" Mach 1. | 8 |
| 1 | 572073900 | Cap Mach 1. | 1 |
| 517252000 | External Bracket Mach 1. | ||
| 414966501 | Throttle Cable and Housing VM-36 Mach 1. | ||
| 1 | 414274500 | Circlip Mach 1. | 1 |
| 1 | 414753300 | Washer Mach 1. | 1 |
| 1 | 414753500 | Circlip Mach 1. | 1 |
| 2 | 222062065 | Hex. Screw M6 x 20 Mach 1. | 2 |
| 415006200 | Choke Cable Mach 1. | ||
| 572029103 | Air Filter Foam (1 Holes Silencer) Mach 1. | ||
| 572029007 | Air Filter Foam (2 Holes Silencer) Mach 1. | ||
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long Mach 1. | 1 |
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS Mach 1. | 1 |
| 394103300 | Lock Washer, Interior Teeth Mach 1. | ||
| 580651100 | Fuel Sender Ass'y Mach 1. | ||
| 409204500 | MALE HOUSING Mach 1. | ||
| 3 | 570273900 | Grommet Mach 1. | 3 |
| 1 | 414814100 | Male Connector Mach 1. | 1 |
| 2 | 414893700 | Spring Mach 1. | 2 |
| 2 | 224061121 | Flat Washer Mach 1. | 2 |
| 2 | 224761110 | Lock Washer 6 mm Mach 1. | 2 |
| 5 | 228551045 | Elastic Stop Nut M5 Mach 1. | 5 |
| 561503400 | MALE TERMINAL (18/16 GA.) Mach 1. | ||
| 572090300 | Heat Throttle Handle Ass'y (38 mm) Mach 1. | ||
| 1 | 572086700 | Throttle Handle Housing Mach 1. | 1 |
| 1 | 414438700 | Lever Pin Mach 1. | 1 |
| 1 | 414440800 | Socket Set Screw M8 X 10 Mach 1. | 1 |
| 1 | 414612700 | Kill Switch Mach 1. | 1 |
| 1 | 414473200 | Screw Mach 1. | 1 |
| 1 | 572086800 | Plate Mach 1. | 1 |
| 414931500 | Security Label Mach 1. | ||
| 1 | 219704400 | Was 409901800 Tubing (13 mm) Mach 1. | 1 |
| 414942900 | Tubing Mach 1. | ||
| 570276900 | Rubber Ring Mach 1. | ||
| 415027600 | Air Filter Mach 1. | ||
| 222851465 | Screw M5 x 14 Mach 1. | ||
| 224151101 | WASHER-LOCK SERRATED DIN.6798A Mach 1. | ||
| 517284900 | Deflector (2 Holes Silencer) Mach 1. | ||
| 8 | 517225900 | Flat Washer Mach 1. | 8 |
| 517285000 | Deflector (1 Holes Silencer) Mach 1. | ||
| 517278500 | Plate Mach 1. | ||
| 1 | 390402400 | Pop Rivet 3/16" Mach 1. | 1 |
| 1 | 414977200 | Plastic Nut Mach 1. | 1 |
| 390406600 | Rivet Mach 1. | ||
| 2 | 390909200 | Avex Rivet Mach 1. | 2 |
| 408801100 | SPRING CLIP Mach 1. | ||
| 3 | 414420700 | Spring Clamp Mach 1. | 3 |
| 1 | 414438900 | Washer Mach 1. | 1 |
| 1 | 414439000 | Circlip Mach 1. | 1 |
| 1 | 572044600 | THROTTLE COVER Mach 1. | 1 |
