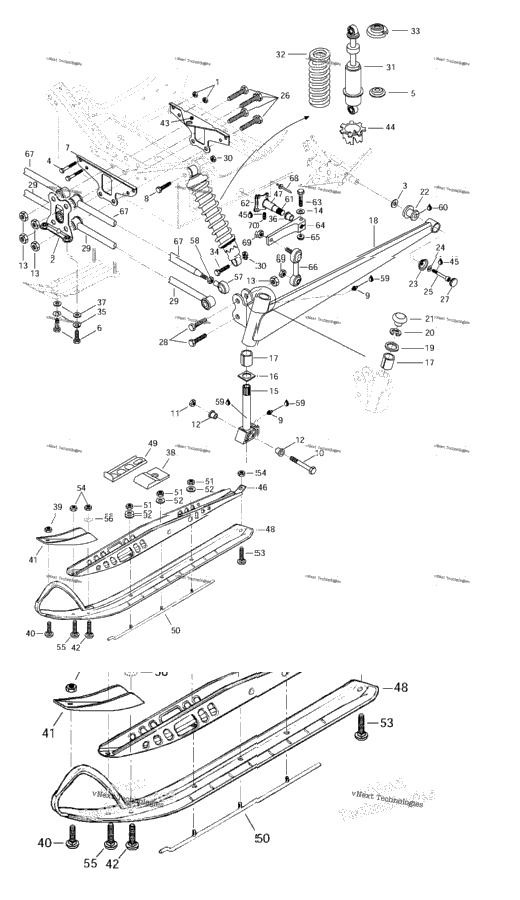

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 228761045 | Elastic Flange Nut M6 | 4 |
| 506122900 | Link Plate | ||
| 2 | 503146700 | WASHER | 2 |
| 4 | 222065565 | Screw Hex. M6 x 55 | 4 |
| 2 | 517184300 | Spring Guide Mach Z. | 2 |
| 2 | 503165100 | GUIDE_SPRING Mach Z-LT. | 2 |
| 2 | 222082065 | Hex. Screw M8 x 20 | 2 |
| 517254800 | Front Link Plate | ||
| 2 | 222006065 | Hex. Screw M10 x 60 | 2 |
| 4 | 408200700 | Grease Fitting | 4 |
| 732601176 | Hex. Screw M12 | ||
| 2 | 228521045 | Elastic Stop Nut M12 | 2 |
| 414530600 | CUSHION | ||
| 8 | 228521045 | Elastic Stop Nut M12 | 8 |
| 2 | 224081171 | Flat Washer 8 mm | 2 |
| 506139200 | Ski Leg | ||
| 506081200 | Wear Plate | ||
| 572069900 | Cushion | ||
| 506136710 | LH Swing Arm | ||
| 506136610 | RH Swing Arm | ||
| 506080900 | Thrust Washer | ||
| 2 | 371910400 | CIRCLIP | 2 |
| 2 | 572091300 | Cap | 2 |
| 570062200 | DAMPER | ||
| 2 | 506115800 | Cup | 2 |
| 2 | 224781140 | Lock Washer 8 mm | 2 |
| 2 | 222982565 | Socket Head Screw M8 x 25 | 2 |
| 222029065 | Hex. Screw M12 x 90 | ||
| 2 | 572045900 | CAP | 2 |
| 222025565 | Hex. Screw M12 x 55 | ||
| 580650800 | Arm Ass'y | ||
| 4 | 228501045 | Elastic Stop Nut M10 | 4 |
| 415033000 | Front Shock Mach 1. | ||
| 414956700 | Front Shock (HPG) (Canada, U.S.A. Only) Mach Z. | ||
| 415040200 | Front Shock Mach Z-LT. | ||
| 414956300 | Shock Spring (Yellow) Mach 1. Mach Z. | ||
| 415035500 | Shock Spring (Yellow) Mach Z-LT. | ||
| 2 | 503140600 | Spring Stopper | 2 |
| 2 | 222005565 | Hex. Screw M10 x 55 | 2 |
| 2 | 415039500 | CUSHION | 2 |
| 570046800 | Ski Stopper | ||
| 2 | 228761045 | Elastic Flange Nut M6 | 2 |
| 2 | 222262565 | Carriage Bolt M6 x 25 | 2 |
| 505068000 | Ski Reinforcement | ||
| 2 | 222284065 | Carriage Bolt M8 x 40 | 2 |
| 517254900 | Rear Link Plate | ||
| 2 | 414762600 | Adjuster Ring Mach Z. | 2 |
| 503169000 | Cam Mach Z-LT. | ||
| 1 | 413703000 | Loctite 242, 10 cc | 1 |
| 505068100 | Ski Support | ||
| 506136200 | Main Tube | ||
| 572090400 | Plastic Ski (Black) Mach 1. Mach Z. | ||
| 572085700 | Ski Plastic Mach Z-LT. | ||
| 505067509 | Stopper | ||
| 2 | 505067220 | CARBIDE RUNNER (8) | 2 |
| 6 | 228501045 | Elastic Stop Nut M10 | 6 |
| 224002251 | FLAT WASHER | ||
| 2 | 222282565 | Carriage Bolt M8 x 25 | 2 |
| 6 | 228781045 | Elastic Flange Stop Nut M8 | 6 |
| 2 | 222283065 | Carriage Bolt M8 x 30 | 2 |
| XXXX | Not Available As Spare Part - Washer | ||
| 415042500 | RH Ball Joint | ||
| 2 | 228371042 | Hex. Jam Nut M14 | 2 |
| 413706100 | LITHIUM GREASE, 400 GR | ||
| 1 | 293550014 | Grease, Super Lube #823-28 | 1 |
| 506134300 | Stabilizator | ||
| 506139000 | Housing | ||
| 2 | 222084565 | Screw-Hex.Cap Din.931 | 2 |
| 506134402 | Stabilizer Lever | ||
| 2 | 228781045 | Elastic Flange Stop Nut M8 | 2 |
| 415042300 | Double Ball Joint | ||
| 580649900 | Arm Ass'y | ||
| 390404900 | Rivet pop 1/4" | ||
| 4 | 414440800 | Socket Set Screw M8 X 10 | 4 |
