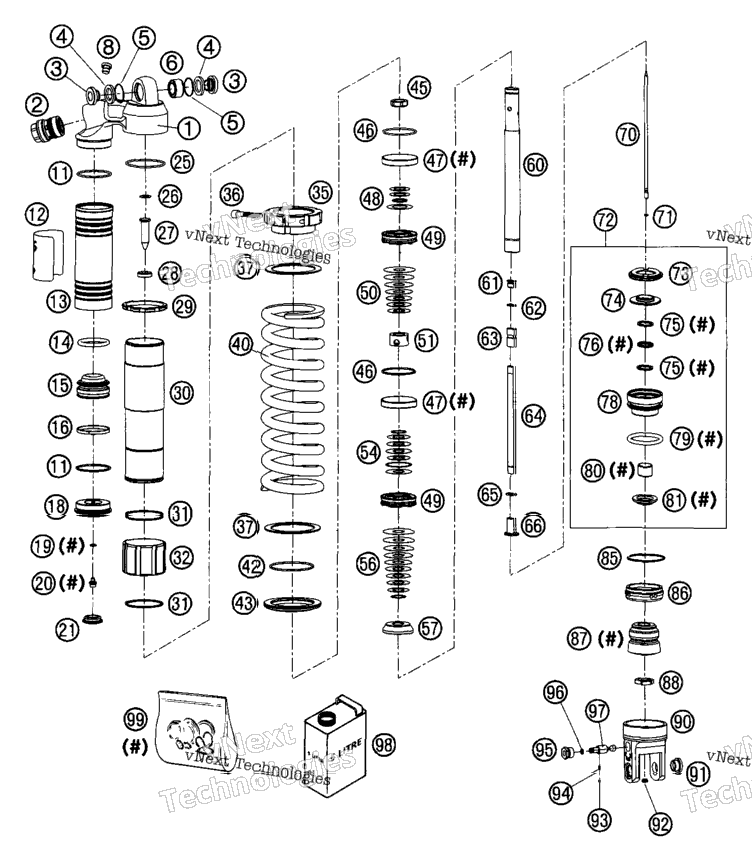

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 50180268 | SHOCK ABSORBER CASE TOP WP-PDS | ||
| 50180301S1 | MCC-COMPR.DAMPING CONTROL CPL. (MXC, EXC RACING) | ||
| 50180213S1 | DCC-COMPR.DAMPING CONTROL CPL. | ||
| 2 | 46180007 | Distance bush 12x15/18/24,5x10,5 | 2 |
| 2 | 46180003 | Seal ring 19,5x26x3 | 2 |
| 2 | 50180168 | Round-wire snap ring 25x1 | 2 |
| 1 | 50180005 | Ball joint bearing 15x25x13 | 1 |
| 1 | 50180095 | HS cylinder-head screw R1/8 l8 | 1 |
| 2 | 46810340 | O-ring 45x2 NBR70 siliconized | 2 |
| 1 | 52000041 | WP CAUTION (PDS KTM) 58X83 | 1 |
| 50180096 | RESERVOIR SCREW L140 GREY | ||
| 46811043 | O-ring 35x5 Viton70 | ||
| 50180108 | Piston 46mm reservoir | ||
| 46810324 | Pistonring 42,5x45,5x3,9 | ||
| 46811209 | RESERVOIR CAP D=46 | ||
| 1 | 46810893 | O-ring 5,28x1,78 NBR70 black | 1 |
| 1 | 36120151 | HS lock screw M5x6 | 1 |
| 1 | 46811208 | Rubber cap do not open 22x5,5 NBR | 1 |
| 1 | 50180097 | O-ring 52x2 NBR70 | 1 |
| 1 | 50180177 | Springwasher 8,2x16x0,6 | 1 |
| 50180296 | NEEDLE D=10; L=33 | ||
| 50180271 | SCREW CAP M20x1, D=11 | ||
| 50180270 | LOCK WASHER | ||
| 50180295 | TUBE PDS L=196 | ||
| 50180133 | CIRCLIP 50X1,5 | ||
| 50180081 | Spring guide 54,15x60x40 | ||
| 1 | 50180186 | SPRINGRETAINER PDS M6 '00 | 1 |
| 1 | 0912060353 | AH SCREW DIN0912-M 6X35 | 1 |
| 2 | 50180114 | Intermediate washer spring 61,7x78x1,5 | 2 |
| 91210013 | SPRING PDS0-250 65-83N/MM | ||
| 91210009 | SPRING PDS1-250 70-90N/MM | ||
| 91210010 | SHOCK SPRING L= 250 75-96 N/MM WHITE | ||
| 91210011 | SPRING PDS3-250 80-103N/MM | ||
| 91210012 | SPRING PDS4-250 85-111N/MM | ||
| 91210014 | SPRING PDS5-260 66-86N/MM | ||
| 91210015 | SPRING PDS6-260 71,5-90,5N/MM | ||
| 91210016 | SPRING PDS7-260 76-95N/MM | ||
| 91210017 | SPRING PDS8-260 81-99,5N/MM | ||
| 1 | 50180273 | Round-wire snap ring 58,5x2 | 1 |
| 50180272 | SPRING RETAINER D=80 | ||
| 50180141 | Piston rod nut 16x1 | ||
| 2 | 50180099 | O-ring 44x,17x1,78 Viton70 | 2 |
| 2 | 50180135 | Piston ring 47,95x49,95x8 | 2 |
| 2 | 50180072 | SHIM 16X28X0,30 | 2 |
| 1 | 50180209 | Shim 21x36x0,25 | 1 |
| 1 | 50180210 | Washer 16x21x1 | 1 |
| 2 | 50180197 | Piston 16,05x49,6x13,5 4,5/7 | 2 |
| 1 | 50180074 | SHIM 16X32X0,30 | 1 |
| 1 | 50180075 | SHIM 16X34X0,30 | 1 |
| 1 | 50180076 | SHIM 16X36X0,30 | 1 |
| 1 | 50180077 | SHIM 16X38X0,30 | 1 |
| 1 | 50180078 | SHIM 16X40X0,30 | 1 |
| 1 | 50180070 | SHIM 16X42X0,25 | 1 |
| 1 | 50180071 | SHIM 16X44X0,25 | 1 |
| 50180269 | SANDWICH BUSH D25XD16X14,5/D | ||
| 1 | 50180035 | Shim 16x21x0,30 | 1 |
| 1 | 50180047 | Shim 16X32X0,15 | 1 |
| 1 | 50180056 | Shim 16x32x0,2 | 1 |
| 1 | 50180057 | Shim 16x34x0,2 y5 | 1 |
| 1 | 50180058 | Shim 16x36x0,20 | 1 |
| 1 | 46811637 | Shim 32,25x36x0,30 | 1 |
| 1 | 50180065 | SHIM 16X32X0,25 | 1 |
| 1 | 50180055 | SHIM 16X30X0,20 | 1 |
| 1 | 50180064 | Shim 16x30x0,25 | 1 |
| 1 | 50180059 | SHIM 16X38X0,20 | 1 |
| 1 | 50180060 | Shim 16x40x0,2 | 1 |
| 1 | 50180061 | Shim 16x52x0,2 | 1 |
| 2 | 50180071 | SHIM 16X44X0,25 | 2 |
| 50180196 | REBOUND DISC D=34, H=8 | ||
| 50180294 | SPINDEL D=18, L=153, M16x1 | ||
| 50180200 | BUSH M8X1 | ||
| 1 | 50180157 | O-ring 7x1,5 Viton70 green | 1 |
| 50180201 | NEEDLE SEAT M8X1 | ||
| 50180264 | TUBE M18X1 L=151,5 | ||
| 1 | 48600049 | O-ring 8x2 NBR70 | 1 |
| 1 | 50180279 | Bush 5/8,2/7x9,5/16,8x23 | 1 |
| 50180261 | NEEDLE L=175 | ||
| 1 | 46811265 | O-ring 2,2x1,6 Viton75 green | 1 |
| 50180118S2 | ADAPTOR CPL. D=50, H=28,5 | ||
| 1 | 50180107 | Rubber pad rebound 27x48x8 NBR80 | 1 |
| 50180304 | STEEL DISC 18,5X43,7X6 | ||
| 2 | 50180102 | Washer 18x22,5x1,5 plastic | 2 |
| 1 | 50180101 | X-ring 18x2,62 Viton70 | 1 |
| 50180118 | ADAPTOR D=50, H=28,5 | ||
| 1 | 50180103 | O-ring 41x5 NBR70 | 1 |
| 50180104 | DU-BUSH 18X20X15 | ||
| 50180082 | Dirt scarper 18mm | ||
| 1 | 50180126 | Round-wire snap ring 53x1,75 | 1 |
| 50180165 | Cap 50,1x17,5 h6 | ||
| 1 | 50180276 | Rubber pad 17,2x45,2x40 black | 1 |
| 50180283 | HH locking nut M18x1 h5 WAF24 | ||
| 50180293 | FORK PART L=55,5, B=32,5 | ||
| 1 | 50180105 | Threaded bush M12 d20 | 1 |
| 50180297 | Rubber plug 8x3,5 NBR50 | ||
| 1 | 40540603 | Steel ball d3 | 1 |
| 1 | 40540602 | SPRING D=2,9, L=6,2 | 1 |
| 1 | 50180281 | HH screw M14x9 | 1 |
| 1 | 50180222 | O-ring 4x1,5 NBR70 | 1 |
| 50180280 | ADJUSTING SCREW 80 DEG., L=39 | ||
| 46810208S1 | SHOCK ABSORBER FLUID 5 LT. | ||
| R12005 | REP.KIT GASKET SEAL PDS 2002 |
