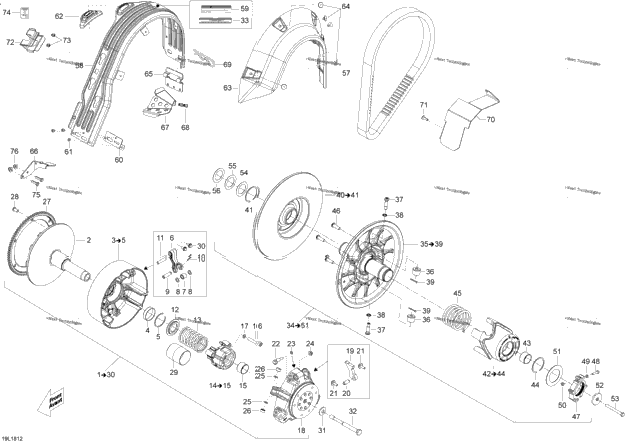

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 3 to 5 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417222594 | Pin | 3 |
| 3 | 250400060 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414993000 | Tra Spring | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 13 to 15 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223669 | Governor Cup Ass'y | 1 |
| 3 | 417222444 | Ramp 600 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223501 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417223271 | Slider Shoe | 6 |
| 1 | 417223738 | Ring Gear | 1 |
| 6 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip | 6 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127466 | Fixed Flange Ass'y | 1 |
| 1 | 417127366 | Slider Flange Ass'y | 1 |
| 1 | 417127459 | Cam Ass'y | 1 |
| 1 | 417127243 | Spring, White | 1 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 417300252 | Spacer | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516006900 | Security Label, Belt Guard | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300363 | Belt Guard Bracket Package WT | 1 |
| 1 | 417300413 | Belt Guard Bracket Package SWT | 1 |
| 417300451 | BELT GUARD BRACKET | ||
| 1 | 518325626 | Brake Hose Cover Package WT | 1 |
| 1 | 518327035 | Brake Hose Cover Package SWT | 1 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300468 | Air Duct Includes 70 to 70,1 | 1 |
| 1 | 605636003 | Clinch Nut M6 Hexsert Not Shown | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 517281905 | Bracket | 1 |
| 2 | 390909100 | Avex Rivet | 2 |
| 1 | 516005511 | Belt Decal, English | 1 |
