Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

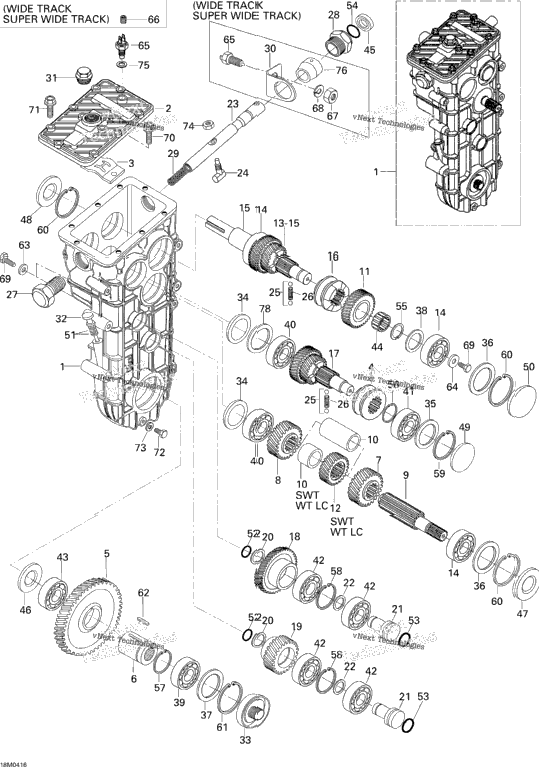

| 870156272 | Gear box (ST 550F) WT | ||
| M870156245 | TRANSMISSION ASS'Y SWT | ||
| 1 | M875156138 | Carter Chaine U*Case-Chain Mach. | 1 |
| M875156043 | COVER | ||
| M875156111 | H-SCHEME | ||
| M875156005 | WHEEL-CLUTCH | ||
| M875156057 | Sprocket 59 Th SWT | ||
| M875156114 | Sprocket 53 Th WT, WTLC | ||
| M875156218 | SHAFT | ||
| M875156136 | Sprocket 27 Th SWT, WTLC | ||
| 1 | M875156051 | Sprocket 29Th WT | 1 |
| 1 | M875156054 | Sprocket 34Th | 1 |
| 1 | M875156069 | Axe *Shaft | 1 |
| 1 | M875156088 | SLEEVE SWT, WTLC | 1 |
| 1 | M875156087 | SLEEVE WT | 1 |
| M875156135 | Sprocket 29 Th SWT, WTLC | ||
| M875156115 | Sprocket 28 Th WT | ||
| M875156060 | Sprocket 24 Th SWT | ||
| M875156151 | Sprocket 29Th WTLC | ||
| M875156155 | Variator Shaft SWT | ||
| 1 | M875156063 | Variator Shaft WT, WTLC | 1 |
| M610063050 | BALL BEARING | ||
| M875156153 | Sleeve SWT | ||
| M875156089 | Sleeve WT, WTLC | ||
| 1 | M875156068 | Reverse Shaft | 1 |
| M875156059 | Sprocket 33 Th SWT | ||
| M875156206 | Sprocket 28Th WTLC | ||
| 1 | M875156050 | Sprocket 28 Th WT | 1 |
| M875156058 | Sprocket 26 Th SWT | ||
| M875156156 | Sprocket 31 Th WTLC | ||
| M875156049 | SPROCKET 31 TH WT | ||
| 2 | M875156094 | Ring | 2 |
| 2 | M875147204 | Axe *Shaft | 2 |
| M875147205 | Washer | ||
| M875156072 | SHAFT | ||
| M875156073 | PIN | ||
| 4 | M616810064 | Bille *Ball | 4 |
| 2 | M875156105 | Ressort *Spring | 2 |
| 1 | M875156076 | Sleeve Nut | 1 |
| M875156077 | SLEEVE NUT | ||
| 1 | M875156078 | Ressort *Spring | 1 |
| 1 | M5346698 | BRACKET WT, SWT | 1 |
| M875156098 | PLUG | ||
| M875156097 | Filler Cap Ass'y | ||
| M875156104 | Bouchon *Plug | ||
| 2 | M875152953 | Bouchon *Plug | 2 |
| 3 | M617394252 | Shim SWT | 3 |
| 1 | M617394252 | Shim WTLC | 1 |
| 2 | M617394252 | Shim WT | 2 |
| 3 | M617395065 | Shim | 3 |
| 3 | M617395568 | Shim SWT, WTLC | 3 |
| 1 | M617395568 | Shim WT | 1 |
| 1 | M616092542 | WASHER-AXIAL | 1 |
| M610060084 | BALL BEARING | ||
| M610063044 | BALL BEARING SWT | ||
| M610063044 | BALL BEARING WT, WTLC | ||
| M610063040 | BEARING | ||
| 4 | M610063036 | Roulement Bille*Ball Bearing | 4 |
| M6008 | BALL BEARING | ||
| 1 | M611002529 | Needle Bearing | 1 |
| 1 | M614102031 | Oil Seal | 1 |
| 1 | M614102852 | Oil Seal | 1 |
| 1 | M614102562 | Oil Seal | 1 |
| 1 | M614103562 | Oil Seal | 1 |
| 1 | M614100052 | Bouchon *Plug | 1 |
| 1 | M614100062 | Bouchon *Plug | 1 |
| 3 | M614600725 | O'Ring | 3 |
| M614601224 | O'RING | ||
| 2 | M614602431 | O'Ring | 2 |
| 1 | M614601523 | O'Ring | 1 |
| 1 | M617450025 | Circlip *Circlip | 1 |
| M617450028 | CIRCLIP | ||
| 1 | M617300040 | CIRCLIP | 1 |
| 2 | M617330047 | Circlip *Circlip | 2 |
| 1 | M617330052 | Circlip *Circlip | 1 |
| M617330062 | LOCK RING | ||
| 1 | M617330068 | Circlip *Circlip | 1 |
| 1 | M603345080 | KEY | 1 |
| 2 | M501150902 | WASHER | 2 |
| M875156112 | WASHER | ||
| 1 | M654100225 | Transmetteur *Sender-Backup | 1 |
| M640025012S | Threated Plug WT, SWT | ||
| 1 | M33021 | NUT WT, SWT | 1 |
| 1 | M20016 | WASHER WT, SWT | 1 |
| 1 | 207182044 | Hex. Screw M8 X 20 | 1 |
| M534801362 | Screw | ||
| M537001402 | SCREW | ||
| M528801342 | PLUG | ||
| M615580812 | RING-GASKET | ||
| M510611002 | NUT | ||
| M617391218 | Shim WTLC | ||
| M5446699 | SLEEVE WT, SWT | ||
| M617394352 | SHIM 0.5 MM WT |
