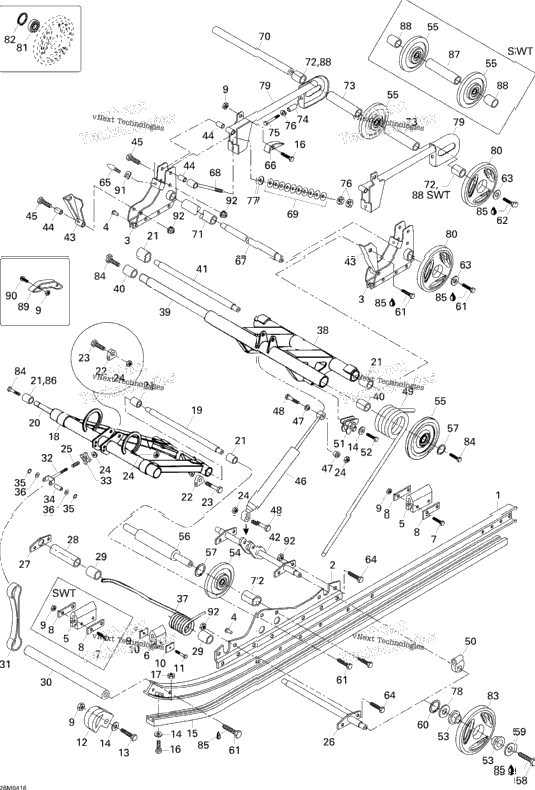

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | M5142864 | Runner | 2 |
| 1 | M5344811 | Rh Support | 1 |
| M5344810 | Lh Support | ||
| 1 | M539673 | Rh Support | 1 |
| 1 | M539672 | Lh Support | 1 |
| M544212 | RIVET | ||
| 2 | 570023100 | RUBBER STOPPER WT, WTLC | 2 |
| 4 | 570023100 | RUBBER STOPPER SWT | 4 |
| 2 | M5442328 | Rubber Stopper WT, WTLC | 2 |
| 4 | 207064044 | Hex. Screw M6 X 40 WT, WTLC | 4 |
| 8 | 207064044 | Hex. Screw M6 X 40 SWT | 8 |
| M548387 | Washer | ||
| 10 | M33200 | Nut M6 WT, WTLC | 10 |
| 14 | M33200 | Nut M6 SWT | 14 |
| M548470 | Plate WT, WTLC | ||
| 10 | 207063044 | Hex. Screw M6 X 30 WT, WTLC | 10 |
| 2 | 605348954 | Runner Protector | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 6 | 234061410 | Flat Washer 6 mm | 6 |
| 2 | M549582 | Runner Shoe | 2 |
| 4 | 207162044 | Hex. Screw M6 X 20 | 4 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| M5245898 | Front Arm Welded WT, WTLC | ||
| M5242808 | ARM-FRONT WELD SWT | ||
| 1 | M549695 | Axe *Axle | 1 |
| 1 | M542793 | Essieu *Axle WT, WTLC | 1 |
| 1 | M542794 | Essieu *Axle SWT | 1 |
| 6 | M542770 | Sleeve WT, WTLC | 6 |
| 4 | M542770 | Sleeve SWT | 4 |
| 4 | M548799 | Spring Support | 4 |
| 4 | 207004044 | Hex. Screw M10 X 40 | 4 |
| 7 | 233601416 | Elastic Locking Nut M10 X 1.5 | 7 |
| 1 | 414460600 | SPRING | 1 |
| M5345453 | Axle | ||
| M548469 | Plate Support | ||
| M5440313 | Sleeve | ||
| M548841 | Sleeve | ||
| M549718 | Cross Shaft | ||
| M5442604 | STOPPER STRAP | ||
| M5441643 | Bolt-Eye Adjuster | ||
| 1 | 572034000 | ADJUSTER KNOB | 1 |
| M5441645 | Pin | ||
| M41035 | Circlip | ||
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | M5241178 | Rh Spring WT, WTLC | 1 |
| 1 | M5241177 | Lh Spring WT, WTLC | 1 |
| M538798 | RH SPRING SWT | ||
| 1 | M538797 | Lh Spring SWT | 1 |
| 1 | M5343493 | Rear Arm Welded WT, WTLC | 1 |
| 1 | M5343096 | Rear Arm Welded SWT | 1 |
| 1 | M5343492 | Rear Cross Shaft WT, WTLC | 1 |
| M5340577 | REAR CROSS SHAFT SWT | ||
| 2 | M31046 | Slide Bearing | 2 |
| M549656 | AXLE | ||
| M5345454 | SHAFT | ||
| 1 | M5440350 | Rh Lever | 1 |
| 1 | M5440349 | Lh Lever | 1 |
| 6 | M545758 | Sleeve | 6 |
| 1 | 207084544 | Hex. Screw M8 X 45 | 1 |
| 503189996 | REAR SHOCK WT, SWT | ||
| 503189997 | SHOCK WTLC | ||
| M544417 | CUSHION | ||
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| M538806 | Rh Spring | ||
| M538805 | Lh Spring | ||
| M548804 | Spring Support WT, WTLC | ||
| M5442112 | SPRING SUPPORT SWT | ||
| 1 | 572030900 | RH ADJUST CAM | 1 |
| 1 | 572030800 | LH ADJUST CAM | 1 |
| 2 | 207161044 | HEX. SCREW M6 X 10 | 2 |
| 8 | 503189534 | Cushion | 8 |
| 2 | 503190213 | Wheel 139 Ass’Y WT, WTLC | 2 |
| 2 | 503190216 | Wheel 135 Ass’Y SWT | 2 |
| 3 | 503189568 | Wheel 165 Ass’Y WT, WTLC | 3 |
| 4 | 503189568 | Wheel 165 Ass’Y SWT | 4 |
| M549680 | Support Shaft | ||
| 4 | M31001 | Circlip *Circlip | 4 |
| M40336 | SCREW M8 X 20 | ||
| 1 | 503183100 | Washer | 1 |
| 4 | M31007 | Circlip | 4 |
| 10 | M40335 | Screw | 10 |
| M40050 | Hex. Screw With Nylon Patch | ||
| 1 | 503183300 | Washer | 1 |
| 1 | 207181644 | Hex. Screw M8 x 16 | 1 |
| M535455 | RUBBER STOPPER | ||
| M548262 | Protector | ||
| 1 | M541816 | Axe *Shaft | 1 |
| M5440377 | BOLT-EYE ADJUSTER | ||
| 42 | M25004 | Spring Plate | 42 |
| M5343284 | SHAFT WT, WTLC | ||
| M5341979 | Axe *Shaft SWT | ||
| M541815 | Sleeve | ||
| M546577 | Sleeve | ||
| M5443285 | SLEEVE WT, WTLC | ||
| M546668 | SLEEVE | ||
| M40239 | SCREW | ||
| 6 | 232006414 | Hex. Nut M10 X 1.5 WT, WTLC | 6 |
| 2 | 232006414 | Hex. Nut M10 X 1.5 SWT | 2 |
| 2 | M20011 | Washer | 2 |
| M31091 | SHIM | ||
| M5243222 | EXTENSION-RH | ||
| M5243223 | EXTENSION-LH | ||
| 4 | 503189566 | Wheel 165 Ass’Y | 4 |
| 1 | M31009 | Roulement Bille*Ball Bearing | 1 |
| 1 | M31002 | Circlip *Circlip | 1 |
| 4 | 503190212 | Wheel 139, Yellow WT, WTLC | 4 |
| 4 | 503190215 | Wheel 135 Ass’Y SWT | 4 |
| 4 | M40314 | Screw M10 X 30 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | M541528 | Spacer SWT | 2 |
| M5441980 | Sleeve SWT | ||
| 4 | M5440422 | Sleeve SWT | 4 |
| 2 | M5343191 | PROTECTOR SWT | 2 |
| 1 | M40064 | Hex. Screw SWT | 1 |
| 4 | M5440645 | Plaque Adj. *Plate-Adj. | 4 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 503189567 | Ball Bearing 6205 | 1 |
| 371901700 | CIRCLIP |
