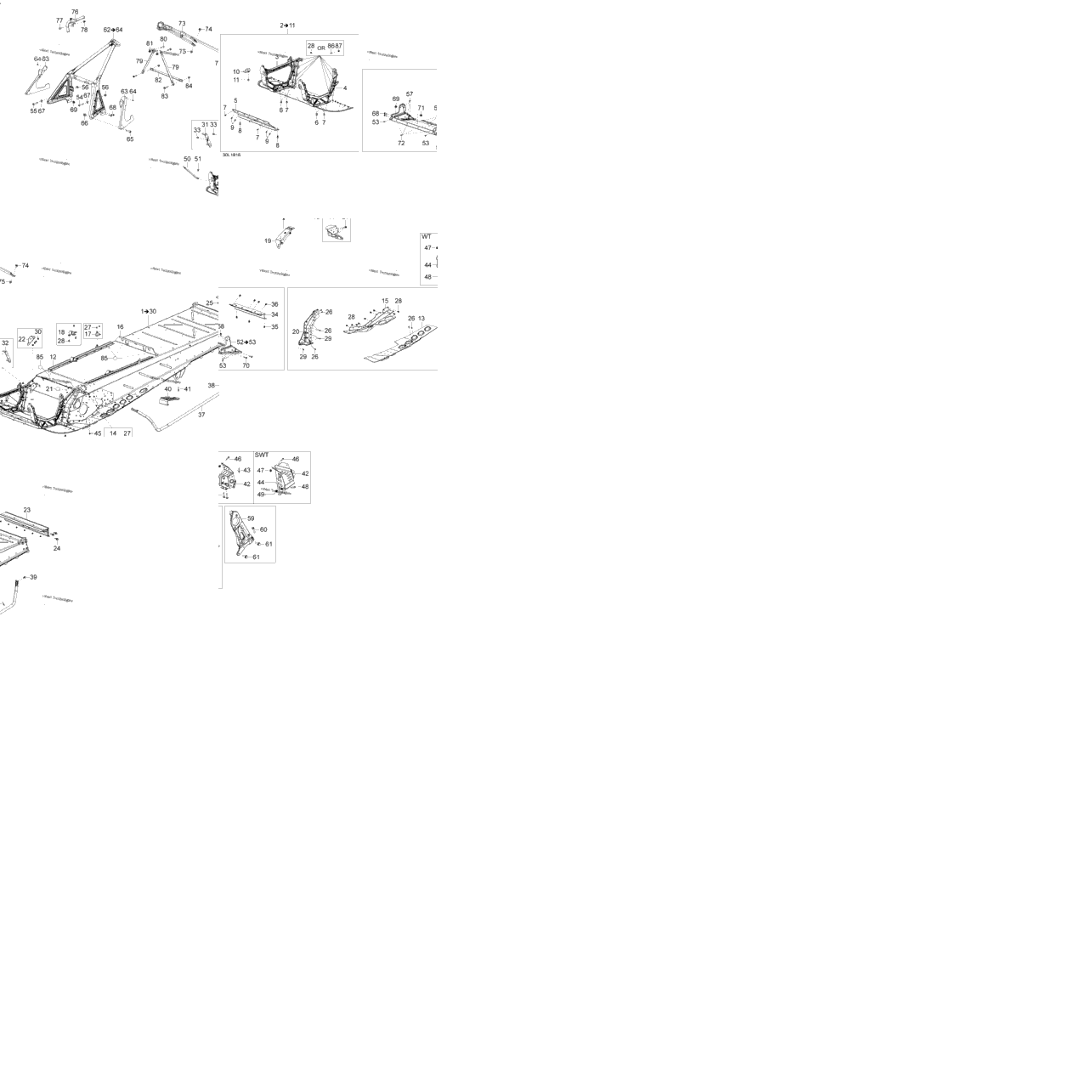

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 518329715 | FRAME XU 552 FC SC-5 BLACK Model WT | ||
| 518329722 | Frame Model SWT | ||
| 1 | 518328817 | Module E Includes 2 To 11 | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518325558 | LH Member | 1 |
| 1 | 518325818 | Front Member | 1 |
| 4 | 605636002 | Clinch Nut Hexsert M8 | 4 |
| 9 | 390909100 | Avex Rivet | 9 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 1 | 518328433 | Muffler Support | 1 |
| 1 | 293150163 | Rivet Hucklok | 1 |
| 2 | 518326107 | Fastening rail | 2 |
| 1 | 518328821 | LH Footrest Model WT | 1 |
| 518329380 | Footrest LH Model SWT | ||
| 1 | 518328822 | RH Footrest Model WT | 1 |
| 518329381 | Footrest RH Model SWT | ||
| 1 | 605355235 | FASTENING BRACKET Model WT | 1 |
| 1 | 518327884 | Fastening Bracket Model SWT | 1 |
| 1 | 518328016 | LH Drive Axle Cover Model WT | 1 |
| 1 | 518328014 | LH Drive Axle Cover Model SWT | 1 |
| 1 | 518328017 | RH Drive Axle Cover Model WT | 1 |
| 1 | 518328015 | RH Drive Axle Cover Model SWT | 1 |
| 518325986 | BATTERY SUPPORT PLATE Model WT | ||
| 518327003 | TUNNEL SUPPORT Model SWT | ||
| 2 | 518329164 | SEAT BOX BRACKET | 2 |
| 1 | 518326109 | SUPPORT TUBE BRACKET LH | 1 |
| 1 | 518326110 | SUPPORT TUBE BRACKET RH | 1 |
| 1 | 518326430 | Clinch Nut plate Model WT | 1 |
| 518328096 | CLINCH NUT PLATE Model SWT | ||
| 1 | 518325524 | LH Frame Corner Model WT | 1 |
| 1 | 518325643 | LH Frame Corner Model SWT | 1 |
| 1 | 518328024 | RH Frame Corner Model WT | 1 |
| 1 | 518325644 | RH Frame Corner Model SWT | 1 |
| 1 | 518325560 | Adhesive Patch | 1 |
| 1 | 518326520 | RH Support | 1 |
| 1 | 518328748 | Rear Profile Model WT | 1 |
| 1 | 518328749 | Rear Profile Model SWT | 1 |
| 6 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 6 |
| 6 | 293150174 | Hemlock Rivet, 6.4 mm | 6 |
| 1 | 390909100 | Avex Rivet | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 293150183 | Rivet | 1 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm | 1 |
| 518326123 | GEARBOX FRONT PLATE | ||
| 1 | 518326124 | Gearbox Rear Plate | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 518326719 | Engine Support | 1 |
| 3 | 293150163 | Rivet Hucklok | 3 |
| 4 | 390909200 | Avex Rivet | 4 |
| 1 | 518326963 | LH Footboard Support Tube Model WT | 1 |
| 1 | 518327595 | LH Footboard Support Tube Model SWT | 1 |
| 1 | 518326964 | RH Footboard Support Tube Model WT | 1 |
| 1 | 518327596 | RH Footboard Support Tube Model SWT | 1 |
| 9 | 390909100 | Avex Rivet Model WT | 9 |
| 8 | 390909100 | Avex Rivet Model SWT | 8 |
| 2 | 207662056 | Hex. Flange Screw M6 x 20 | 2 |
| 2 | 520001208 | Black Rear Footrest Model WT | 2 |
| 8 | 293150102 | Rivet 3/16" Model WT | 8 |
| 1 | 518328819 | Black, LH Toe Hook Model WT | 1 |
| 1 | 518328921 | Black, LH Toe Hook Model SWT | 1 |
| 1 | 518328820 | Black, RH Toe Hook Model WT | 1 |
| 1 | 518328922 | Black, RH Toe Hook Model SWT | 1 |
| 1 | 390909200 | Avex Rivet Model WT | 1 |
| 2 | 605636003 | Clinch Nut M6 Hexsert Model WT | 2 |
| 1 | 605636003 | Clinch Nut M6 Hexsert Model SWT | 1 |
| 2 | 414644300 | Black, Dart Model WT | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 250000717 | Torx Head Screw M6 X 16 Model WT | 4 |
| 2 | 250000717 | Torx Head Screw M6 X 16 Model SWT | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Model SWT | 2 |
| 1 | 514054846 | Spring Bracket | 1 |
| 1 | 518326213 | S Module Includes 52 To 53 | 1 |
| 12 | 390909200 | Avex Rivet | 12 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 6 | 390909100 | Avex Rivet | 6 |
| 5 | 390909200 | Avex Rivet | 5 |
| 1 | 518328434 | Pulley Support | 1 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 2 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 2 |
| 1 | 518327004 | Front Member Ass'y Includes 62 To 64 | 1 |
| 1 | 502007077 | LH Bumper Fastener | 1 |
| 1 | 502007078 | RH Bumper Fastener | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 | 6 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 6 |
| 2 | 224061201 | Flat Washer | 2 |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 | 8 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 1 | 518329105 | Upper Support Tube | 1 |
| 2 | 207182044 | Hex. Screw M8 X 20 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 512060451 | Tubing Model WT | 1 |
| 1 | 512061157 | Guide Tube Model SWT | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 Model WT | 1 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 Model SWT | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Model WT | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 518325115 | Center Column Support | 1 |
| 2 | 207662556 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
