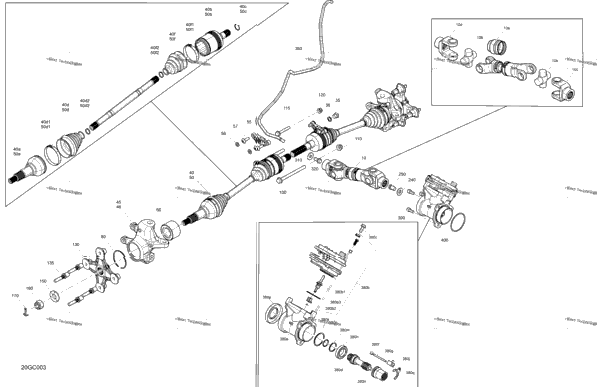

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705403293 | Front Drive Axle Includes 10 to 10d | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 2 | 715900435 | U-Joint Cross Kit | 2 |
| 1 | 715900497 | Fixed Yoke Joint | 1 |
| 1 | 715900498 | Yoke Joint | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705402021 | RH Homocinetic Joint Includes 40 to 40f2 | 1 |
| 1 | 705401344 | CV Joint | 1 |
| 1 | 715900602 | RH Plunging Joint | 1 |
| 1 | 705401349 | Circlip Joint | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Includes 40d to 40d2 | 1 |
| 1 | 715900282 | Oetiker Clamp | 1 |
| 1 | 715900283 | Oetiker Clamp, Small | 1 |
| 1 | 705401346 | Boot Kit, Differential Side Includes 40f to 40f2 | 1 |
| 1 | 715900284 | Oetiker Clamp, Large | 1 |
| 1 | 715900261 | Oetiker Clamp, Small | 1 |
| 1 | 705403197 | LH Knuckle | 1 |
| 1 | 705403199 | RH Knuckle | 1 |
| 1 | 705402022 | LH Homocinetic Joint Includes 50 to 50f2 | 1 |
| 1 | 715900603 | LH Plunging Joint | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Includes 50d to 50d2 | 1 |
| 1 | 705401346 | Boot Kit, Differential Side Includes 50f to 50f2 | 1 |
| 2 | 705402088 | Sensor Support | 2 |
| 4 | 234081410 | Flat Washer 8 mm | 4 |
| 4 | 250000874 | Torx Truss M8 X 25 | 4 |
| 2 | 293350150 | Ball Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 207685544 | Hex. Flange Screw M8 X 55 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 2 | 705503257 | Wheel Hub | 2 |
| 8 | 250300055 | Wheel Stud M10 X 1.25 | 8 |
| 2 | 250200171 | Conical Spring Washer M18 | 2 |
| 2 | 232291413 | Hex. Flange Castellated Nut M18 | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 1 | 250001039 | Hex Flange Screw M12 X 16 | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250001046 | Hex Flange Screw M10 X 20 S.Grip | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long | 1 |
| 1 | 705402360 | Machined Housing | 1 |
| 1 | 705402090 | Actuator Ass'y Includes 380b to 380b3 | 1 |
| 1 | 705400274 | Fork | 1 |
| 1 | 293370042 | Circlip | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 705401509 | Idler Shaft Gear | 1 |
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705402139 | Slider Includes 380j to 380j2 | 1 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 1 | 293250348 | Oil Seal | 1 |
| 1 | 705401553 | Shifter Lever Plate | 1 |
| 1 | 293300179 | O-Ring | 1 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 1 | 293300091 | O-Ring | 1 |
