Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

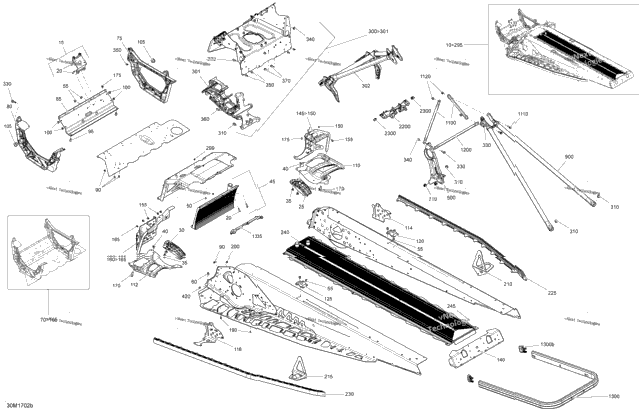

| 415130118 | GULFSTREAM FRAME FREERIDE 137 Includes 1 to 295 | ||
| 1 | 518325943 | MAG Engine Support Includes 15 to 20 | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 1 | 518326485 | Front Radiator | 1 |
| 5 | 293150203 | Rivet Avibulb 3/16 | 5 |
| 2 | 293150119 | Hemlock Rivet, 6.5 mm | 2 |
| 1 | 293150174 | Hemlock Rivet, 6.4 mm | 1 |
| 1 | 518327567 | E Module Includes 70 to 105 | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518326796 | LH Member | 1 |
| 1 | 518326198 | Front Member | 1 |
| 6 | 293150144 | Stavex Rivet | 6 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 2 | 505073317 | Leg Cushion | 2 |
| 1 | 518326937 | RH Reinforcement, Running Board | 1 |
| 1 | 518326938 | LH Reinforcement, Running Board | 1 |
| 1 | 518326616 | RH Front Suspension Retainer | 1 |
| 1 | 518326617 | LH Front Suspension Retainer | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base | 1 |
| 2 | 250300038 | Clinch Stud | 2 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518328940 | RH Stirup Includes 145 to 150 | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 518328528 | LH Stirup Includes 160 to 165 | 1 |
| 3 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 3 |
| 1 | 293730042 | Full Moon Dart 5 mm | 1 |
| 4 | 293450268 | Insert M5 X 0.8 | 4 |
| 28 | 293150203 | Rivet Avibulb 3/16 | 28 |
| 4 | 390909100 | Avex Rivet | 4 |
| 10 | 293150144 | Stavex Rivet | 10 |
| 12 | 293150146 | Henrob Rivet | 12 |
| 8 | 293150119 | Hemlock Rivet, 6.5 mm | 8 |
| 1 | 518326954 | Rh Suspension Bracket | 1 |
| 1 | 518326955 | LH Suspension Bracket | 1 |
| 1 | 518327200 | RH Roller | 1 |
| 518327201 | LH ROLLER | ||
| 1 | 518327588 | Rear Radiator 137'' Includes 240 to 245 | 1 |
| 1 | 293150144 | Stavex Rivet | 1 |
| 4 | 293150203 | Rivet Avibulb 3/16 | 4 |
| 3 | 390402400 | Pop Rivet 3/16" | 3 |
| 1 | 518328322 | Cross Member S Module Includes 300 to 302 | 1 |
| 1 | 518327487 | Front Suspension Support | 1 |
| 1 | 518327565 | Front Member | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 250000822 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 6 | 293150191 | Monobolt Rivet, 4.8 mm | 6 |
| 2 | 293150182 | Monobolt Rivet 6.4 | 2 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 3 | 293730053 | Black Dart 5 mm | 3 |
| 1 | 518327133 | Driven Pulley Support Includes 500 to 500a | 1 |
| 1 | 518327460 | Driven Pulley Support | 1 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 1 | 518326559 | Rear Member | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 518325115 | Center Column Support | 1 |
| 1 | 518326979 | Black Rear Bumper 137'' North America | 1 |
| 518327802 | Black Rear Bumper Ass'y Europe | ||
| 1 | 518327803 | Black Rear Bumper Europe | 1 |
| 1 | 520000965 | Black RH Cap Europe | 1 |
| 1 | 520000964 | Black LH Cap Europe | 1 |
| 2 | 520000840 | BLACK CAP North America | 2 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 517124300 | Washer | 1 |
| 1 | 518327145 | Sub A Support | 1 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 10 |
| 6 | 224061201 | Flat Washer | 6 |
