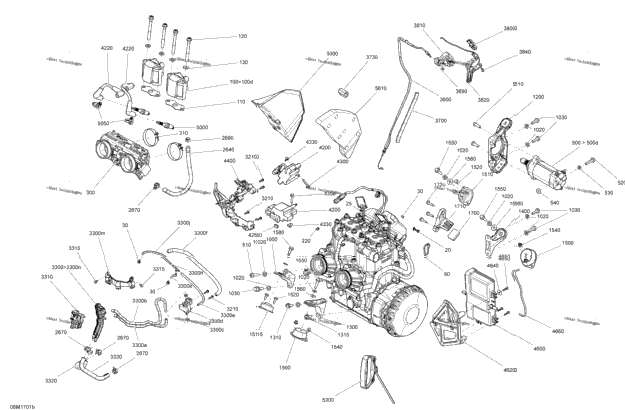

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515177770 | Locker | 1 |
| 2 | 732610072 | Push Nut | 2 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 512061054 | Fuel Injector Includes 100 to 100d | 2 |
| 1 | 415129497 | Crush Ring | 1 |
| 1 | 415129498 | O-Ring | 1 |
| 1 | 415129499 | O-Ring | 1 |
| 1 | 415129942 | Fuel Injector Cover | 1 |
| 2 | 420430930 | Gasket | 2 |
| 4 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 | 4 |
| 4 | 234001410 | Flat Washer 10 mm | 4 |
| 2 | 420924724 | Hose Nipple | 2 |
| 1 | 420889202 | Throttle Body | 1 |
| 2 | 512060943 | Gemi Clamp | 2 |
| 1 | 515177389 | Starter Model High Altitude | 1 |
| 1 | 515178187 | Electric Starter Model Sea-Level | 1 |
| 1 | 415129441 | Clutch Kit | 1 |
| 1 | 415129333 | Brush Kit | 1 |
| 2 | 415129341 | Starter Bolt | 2 |
| 1 | 415129342 | O-Ring Kit | 1 |
| 3 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip with Electric Start | 3 |
| 1 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip with Electric Start | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm with Electric Start | 1 |
| 1 | 512060478 | Rear Support, PTO | 1 |
| 11 | 250200146 | Conical Spring Washer M8 | 11 |
| 5 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 5 |
| 1 | 512060714 | Front Support, PTO | 1 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 2 | 512060729 | Rubber Mount | 2 |
| 1 | 512060387 | Rubber Mount | 1 |
| 1 | 512060448 | Rubber Mount | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207683044 | Hex. Flange Screw M8 X 30 | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 1 | 250000796 | Hex. Flange Screw M8 X 1.25 X 25 | 1 |
| 1 | 512060627 | Stopper | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 512060944 | Bleeder's Collector Outlet Hose | 1 |
| 5 | 293650214 | Norma Spring Clamp | 5 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 6 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 6 |
| 1 | 512060692 | Manifold Includes 3300 to 3300n | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 2 | 293650234 | Crimp Clamp | 2 |
| 1 | 512061078 | Solenoid Valve | 1 |
| 1 | 219704352 | Was 420660574 Pressure Hose 280 mm | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 293710068 | T-Fitting | 1 |
| 1 | 512060827 | Hose Support | 1 |
| 1 | 512060930 | SPRING | 1 |
| 1 | 512060822 | Manifold Support | 1 |
| 2 | 210251150 | Hex Flange Screw M5 X 11 | 2 |
| 1 | 512060695 | LH Formed Hose | 1 |
| 1 | 512060694 | RH Formed Hose | 1 |
| 1 | 512060667 | Throttle Cable | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 512060313 | Protector | 1 |
| 1 | 512060859 | Upper Housing | 1 |
| 1 | 512060860 | Lower Housing | 1 |
| 1 | 512061051 | Handle Ass'y (built-in heating element) | 1 |
| 2 | 732601143 | Flange Screw | 2 |
| 2 | 512060953 | Ignition Coil | 2 |
| 2 | 512061126 | Ignition Cable, 177mm long | 2 |
| 2 | 710000992 | Clip | 2 |
| 3 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 3 |
| 3 | 293100003 | Nut Welded, M6 | 3 |
| 1 | 512060888 | Ignition Coils Support | 1 |
| 1 | 512060756 | Calibrated Module | 1 |
| 1 | 512060858 | Calibrated Module Support | 1 |
| 1 | 250200040 | Flat Washer | 1 |
| 3 | 250000760 | Torx Screw Truss Head K50X20 T20 | 3 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 415129484 | SPARK PLUG NGK PFR7AB | ||
| 2 | 512060993 | Clamp | 2 |
| 1 | 512060136 | Starter Grip with Manuel Start | 1 |
| 1 | 512060847 | Noise Shield | 1 |
| 1 | 512060958 | Inner Acoustic Foam | 1 |
